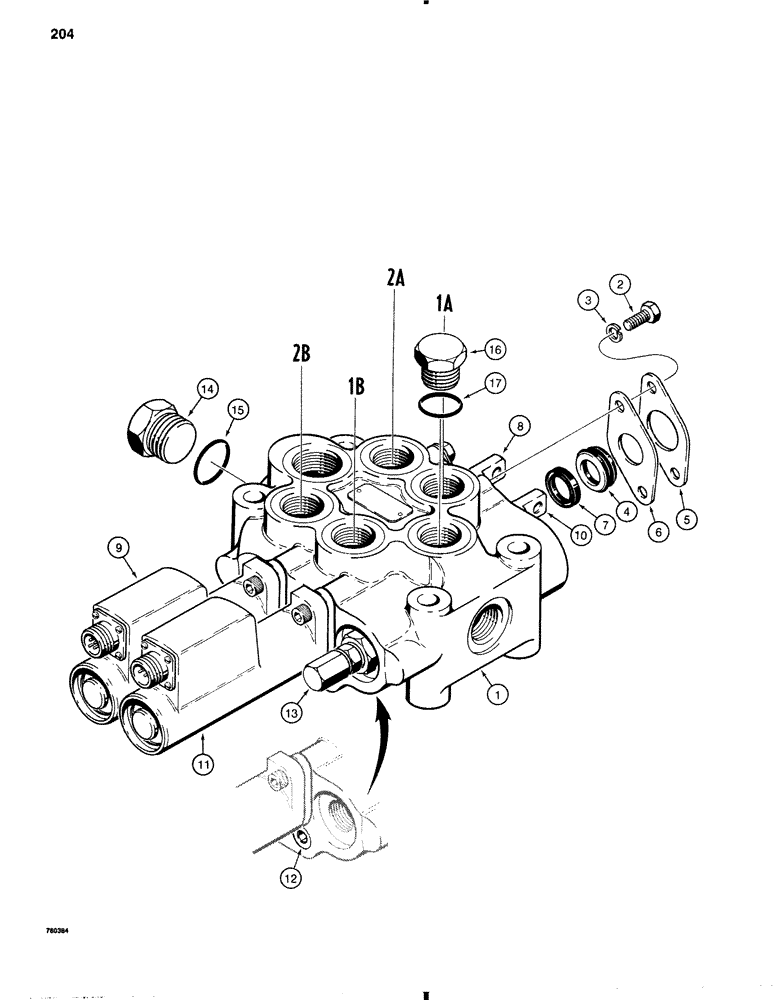

Запчасти Case W11 (204) - TWO SPOOL LOADER CONTROL VALVE (08) - HYDRAULICS

L78075

VALVE

CONTROL VALVE - loader, two spool, Hydreco No. MVT025RF23

1шт.

L104937

VALVE

CONTROL VALVE - loader, two spool, Hydreco No. MVT025RF31, Incls. Ref. 1-17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

D82728

RING

WIPER - spool

2шт.

5

D82721

PLATE

- retaining, outer

2шт.

6

D82720

PLATE ASSY.

PLATE - retaining, inner

2шт.

7

D82727

SEAL

- spool

4шт.

8

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list Fig. 208

1шт.

9

D80680

DETENT

ASSEMBLY - lift, parts list Fig. 210

1шт.

10

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket tilt, parts list Fig. 208

1шт.

11

D80693

DETENT

ASSEMBLY - bucket tilt, parts list Fig. 212

1шт.

12

REF

INSTRUCTION

CIRCUIT RELIEF VALVE ASSEMBLY - parts list Fig. 214

2шт.

13

REF

INSTRUCTION

MAIN RELIEF VALVE ASSEMBLY - parts list Fig. 214

1шт.

14

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 15 Hex Hd, 1 5/16"-12 ORB

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. Ref. 17 Hex Hd, 1 1/16"-12 ORB

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.
