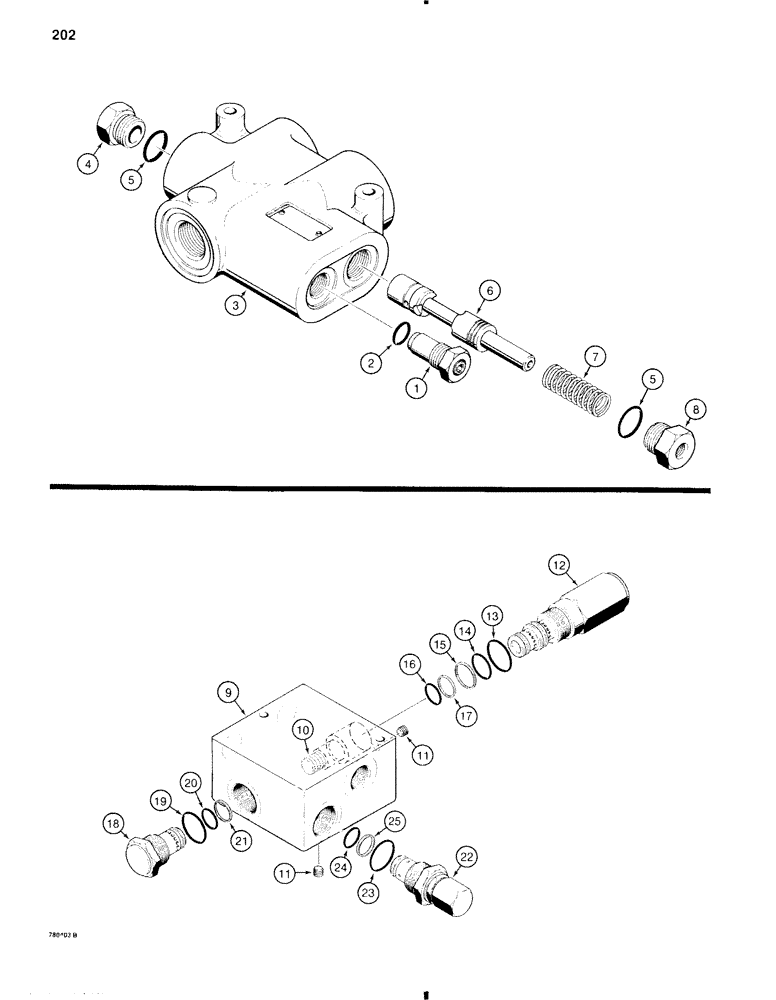

Запчасти Case W11 (202) - FLOW CONTROL VALVE (08) - HYDRAULICS

L76814

VALVE

FLOW CONTROL VALVE ASSEMBLY - Char Lynn No. VLE401B1A00A, if used

1шт.

L105296

VALVE

FLOW CONTROL VALVE ASSEMBLY - Char Lynn No. 606-1047-002-CF00, if used, Incls. P/N N6901 & Ref. 1 & 2

1шт.

N6901

CARTRIDGE

RELIEF VALVE ASSEMBLY - flow control valve, Incls. Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY - relief valve

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- relief valve

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - flow control valve

1шт.

4

S114011

PLUG

- hex head

1шт.

5

S114010

O-RING

- plug

2шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve

1шт.

7

D82777

SPRING

- spool

1шт.

8

S114009

PLUG

- spring retaining

1шт.

L103844

VALVE

UNLOADING VALVE - hydraulic circuit, Incls. Ref. 9-25

1шт.

9

N6534

VALVE BODY

BODY - unloading valve, Incls. Ref. 10

1шт.

10

N6535

PLUG

- orifice, unloading valve

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - valve housing, unloading

2шт.

D87152

VALVE

CARTRIDGE ASSEMBLY - unloading valve, Incls. Ref. 12-17

1шт.

12

NSS

NOT SOLD SEPARAT

CARTRIDGE - unloading valve

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer, unloading valve

1шт.

14

A65918

O-RING,0.551" ID x 0.691" OD

- center, unloading valve

1шт.

15

L30012

RING

BACKUP RING - center O-ring, unloading valve

1шт.

16

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner, unloading valve

1шт.

17

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - inner O-ring, unloading valve

1шт.

D87154

VALVE

CHECK VALVE ASSEMBLY - unloading valve, Incls. Ref. 18-21

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE - check valve, unloading

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer, unloading valve

1шт.

20

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner, unloading valve

1шт.

21

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - inner O-ring, unloading valve

1шт.

D87153

VALVE

RELIEF VALVE ASSEMBLY - unloading valve, Incls. Ref. 22-25

1шт.

22

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief valve, unloading

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer, unloading valve

1шт.

24

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner, unloading valve

1шт.

25

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - inner O-ring, unloading valve

1шт.
