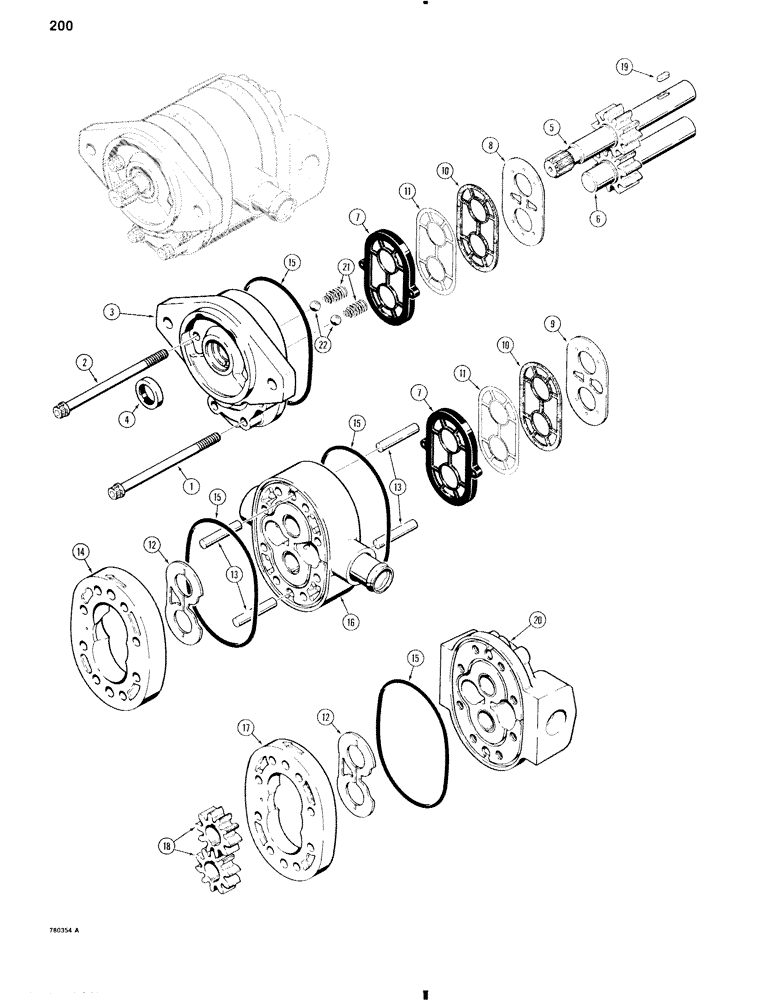

Запчасти Case W11 (200) - L77150 HYDRAULIC PUMP (08) - HYDRAULICS

L77150

PUMP, HYDRAULIC

PUMP ASSEMBLY - Cessna No. 24582-LAF, Incls. Ref. 1-22

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - Ferry head, 3/8" - 16 x 5-1/4", grade 8

4шт.

2

166-190

12 PT SCREW,Flg, 3/8" - 16 x 5 1/2", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 5-1/2", grade 8

4шт.

3

D80499

PLATE

COVER - drive shaft end, includes bushings

1шт.

4

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

Part of Seal Kit, P/N D80502

1шт.

5

D80505

GEAR

DRIVE GEAR - loader/steering circuit

1шт.

6

D80506

GEAR

IDLER GEAR - loader/steering circuit

1шт.

7

H273912

SEAL

- diaphragm

2шт.

Part of Seal Kit, P/N D80502

1шт.

8

H335331

DIAPHRAGM

DIAPHRIAGM - loader/steering circuit

1шт.

Part of Seal Kit, P/N D80502

1шт.

9

D80507

DIAPHRAGM

DIAPHRIAGM - brake circuit

1шт.

Part of Seal Kit, P/N D80502

1шт.

10

H260927

GASKET

- pump

2шт.

Part of Seal Kit, P/N D80502

1шт.

11

H260935

GASKET

PROTECTOR - gasket

2шт.

Part of Seal Kit, P/N D80502

1шт.

12

A45358

PLATE

- wear

2шт.

Part of Seal Kit, P/N D80502

1шт.

13

D52925

DOWEL

PIN -, Serial Range: carrier-covers

4шт.

14

R25508

BODY

HOUSING - gear, loader/steering circuit

1шт.

15

H756221

O-RING,4.987" ID x 5.193" OD

- pump seal

4шт.

Part of Seal Kit, P/N D80502

1шт.

16

D80501

ADAPTER

CARRIER - bushing, includes bushings

1шт.

For new style see w11b cat Fig.8-30

1шт.

17

H210724

BODY

HOUSING - gear, brake circuit

1шт.

18

H233478

GEAR

- brake circuit

2шт.

19

H226878

KEY

-, Serial Range: gear-shaft

1шт.

20

D80500

PLATE ASSY.

COVER - port end, includes bushings

1шт.

21

D31403

SPRING

- check ball

2шт.

Part of Seal Kit, P/N D80502

1шт.

22

211-312

BALL,13/32" Dia

- check

2шт.

Part of Seal Kit, P/N D80502

1шт.

D80502

KIT

- seal, Includes: Ref. nos. 4, 7, 8, 9, 10, 11, 12, 15, 21, and 22

1шт.
