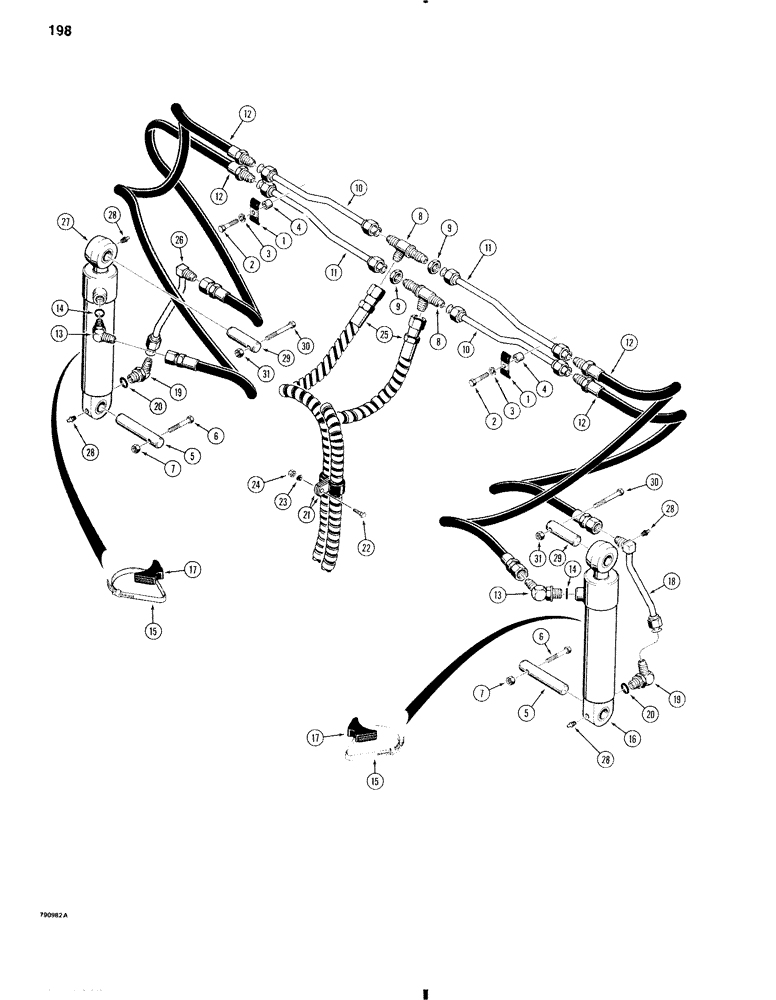

Запчасти Case W11 (198) - CLAM BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D40236

CLAMP

- tube

2шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

D33552

BUSHING

SPACER - clamp

2шт.

5

D51393

PIN,31.72mm OD x 152.4mm L

Clam cylinder, lower

2шт.

6

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex head, 3/8" - 16 NC x 2-3/4"

2шт.

7

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

8

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

- bulkhead, 7/8" - 14 NC

2шт.

9

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

10

D67081

TUBE

- horizontal, short

2шт.

11

D67083

TUBE

- horizontal, long

2шт.

12

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- tube to clam cylinder, 26" (660 mm) long

4шт.

13

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, rod end, clam cylinder, Incls. Ref 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

15

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - clam cylinders

2шт.

16

G101190

CYLINDER ASSY.

CYLINDER - clam, right-hand, parts list Fig. 220

1шт.

16

87454017R

REMAN-HYD CYLINDER

W11 CASE UNIT LOADER, CYLINDER, clam, right-hand, Reman for New PN G101190

1шт.

16

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

17

D38648

BLOCK

SPACER - rubber

2шт.

18

D51621

TUBE

- cylinder, right-hand

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Incls. Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

21

R14668

CLAMP

- hose, loader, Serial Range: frame-bucket

2шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

25

L105958

HOSE

- loader frame to bucket, 60" (1524 mm) long

2шт.

26

D51619

TUBE

- cylinder, left-hand

1шт.

27

G101191

CYLINDER ASSY.

CYLINDER - clam, left-hand, parts list Fig. 220

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

29

D51392

PIN,31.72mm OD x 101.6mm L

- cylinder, rod end

2шт.

30

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2"

2шт.

31

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.
