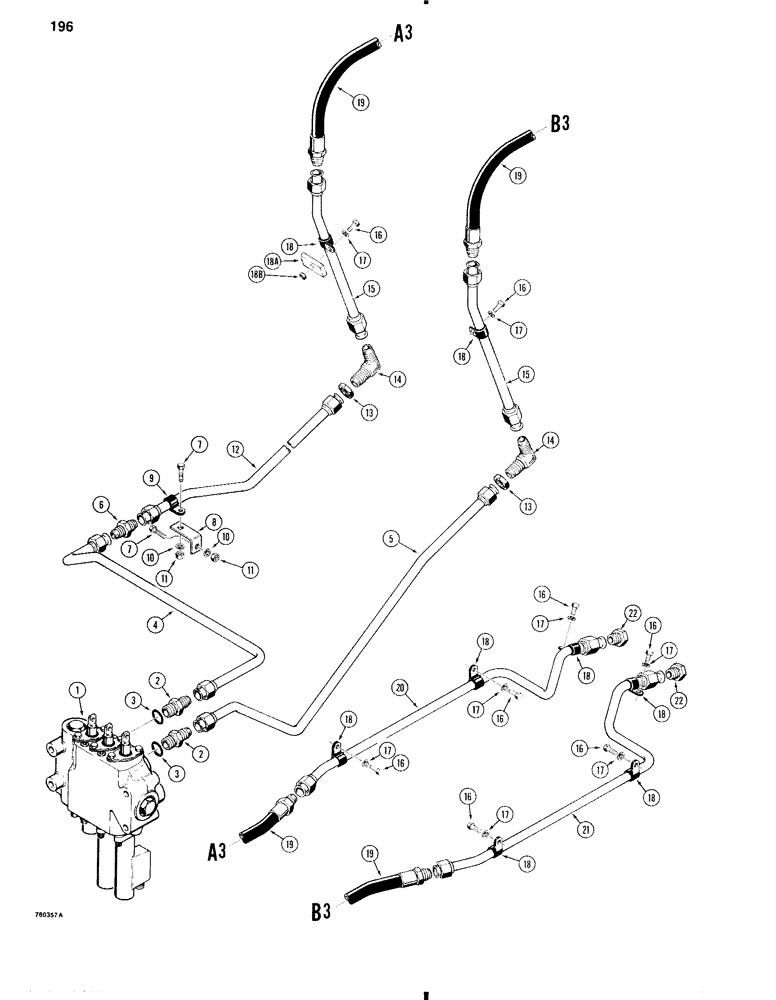

Запчасти Case W11 (196) - LOADER AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, Fig. 207

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, Incls. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

L77461

TUBE ASSY.,0.625" OD

TUBE - left-hand, from valve

1шт.

5

L78705

TUBE,0.625" OD

- right-hand, from valve

1шт.

6

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

FITTING - straight

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

8

L77438

SUPPORT

BRACKET

1шт.

9

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

hose, early production

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

L77459

TUBE ASSY.,0.625" OD

TUBE - left-hand side only

1шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

14

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, bulkhead

2шт.

15

L77457

TUBE ASSY.,0.625" OD x 16.42, 2.8" L

TUBE - fastens to front cover

2шт.

16

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1/2"

6-8шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", used with 18A and 18B

2шт.

17

92-6

LOCK WASHER,3/8"

8шт.

18

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- tube, hose, early production

8шт.

18a

A19305

SPACER

- tube clamp, if used

2шт.

18b

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC, if used

2шт.

19

D32288

HOSE ASSY.

HOSE - 36" (914 mm) long

2шт.

20

L77467

TUBE - left-hand, used before SN 913868 except for 913812-913817,913834, 913835, 913851 and 913854-913857 0.625" OD

1шт.

20

L101329

TUBE ASSY.,0.625" OD

TUBE - left-hand, used on SN 913812-817, 913834, 913835,913851, 913854-913857, 913868 and after

1шт.

21

L77465

TUBE - right-hand, used before SN 913868 except for 913812-913817, 913834, 913835, 913851 and 913854-913857 0.625" OD

1шт.

21

L101327

TUBE,0.625" OD

- right-hand, used on SN 913812-817, 913834, 913835, 913851, 913854-913857, 913868 and after

1шт.

22

218-776

PLUG,7/8"-14, 37 Degree

- hex head, 7/8" - 14 NF

2шт.
