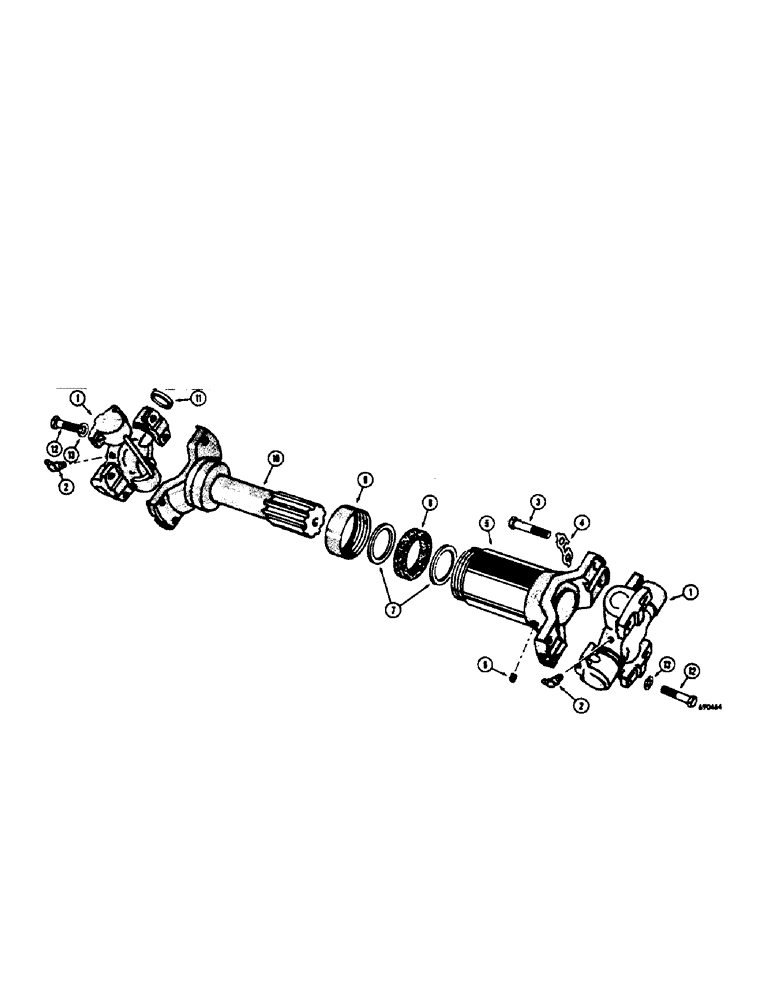

Запчасти Case W10E (216[2]) - A17296 TRANSMISSION DRIVE SHAFT (06) - POWER TRAIN

A17296

SHAFT

DRIVE SHAFT - transmission, Includes: Ref. 1 - 11

1шт.

1

A18382

SPIDER

KIT - repair, spider and bearing

2шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degrees, 1/4" N.F. taper

2шт.

3

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT -, Serial Range: spider-shaft

8шт.

4

L11835

LOCKING PLATE

PLATE - bolt lock

4шт.

5

A18381

YOKE

- drive shaft

1шт.

6

A18392

PLUG - pipe (Special)

1шт.

7

A18387

WASHER

- seal retainer

2шт.

8

A18390

WASHER

SEAL - dust, felt

1шт.

9

A18388

CAP

- dust seal

1шт.

10

A18384

TUBE AND YOKE - drive shaft

1шт.

11

A18389

WASHER

- cork, spider

8шт.

12

A17298

BOLT,Hex, 3/8" x 1 11/16"

- spider to transmission and converter

8шт.

13

92-6

LOCK WASHER,3/8"

8шт.
