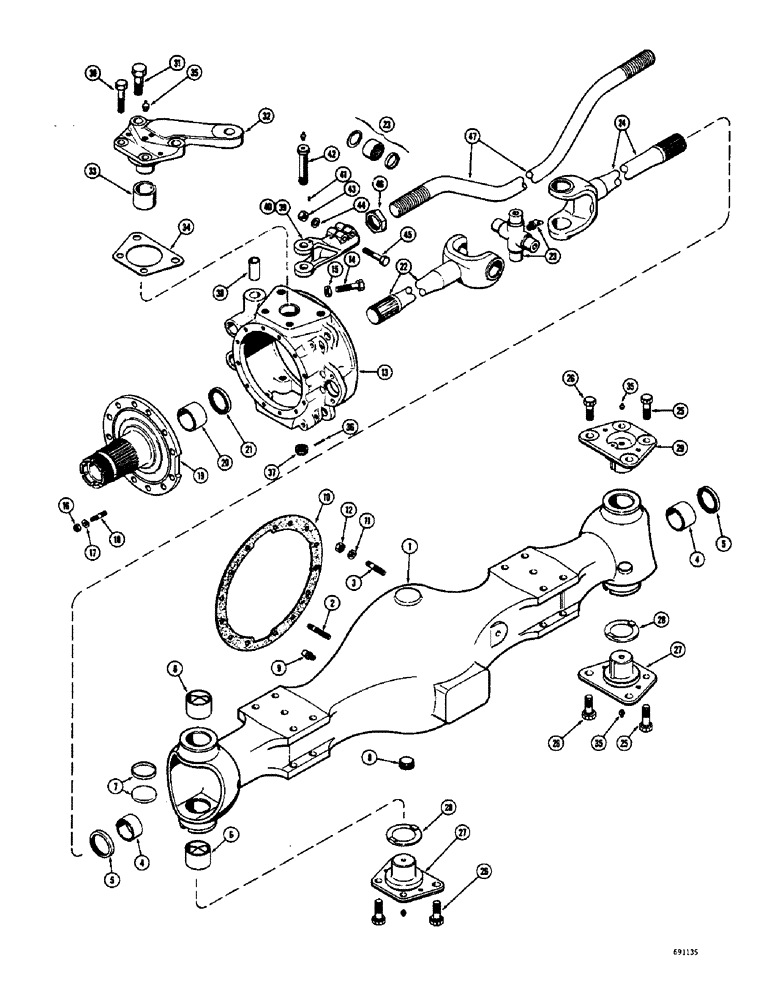

Запчасти Case W10E (206) - L15394 REAR STEERING AXLE, AXLE HOUSING AND STEERING (06) - POWER TRAIN

L15394

AXLE ASSEMBLY - rear steering, cpt. (PS-155 HX-2), Includes: Ref. 1 - 47

1шт.

L30503

HOUSING ASSEMBLY - axle, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

L30673

STUD

- differential carrier to housing, 3" long

4шт.

3

A13130

STUD

- differential carrier to housing, 2-5/8"

10шт.

4

A25234

BUSHING,57.63mm ID x 65.2mm OD x 31.75mm L

- support, universal joint and shaft

2шт.

5

L30578

OIL SEAL

- oil, universal joint and shaft

2шт.

6

L30579

BUSHING,62.94mm ID x 69.32mm OD x 46.74mm L

- pivot, steering housing

4шт.

7

L34009

PLUG

COVER - pivot bushing

4шт.

8

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - pipe, sq. socket hd., 1-1/4"

1шт.

9

A12928

BREATHER

- oil, axle housing

1шт.

10

A12943

GASKET

- differential carrier to axle housing

1шт.

11

L30674

WASHER

- carrier to housing stud

14шт.

12

131-74

LOCK NUT,1/2"-20

NUT - hex., lock (1/2" - 20 NF)

14шт.

13

L30603

HOUSING - steering, joint

2шт.

14

113-651

BOLT

- 5/8" x 3-1/4" N.C. hex. (Steer. housing stop)

2шт.

15

L30570

NUT

- housing stop bolt

2шт.

16

A15033

LOCK NUT

- retainer, Serial Range: spindle-housing

24шт.

17

A15036

WASHER

- retainer nut

24шт.

18

L30575

STUD -, Serial Range: spindle-housing

24шт.

L30605

SPINDLE

ASSEMBLY - wheel hub, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

SPINDLE - wheel hub

1шт.

20

L30581

BUSHING,57.73mm ID x 65.2mm OD x 44.45mm L

- support, universal joint

1шт.

21

L30578

OIL SEAL

- oil, spindle and universal joint

1шт.

22

A25149

YOKE

AND SHAFT - outer

2шт.

23

A25151

KIT

- repair, spider

2шт.

24

L30775

YOKE

AND SHAFT - inner

2шт.

25

L30576

BOLT (SPREADER)

BOLT - steering housing cap (Outer)

6шт.

26

L30571

BOLT (SPREADER)

BOLT - steering housing cap (Inner)

6шт.

27

L30601

CAP

- steering housing, lower

2шт.

28

L30583

WASHER,63.5mm ID x 85.72mm OD x 5.21mm Thk

- thrust bearing

1шт.

29

L30600

X

CAP - steering housing, upper (R.H.)

1шт.

30

L30576

BOLT (SPREADER)

BOLT - steering arm to housing (Outer)

2шт.

31

L30572

BOLT (SPREADER)

BOLT - steering arm to housing (Inner)

2шт.

L30608

ARM

ASSEMBLY - steering, L.H., Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

ARM - steering, L.H.

1шт.

33

L30580

SLEEVE CYLINDER

BUSHING - steering arm

1шт.

34

L30590

SHIM

- arm to housing (.003")

1шт.

34

L30591

SHIM

- arm to housing (.005")

1шт.

34

L30592

SHIM

- arm to housing (.020")

1шт.

35

A50096

VALVE

- relief, steering cap

4шт.

36

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

37

A13110

NUT

- hex., slotted

2шт.

38

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- yoke bolt

2шт.

39

A13004

YOKE

- tie rod, L.H.

1шт.

40

A13005

YOKE

- tie rod, R.H.

1шт.

41

A13111

AXLE PIN

PIN - lock, yoke bolt

2шт.

42

A13107

BOLT

- yoke to steer, arm (Inc. 219-1 grease fit.)

2шт.

43

129-545

NUT,1/2"-20, G8

4шт.

44

92-8

LOCK WASHER,1/2"

4шт.

45

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

- 1/2" x 2-3/4" N.F. hex.

4шт.

46

A13115

LOCK NUT

- tie rod (R.H.)

1шт.

47

L30612

ROD

- tie, steering

1шт.

116-702

BOLT

BOLT - 3/4" x 8" N.F. hex.

8шт.

131-186

LOCK NUT,3/4"-16, GB

- 3/4" N.F. hex.

8шт.
