Запчасти Case W10E (198) - L15395 REAR STEERING AXLE, REAR BRAKE DRUM AND LININGS, REAR (06) - POWER TRAIN

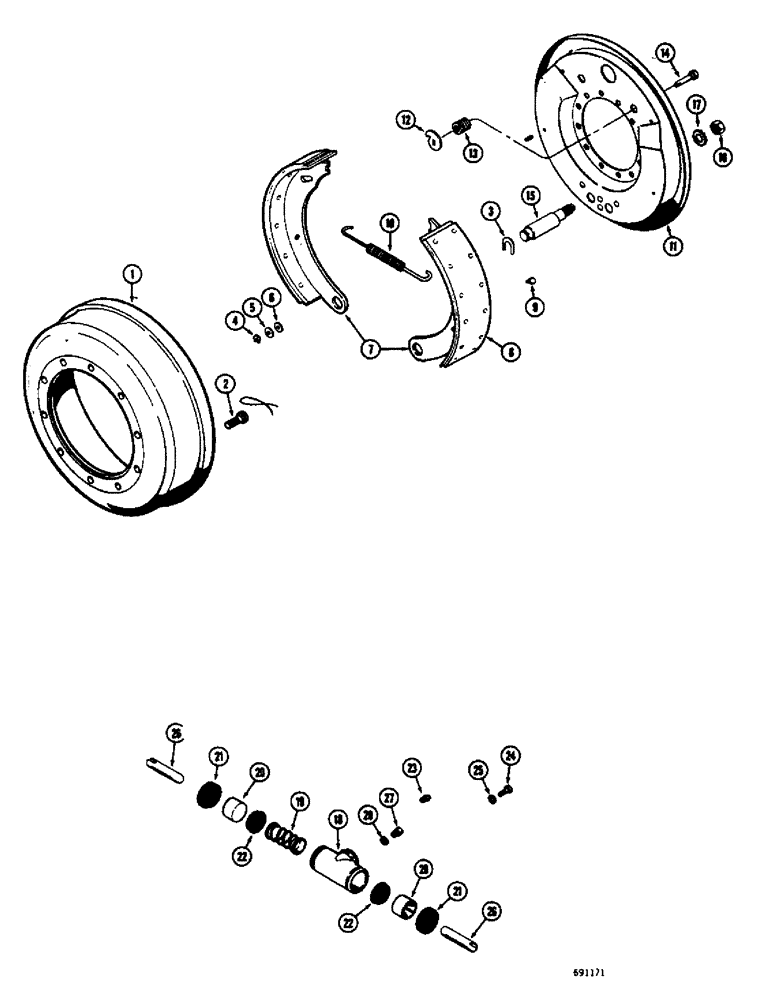

Схема запчастей Case W10E - (198) - L15395 REAR STEERING AXLE, REAR BRAKE DRUM AND LININGS, REAR (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L15395

STEERING AXLE

AXLE ASSEMLBY - rear steering, cpt. (PS-101HX-54), Includes: Ref. 1 - 17

1шт.

1

A13001

DRUM

- brake, rear

2шт.

2

A14962

BOLT,5/8" x 1 1/2", Gr 8

- brake drum to wheel hub

20шт.

3

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

WASHER - special, anchor pin

4шт.

4

A13127

WASHER

- special, guide pin

8шт.

5

A13128

WASHER

- spring, guide pin

16шт.

6

A13129

WASHER

- special, guide pin

16шт.

A12998

X

SHOE AND LINING - brake, Includes: Ref. 7 - 9

4шт.

7

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

A13000

KIT

- brake lining, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

9

A12999

SPARE PART

RIVET - lining

14шт.

10

A13002

SPRING

- brake shoe return

2шт.

A12986

PLATE

ASSEMBLY - backing, Includes: Ref. 11 - 14

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

12

A13201

SHOE

CAM - adjusting

1шт.

13

A13023

SPRING

- adjusting cam

1шт.

14

A12997

CAPTIVE WASHER SCREW

BOLT - adjusting cam

1шт.

15

A13024

PIN,29.39mm OD x 68.25mm L

- anchor

4шт.

16

A13134

NUT

- anchor pin

4шт.

17

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

4шт.

A12985

CYLINDER

ASSEMBLY - brake, rear, Includes: Ref. 18 - 22

2шт.

18

NSS

NOT SOLD SEPARAT

BODY - brake cylinder, rear brake wheel cylinder

1шт.

19

A13043

SPRING

- piston return, rear brake wheel cylinder

1шт.

20

A13044

PISTON ASSY.

PISTON - cylinder, rear brake wheel cylinder

2шт.

A12865

KIT

- repair, cylinder, rear brake wheel cylinder, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

BOOT - cylinder, rear brake wheel cylinder

2шт.

22

NSS

NOT SOLD SEPARAT

CUP - cylinder, rear brake wheel cylinder

2шт.

23

A12924

SCREW,7/16" - 20

- brake bleeder, rear brake wheel cylinder

2шт.

24

113-215

X

BOLT - 3/8" x 1" N.C. hex., rear brake wheel cylinder

4шт.

25

92-6

LOCK WASHER,3/8"

rear brake wheel cylinder 3/8"

4шт.

26

A12983

ROD

- push, rear brake wheel cylinder

4шт.

27

A12989

ADAPTER

CONNECTOR - brake lines, rear brake wheel cylinder

2шт.

28

A12988

GASKET

- connector, rear brake wheel cylinder

2шт.

Выбрано товаров: 34
