Запчасти Case W10E (164) - D22660 CONVERTER OIL FILTER (06) - POWER TRAIN

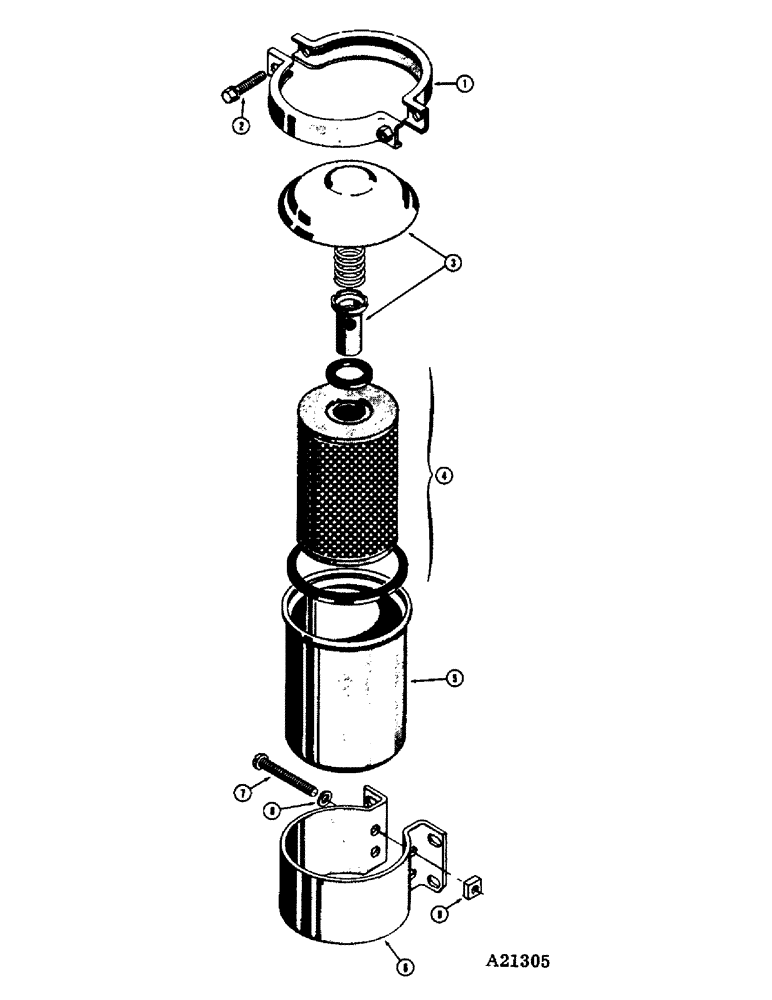

Схема запчастей Case W10E - (164) - D22660 CONVERTER OIL FILTER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D22660

AIR INTAKE TUBE

FILTER ASSEMBLY - converter oil, Includes: Ref. 1 - 9

1шт.

1

D22658

BOLT

CLAMP - cover

2шт.

2

D22659

BOLT (SPREADER)

BOLT - cover clamp

2шт.

3

D22653

COVER

ASSEMBLY - filter (Includes relief valve)

1шт.

4

A13211

FILTER, ENGINE OIL

ELEMENT KIT - filter

1шт.

5

D22654

SPARE PART

BODY - filter element

1шт.

6

A13210

BRACKET - filter mounting

1шт.

7

75-540

SCREW

- machine, rd. hd., 5/16" x 2-1/2"

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

25-225

SQUARE NUT,Sq, 5/16"-24

- 5/16" N.C., square

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Filter to bracket Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

92-6

LOCK WASHER,3/8"

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

Выбрано товаров: 13
