Запчасти Case W10E (110) - POWER STEERING HYDRAULICS (05) - STEERING

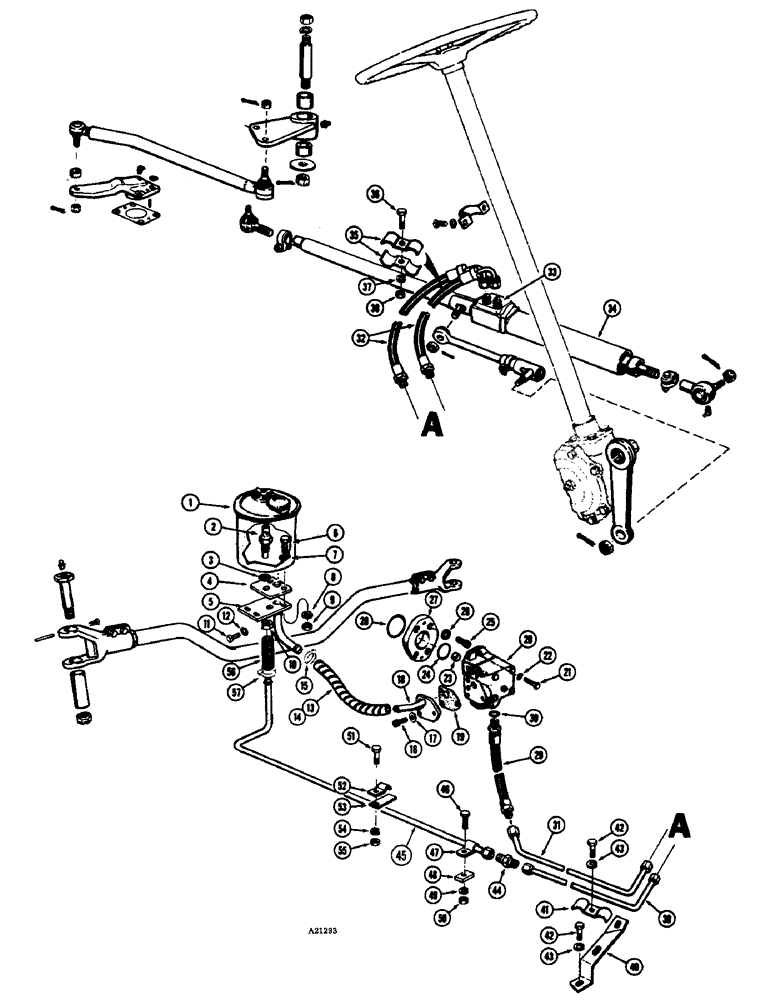

Схема запчастей Case W10E - (110) - POWER STEERING HYDRAULICS (05) - STEERING

Артикул

Название

Примечание

Количество

1

A17531

TANK

RESERVOIR - oil, power steering (Parts list figure 114 (1) )

1шт.

2

A17532

STUD

- connector, Serial Range: reservoir-bracket

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, bracket

1шт.

4

A19128

GASKET

-, Serial Range: reservoir-bracket

1шт.

5

T42353

BRACKET - reservoir mounting

1шт.

6

A18678

BOLT -, Serial Range: reservoir-bracket

2шт.

7

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

10

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. hex jam

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

T41087

HOSE ASSY.

HOSE - suction, reservoir to pump, 46" long

1шт.

14

L11636

GUARD - suction line hose

1шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - suction hose

2шт.

16

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

CAP SCREW - 1/4" x 1/2" N.C. hex, socket hd.

3шт.

17

A56212

WASHER

- copper, special

3шт.

18

L10899

MANIFOLD

- pump inlet

1шт.

19

A56227

GASKET

-, Serial Range: manifold-pump

1шт.

20

L10898

PUMP

- power steering (Parts list figure 114)

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A17525

SPACER

- pump, Serial Range: shaft-coupling

1шт.

24

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

SEAL - "O" ring, pump to adapter

1шт.

25

61-616

HEX SOC SCREW,3/8"-16 x 1"

CAP SCREW - 3/8" x 1" N.C. hex, socket hd.

2шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

27

A19985

ADAPTER

-, Serial Range: pump-converter

1шт.

28

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

SEAL - "O" ring, adapter to converter housing

1шт.

29

A17529

HOSE

- pressure, steering pump to cy., 14-1/2" long, Includes: Ref. 30

1шт.

31

A18956

TUBE

- pressure, Serial Range: pump-cylinder

1шт.

32

A18957

HOSE

- tube to steering cylinder, 25-1/4" long

2шт.

33

A14072

ADAPTER

CONNECTOR - steering, Serial Range: cylinder-hoses

2шт.

34

A18961

CYLINDER

& VALVE - steering (Parts list figure 112)

1шт.

35

A17542

CLAMP

- cylinder hoses

4шт.

36

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

39

A18954

TUBE

- return, cylinder to reservoir (Front section)

1шт.

40

A18952

BRACKET - mounting, tube clamp

1шт.

41

A17542

CLAMP

-, Serial Range: tube-bracket

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

43

92-6

LOCK WASHER,3/8"

3шт.

44

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, male

1шт.

45

L41646

TUBE - return, cylinder to reservoir (Rear section) 0.625" OD x 51.3, 4.6" L

1шт.

46

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

47

T42284

CLAMP

-, Serial Range: tube-chassis

2шт.

195-22

WASHER

- plain, 3/8" Z.P.

2шт.

48

A18958

SPACER - clamp

2шт.

49

92-5

LOCK WASHER,5/16"

2шт.

50

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

51

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.C. hex.

1шт.

52

A18959

CLIP

CLAMP - tube

1шт.

53

A18960

SPACER - clamp

1шт.

54

92-5

LOCK WASHER,5/16"

1шт.

55

9635082

NUT,5/16" - 18, Gr 5

- 5/16" hex.

1шт.

56

A17536

HYDRAULIC HOSE,0.63" ID x 3.00", SAE20R1

0.63" ID x 3.00", SAE 20R1 - Reservoir Return

1шт.

57

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

Выбрано товаров: 58
