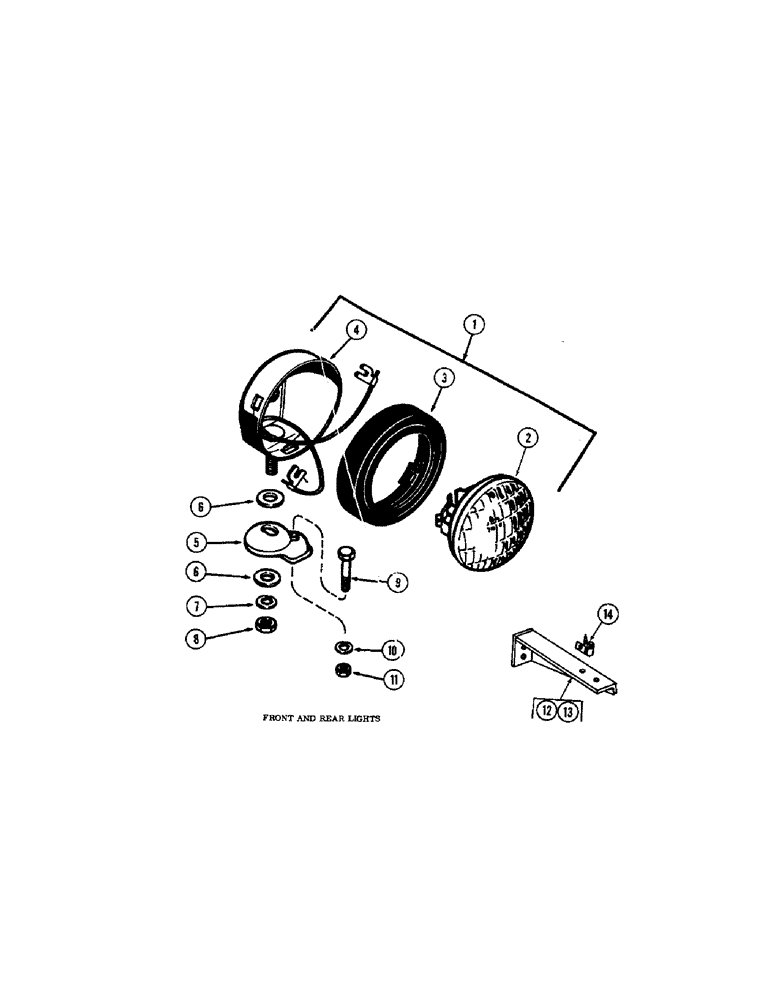

Запчасти Case W10E (094) - FRONT AND REAR LIGHTS - 12 VOLT, FRONT AND REAR LIGHTS - 24 (04) - ELECTRICAL SYSTEMS

1

D42097

LIGHT - front and rear - 12 volt, Includes: Ref. 2 - 4

4шт.

2

A11280

LAMP

- sealed unit - 12 volt

1шт.

3

A25213

RETAINER

- sealed unit (Rubber)

1шт.

4

A25214

LIGHT

BODY ASSEMBLY

1шт.

182-83

SCREW

- machine, #8 x 5/16" N.C. pan hd. slotted

1шт.

5

A34046

BRACKET

- mounting

4шт.

6

10923

WASHER

- concave, Serial Range: light-bracket

8шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

Light mounting 1/2"-13, G5

4шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket Hex, 3/8"-16 x 1 1/2", G5

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Bracket bolt 3/8"-16, G5

4шт.

1

A55702

LIGHT

- front and rear - 24 volts, Includes: Ref. 2 - 4

4шт.

2

A25212

LAMP

- sealed unit - 24 volts

1шт.

3

A25213

RETAINER

- sealed unit (Rubber)

1шт.

4

A25214

LIGHT

BODY ASSEMBLY

1шт.

182-83

SCREW

- machine, #8 x 5/16" pan hd. slotted, N.C.

1шт.

5

A34046

BRACKET

- mounting

4шт.

6

10923

WASHER

- concave, Serial Range: light-bracket

8шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

Light mounting 1/2"-13, G5

4шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket Hex, 3/8"-16 x 1 1/2", G5

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Bracket bolt 3/8"-16, G5

4шт.

12

T41136

BRACKET - front light mtg. L.H. without cab, brackets (front lights only)

1шт.

13

T41137

BRACKET - front light mtg. R.H. without cab, brackets (front lights only)

1шт.

14

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

brackets (front lights only)

2шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4 N.C. hex with lockwasher, brackets (front lights only)

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

with lockwasher & nut, brackets (front lights only) Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.
