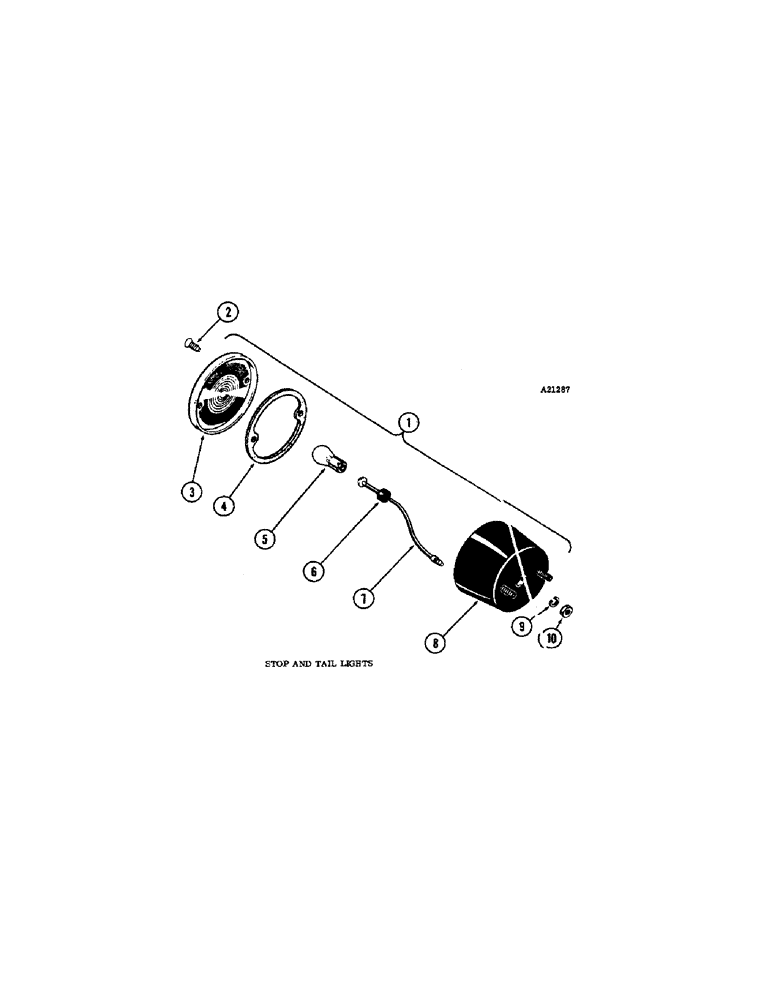

Запчасти Case W10E (094[1]) - FRONT AND REAR LIGHTS - 24 VOLT (04) - ELECTRICAL SYSTEMS

1

T41141

LIGHT - stop and tail, 12 volt, Includes: Ref. 2 - 10

2шт.

2

L30432

SCREW,#8 x 5/8"

- self-tapping, Phillips head, #8

2шт.

3

L30431

LENS

- lamp, red

1шт.

4

L30430

GASKET

-, Serial Range: lens-body

1шт.

5

R11078

LAMP

BULB - light, 12 volt

1шт.

6

L30428

SPRING - contact

1шт.

7

L30429

WIRE ASSEMBLY - light contact

1шт.

8

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - light (Order Ref. no. 1)

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

Light mounting 1/4"-20, G5

2шт.

1

L11000

INTERIOR LIGHT

LIGHT - stop and tail, 24 volt, Includes: Ref. 2 - 10

2шт.

2

L30432

SCREW,#8 x 5/8"

- #8, self-tapping, Phillips head

2шт.

3

L30431

LENS

- lamp (Red)

1шт.

4

L30430

GASKET

-, Serial Range: lens-body

1шт.

5

A15084

LAMP

BULB - light, 24 volt

1шт.

6

L30428

SPRING - contact

1шт.

7

L30429

WIRE ASSEMBLY - light contact

1шт.

8

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - light (Order Ref. no. 1)

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

Light mounting 1/4"-20, G5

2шт.
