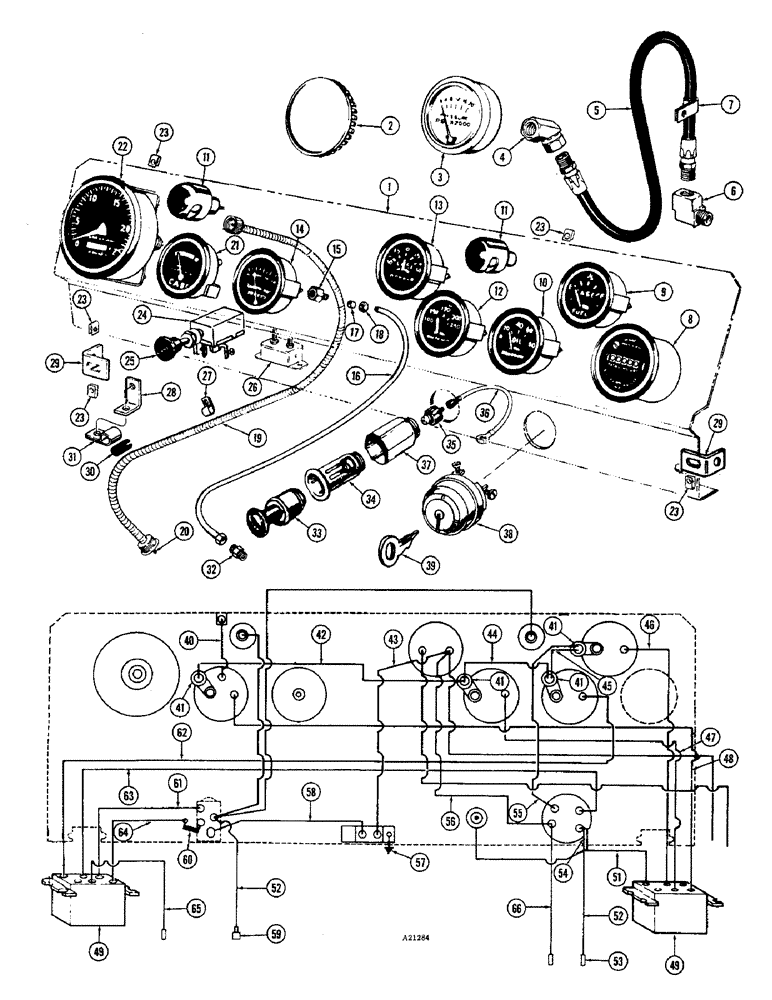

Запчасти Case W10E (080) - INSTRUMENT PANEL AND GAUGES, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

L42160

PANEL - instrument

1шт.

2

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button, gauge opening (Used in place of hourmeter or hydraulic pressure gauge)

1шт.

3

A19522

ELECTRICAL GAUGE

GAUGE - hydraulic pressure (Optional)

1шт.

4

A19523

ADAPTER - pressure, Serial Range: gauge-hose

1шт.

5

A19426

HOSE - adapter to control valve

1шт.

6

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- hose to control valve

1шт.

7

A26696

NO LONGER SERVICED

CLIP - hose to brake cylinder bracket

1шт.

8

L13298

ELECTRICAL GAUGE

GAUGE - hourmeter (Optional)

1шт.

9

A19345

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

10

A19346

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

11

A14737

LAMP

ASSEMBLY - dash panel, 24 volt (Parts list figure 96)

2шт.

187-1007

SCREW

- #6 x 5/16" self tapping, rd. hd.

4шт.

12

A19347

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

13

A55699

ELECTRICAL GAUGE

GAUGE - ammeter, 60 amp.

1шт.

14

A56447

ELECTRICAL GAUGE

GAUGE - clutch pressure

1шт.

15

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - flex fitting

1шт.

16

A17267

TUBE

- pressure, Includes: Ref. 17 and 18

1шт.

17

222-100

TUBE NUT,1/8" Tube

SLEEVE - flex fitting

1шт.

18

222-110

TUBE NUT,3/8"-24

NUT - flex fitting

1шт.

19

A12430

HOUSING

CABLE ASSEMBLY - tachometer drive, Includes: Ref. 20

1шт.

20

A13200

CABLE

- tachometer drive

1шт.

21

A13756

GAUGE

- converter oil temperature

1шт.

22

A11190

TACHOMETER

- engine (Includes hourmeter)

1шт.

23

131-120

NUT

- Tinnerman, 1/4" N.C.

5шт.

24

A20201

SWITCH

- headlight

1шт.

25

A7817

KNOB

- light switch

1шт.

26

A22877

BREAKER,40A

CIRCUIT BREAKER - light switch

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex.

2шт.

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- machine, #10 x 3/8" N.C. rd. hd.

2шт.

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

2шт.

27

A27033

CLIP - tachometer cable to side plate

1шт.

28

L42008

BRACKET - tachometer cable, Serial Range: clip-firewall

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

29

A17270

CLIP - mounting, instrument panel

2шт.

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-144

JAM NUT,Jam, 1/4"-20, G5

- 1/4" N.C. hex. jam

1шт.

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

- machine, 1/4" x 5/8" N.C. truss hd.

4шт.

30

A12458

SLEEVE

LOOM - protective

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

A7922

CLIP

- cable to firewall bracket

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

32

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

CONNECTOR - 1/8" x 1/8"

1шт.

33

A24134

CIGARETTE LIGHTER

LIGHTER - cigarette

1шт.

34

G44916

SOCKET

- lighter, Includes: Ref. 35 and 36

1шт.

35

G44918

CIRCUIT BREAKER - protective

1шт.

36

G44022

ELECTRICAL WIRE

WIRE -, Serial Range: lighter-switch

1шт.

37

G46381

SHELL - retainer, lighter socket

1шт.

38

L17820

SWITCH

- starting, Includes: Ref. 39

1шт.

39

A20346

KEY

- starting switch

1шт.

40

A21625

WIRE - ground, gauge to panel bracket

1шт.

41

A19349

RESISTOR

- voltage, gauge

4шт.

195-12

WASHER,#10

- plain #10

4шт.

42

A19366

WIRE - coverter temperature gauge to engine temperature gauge (Black - 11-1/4" long)

1шт.

43

A19364

WIRE - circuit breaker to ammeter (Black - 6" long)

1шт.

44

A19363

WIRE - engine temperature gauge to engine oil pressure gauge (Black - 3-3/4" long)

1шт.

45

A19363

WIRE - fuel level gauge to engine oil pressure gauge (Black 3-3/4" long)

1шт.

T41914

PLUG

HARNESS - wiring, panel R.H. (Not illustrated), Includes: Ref. 46 - 49 and 51

1шт.

46

A19354

WIRE - block to fuel gauge (White - 7-1/2" long)

1шт.

47

A19355

WIRE - block to engine temperature gauge (Green - 12" long)

1шт.

48

A19353

WIRE - block to converter temperature gauge (Black - 23" long)

1шт.

49

A13742

BLOCK - harness connector

1шт.

51

A19356

WIRE - block to starting switch (Blue 6-1/2" long)

1шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, #6 x 1/2" N.C. rd. hd.

2шт.

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

2шт.

129-5

NUT,#6-32

2шт.

52

A19367

WIRE - light switch to front headlights, starting switch to horn (Black - 18" long)

2шт.

53

A27213

CONNECTOR - two wire, horn

1шт.

54

A9348

BLOCK - electrical terminal

1шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, #6 x 1/2" N.C. rd. hd.

1шт.

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

1шт.

129-5

NUT,#6-32

1шт.

55

A19363

WIRE - starting switch to fuel level gauge (Black - 3-3/4" long)

1шт.

56

A19369

WIRE - ammeter to starting switch (Red - 8-1/4" L.)

1шт.

57

A56181

ELECTRICAL WIRE

WIRE - ground, circuit breaker

1шт.

193-72

LOCK WASHER

LOCKWASHER - 3/8" external/internal tooth Z.P.

1шт.

58

A19365

WIRE - circuit breaker to light switch (Black - 8" long)

1шт.

59

A8210

CONNECTOR, ELEC

CONNECTOR - three wire - front headlights

1шт.

60

A14900

RESISTOR

- voltage, tail light

1шт.

173-75

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- machine, #8 x 3/8" N.C. rd. hd.

1шт.

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

129-6

NUT,#8-32

1шт.

L10079

HARNESS - wiring, panel L.H. (Not illustrated), Includes: Ref. 49 and 61 - 65

1шт.

49

A13742

BLOCK - harness connector

1шт.

61

A19357

WIRE - block to rear headlight terminal of switch (Black - 9-1/2" long)

1шт.

62

A19361

WIRE - block to engine oil pressure gauge (White - 24-3/4" long)

1шт.

63

A19359

WIRE - block to solenoid terminal of starting switch (Green - 24-3/4" long)

1шт.

64

A19358

WIRE - block to taillight terminal of switch (Yellow - 8-1/2" long)

1шт.

65

A19360

WIRE - block to stop light switch (Blue - 28" long)

1шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, #6 x 1/2" N.C. rd. hd.

2шт.

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

2шт.

129-5

NUT,#6-32

2шт.

66

A19508

WIRE - starting switch to stop light switch (Blue - 28")

1шт.
