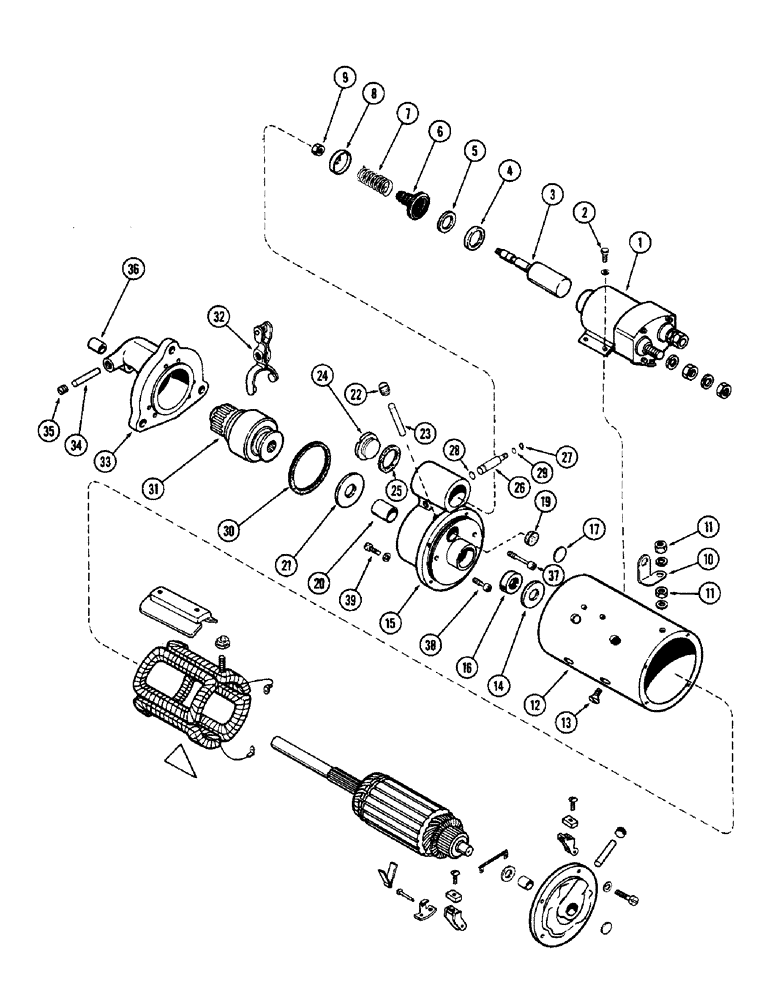

Запчасти Case W10E (066) - A15485 STARTER, (401B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

MOTOR ASSY - starter (Delco #1113370), Includes: Ref. 1 - 67

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

1

A42376

SWITCH

SWITCH ASSY - solenoid (Repairs figure 74)

1шт.

2

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

BOLT - solenoid to starter

4шт.

3

A42309

PLUNGER

PLUNGER - solenoid

1шт.

4

R21572

RETAINER

RETAINER - plunger spring

1шт.

5

A42063

WASHER - retainer

1шт.

6

A42308

BOOT

BOOT - plunger

1шт.

7

A41242

SPRING

SPRING - plunger

1шт.

8

R21571

RETAINER

RETAINER - spring

1шт.

9

131-31

LOCK NUT,5/16"-24, G8

NUT - adjusting, 5/16" N.F. nylock

1шт.

10

D32480

SPARE PART CONNECTOR - switch to field terminal

1шт.

11

R15014

NUT

NUT -, Serial Range: connector-terminal

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - armature (Order A15485)

1шт.

13

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - shoe, 3/8 x 5/8" N.F. flat hd.

8шт.

14

R21583

WASHER

WASHER - spacer, armature

1шт.

15

R21579

HOUSING

HOUSING ASSY - shift lever, Includes: Ref. 16 - 23

1шт.

16

R21582

OIL SEAL

SEAL - oil, lever housing

1шт.

17

41-57

PLUG,Exp, 1 1/32"

PLUG - expansion

1шт.

19

A41923

PLUG

PLUG - inner

1шт.

20

R21580

BUSHING

BUSHING - lever housing

1шт.

21

R15145

DISC

WASHER - brake

1шт.

22

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

23

R15023

WICK

WICK - oil

1шт.

24

R21587

PLUG

PLUG - screw, lever housing

1шт.

25

A41924

GASKET

GASKET - plug

1шт.

26

A42199

PIN

STUD - shift lever

1шт.

27

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud #37, Ext

1шт.

28

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - lever stud (15/64 x 3/8 x 1/16")

1шт.

29

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - lever stud (23/64 x 1/2 x 1/16")

1шт.

30

R21562

GASKET

GASKET - lever housing to drive housing

1шт.

31

A42397

DRIVE

DRIVE ASSY - starter

1шт.

32

D32547

LEVER

LEVER - shift, drive assy.

1шт.

33

A40283

HOUSING

HOUSING ASSY - starter drive, Includes: Ref. 34 and 35

1шт.

34

R15023

WICK

WICK - oil

1шт.

35

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

36

A40893

BUSHING

BUSHING - armature shaft

1шт.

37

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive housing (5/16-18 x 1-1/2" sckt. hd.)

1шт.

38

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing (5/16-18 x 7/8" sckt hd.)

1шт.

39

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Lever housing Hex, 1/4"-28 x 1", G5

4шт.

40

R15115

SHOE

SHOE - pole

4шт.

41

R15010

BUSHING

BUSHING - insulator, terminal stud

1шт.

42

R15013

WASHER

WASHER - plain, terminal stud

1шт.

43

A42010

WASHER

WASHER - insulating, terminal stud

1шт.

44

R21557

COIL ASSY.

COIL ASSY - field, Includes: Ref. 45

1шт.

45

R15017

STUD

STUD - terminal

1шт.

46

A41977

RUBBER INSULATOR

INSULATOR - field coil

2шт.

47

A40909

ARMATURE

ARMATURE - starter

1шт.

48

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

49

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching (Self-tapping)

4шт.

50

R15027

HOLDER

HOLDER - insulated, brush

2шт.

51

A40217

HOLDER

HOLDER - grounded, brush

2шт.

52

R15029

BRUSH

SUPPORT KIT - brush holder, Includes: Ref. 53 - 58

2шт.

53

NSS

NOT SOLD SEPARAT

SUPPORT - (Order R15029)

1шт.

54

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - #10-24 x 3/4" rd. hd.

2шт.

55

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

56

R15032

X

NUT - #10-24 hex.

2шт.

57

R15030

ELECTRICAL WIRE

WIRE LEAD - ground

1шт.

58

R15035

PIN

PIN -, Serial Range: holder-support

1шт.

59

R15025

SPRING

SPRING - brush

2шт.

60

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

61

R21559

FRAME

FRAME ASSY - commutator end, Includes: Ref. 62 - 65

1шт.

62

R15020

BUSHING

BUSHING - armature shaft

1шт.

63

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

64

R15023

WICK

WICK - oil

1шт.

65

R15021

PLUG

PLUG - end (3/4" expansion type)

1шт.

66

R21578

SCREW

SCREW -, Serial Range: frame-housing

3шт.

67

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal stud 3/8"

2шт.
