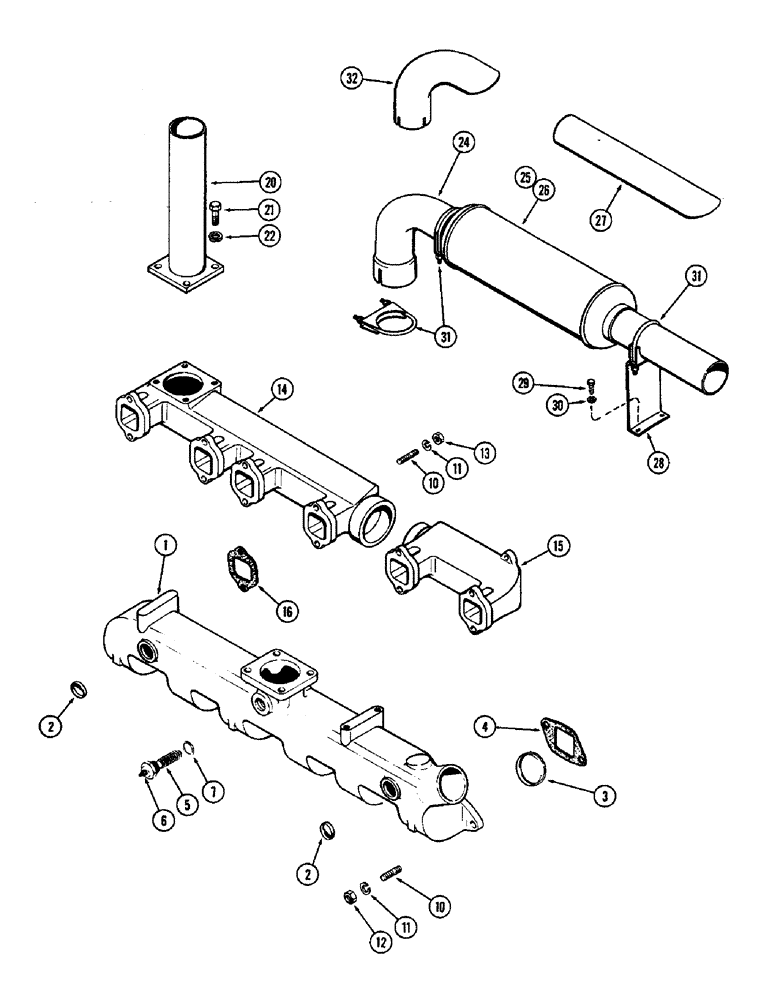

Запчасти Case W10E (008) - MANIFOLD & MUFFLER, (401B) DIESEL ENGINE (02) - ENGINE

1

A58660

MANIFOLD

- intake, Includes: Ref. 2 and 3

1шт.

2

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type

2шт.

3

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type

1шт.

4

A58662

MANIFOLD GASKET

- intake, Serial Range: manifold-head

6шт.

5

A37775

HEATER

ASSY - intake manifold (12 V), Includes: Ref. 6

1шт.

6

129-503

NUT,1/4"-20, Brass

1шт.

7

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

10

A59077

STUD

- manifolds to head (3/8" N.C. x 1-3/4")

24шт.

11

92-6

LOCK WASHER,3/8"

24шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Intake manifold)

12шт.

13

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf (Exhaust manifold)

12шт.

14

A58663

MANIFOLD

- exhaust, rear

1шт.

15

A58664

MANIFOLD

- exhaust, front

1шт.

16

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

20

L41596

PIPE

STACK -, Serial Range: exhaust-muffler

1шт.

21

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex.

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

24

L41602

ELBOW - exhaust, Serial Range: stack-muffler

1шт.

25

A24103

MUFFLER

- exhaust (See L10224)

1шт.

26

L10224

MUFFLER

- exhaust (Spark arresting)

1шт.

27

L10225

EXHAUST SYSTEM PIPE

PIPE - tail (W/L10224 only)

1шт.

28

L42170

BRACKET - rear support, muffler

1шт.

29

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

A27115

CLAMP

BRACKET - clamp, muffler & pipe

3шт.

32

A19954

ELBOW UNION

ELBOW - muffler (Used w/backhoe)

1шт.
