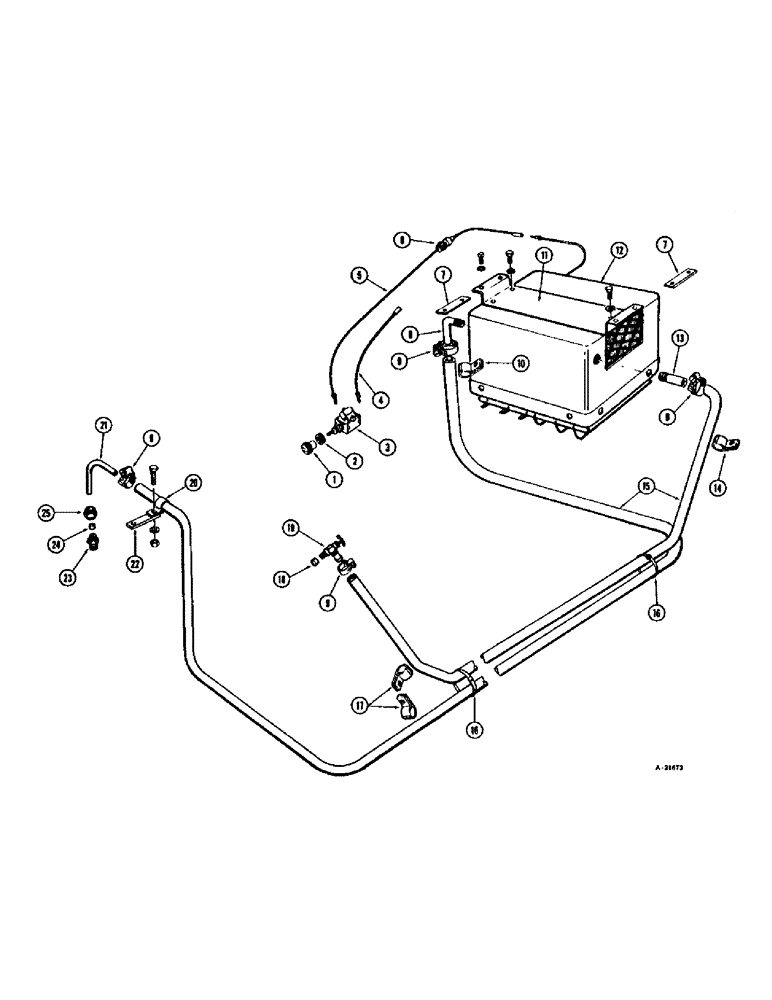

Запчасти Case W10E (277I) - OPERATORS CAB, CAB HEATER (09) - CHASSIS

1

A19944

KNOB - fan switch

1шт.

2

A19945

NUT - switch mounting

1шт.

3

A12898

SWITCH

ASSEMBLY - heater

1шт.

4

A14733

ELECTRICAL WIRE

WIRE - heater switch to key switch

1шт.

5

L34010

WIRE ASSEMBLY - switch to heater, 12 V gas, Includes: Ref. 6

1шт.

6

223-10

FUSE,10 Amp, Type 3AG

- heater fan, 10 amp.

1шт.

5

A19937

WIRE ASSEMBLY - switch to heater, 24 V diesel, Includes: Ref. 6

1шт.

6

223-7

FUSE,7 1/2 Amp, Type SFE

- heater fan, 7-1/2 amp.

1шт.

7

T42294

PLATE - heater mounting

2шт.

8

A19941

PACKAGE

ELBOW - 90 degrees, Serial Range: heater-hose

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

10

A17543

CLAMP - hose to mounting plate

1шт.

11

A19939

BRACKET - heater mounting

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

7шт.

92-5

LOCK WASHER,5/16"

7шт.

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

4шт.

12

A19973

HEATER - cab, 12 V gas

1шт.

A18347

MOTOR HOUSING

MOTOR - heater (Not illustrated)

1шт.

L30009

FAN

- heater (Not illustrated)

1шт.

12

A19972

HEATER - cab, 24 V diesel

1шт.

A18348

MOTOR - heater (Not illustrated)

1шт.

L30009

FAN

- heater (Not illustrated)

1шт.

13

A19940

PIPE

NIPPLE - straight, Serial Range: heater-hose

1шт.

14

A27256

CLAMP

- heater hose

1шт.

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

15

A19943

HOSE

- heater, 158" long

2шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - heater hose

2шт.

17

A27256

CLAMP

- heater hose to engine block

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

95-6

WASHER,3/8"

- plain 3/8"

1шт.

18

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - shutoff to engine block

1шт.

19

A16764

VALVE

- shutoff, hose to engine block

1шт.

20

A27256

CLAMP

- heater, Serial Range: hose-strap

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

21

L42521

TUBE - heater hose to connector 0.5" OD x 3, 2.5" L

1шт.

22

A19330

STRAP - mounting, valve cover

1шт.

222-29

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - tube to pump, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

CONNECTOR - male, straight

1шт.

24

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing Hex, 3/4" x 3/8" NPT

1шт.

25

222-115

NUT,13/16"-18

- tube

1шт.
