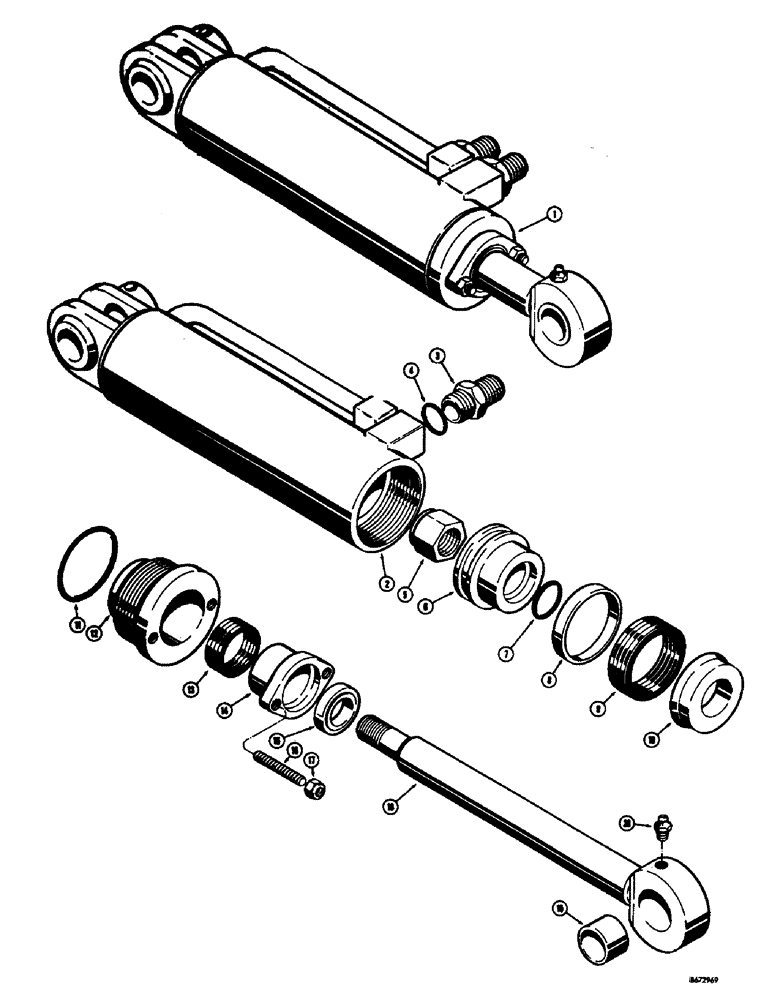

Запчасти Case W10E (266) - A17668 AND A17669 DROTT CLAM CYLINDERS (08) - HYDRAULICS

1

A17668

CYLINDER

- hydraulic, clam (R.H.) 4" I.D. x 10" stroke, Includes: Ref. 2 -20

1шт.

A17669

CYLINDER

- hydraulic, clam (L.H.) 4" I.D. x 10" stroke, Includes: Ref. 2 - 20

1шт.

2

A17682

CYLINDER

TUBE - cylinder, R.H.

1шт.

A17683

CYLINDER

TUBE - cylinder, L.H.

1шт.

3

218-5085

X

CONNECTOR - male, Includes: Ref. 4

2шт.

5

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

6

A17681

PISTON

- half, nut end

1шт.

7

A17680

O-RING

SEAL - "O" ring

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

A17686

RING

- wiper

1шт.

9

A17679

KIT

PACKING - piston

1шт.

10

A17678

PISTON

- half, eye end

1шт.

11

A17677

O-RING

SEAL - "O" ring

1шт.

12

A17676

CYLINDER HEAD

GLAND - packing, outer

1шт.

13

A17675

PACKING

- gland

1шт.

14

A17674

GLAND

- packing, inner

1шт.

15

A17672

SEAL

SEAL - wiper

1шт.

16

A17673

STUD

- flange

2шт.

17

131-181

LOCK NUT,3/8"-24, GC

LOCKNUT - 3/8" N.F. hex.

2шт.

18

A17671

ROD

- cylinder

1шт.

19

A17670

BUSHING

- cylinder

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8"

1шт.
