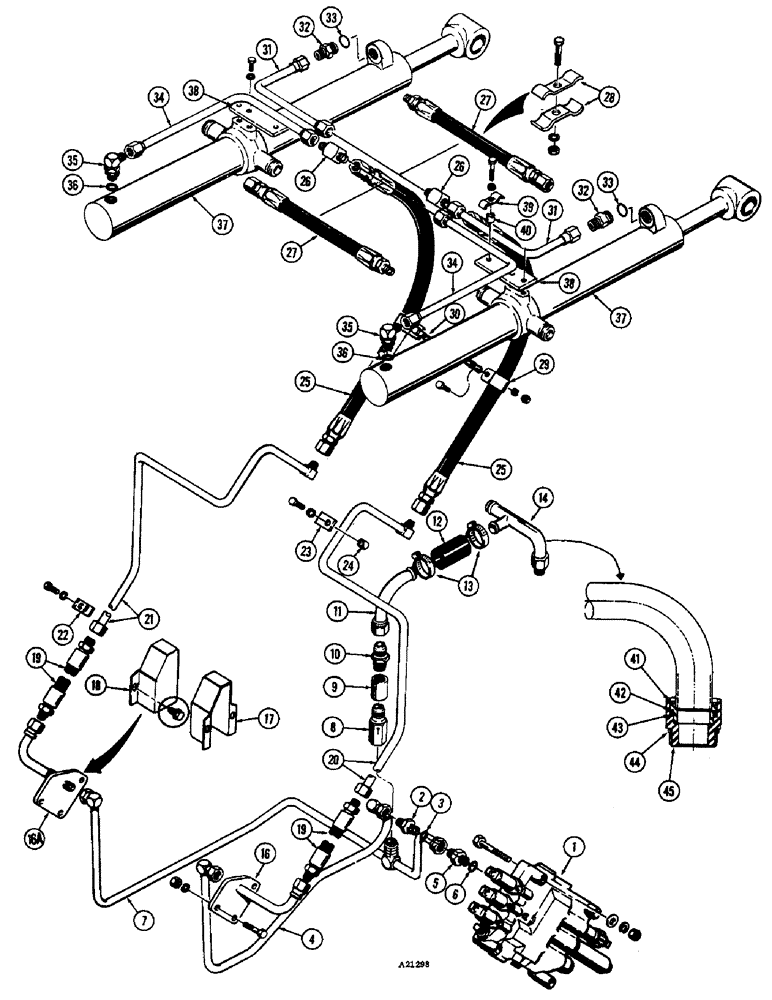

Запчасти Case W10E (236) - LOADER HYDRAULICS, TILT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figure 246 and 248 for proper valve)

1шт.

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

195-33

WASHER,1/2"

- plain, 1/2"

3шт.

92-8

LOCK WASHER,1/2"

3шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

2

A17646

CONNECTOR, ELEC

CONNECTOR - male, straight, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - seal

1шт.

4

A19038

HOSE ASSY.

TUBE - valve to connector, R.H.

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Male straight, Incl. Ref. 6 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - seal

1шт.

7

L15322

TUBE,1" DIA

- valve to connector, L.H.

1шт.

8

D31497

LOCK VALVE

VALVE - anti-cavitation

1шт.

9

221-1330

COUPLING

- pipe, 3/4"

1шт.

10

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - coupling to tube

1шт.

11

L15324

TUBE,1" DIA x 5.31, 4" L

- adapter to hose

1шт.

12

L15325

HOSE

- tube to reservoir return

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

6шт.

14

L15323

TUBE,1.25" OD x 9.6, 4.4" L

- return, valve to reservoir (Includes Ref. nos. 41 - 45)

1шт.

16

T41911

CONNECTOR - tube to side plate, R.H.

1шт.

16a

T41933

CONNECTOR - tube to side plate, L.H.

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

92-8

LOCK WASHER,1/2"

6шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

6шт.

17

A19660

SHIELD - tube connector, R.H.

1шт.

18

A19661

SHIELD - tube connector, L.H.

1шт.

187-1009

BOLT

SCREW - self-tapping, 1/4" x 3/8" N.C.

4шт.

19

A17639

HOSE

- connector to intermediate tubes, 24-1/4" L

2шт.

20

L18718

TUBE,1" OD

- valve to tilt cylinder, rod end (R.H. intermediate)

1шт.

21

L18719

TUBE,1" OD

- valve to tilt cylinder, closed end (L.H. intermediate)

1шт.

22

A12308

CLAMP

- tube to lift arm

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

23

L18974

CLAMP - tube to lift arm

2шт.

24

D36524

BUSHING

SPACER - clamp

2шт.

13-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25

L17543

HOSE ASSY.

HOSE - intermediate tube to tee, 43" long

2шт.

26

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

- tube to crossover hose

2шт.

27

L17544

HOSE

- crossover, tilt cylinder, 23-1/4" long

2шт.

28

A12332

CLAMP

- crossover hose

2шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

29

A17647

CLAMP

- hose, tilt cylinder

2шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

30

A13242

O-RING

CHAIN - tie, hose

1шт.

31

T41124

TUBE,0.75" OD x 15, 6" L

- tilt cylinder, front hyd. port

2шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 33 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

2шт.

34

L16325

TUBE,0.75" OD x 11.8, 6" L

- tilt cylinder, closed end

2шт.

35

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 36 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

1шт.

37

G32000

CYLINDER - hydraulic, loader tilt (Use G32227) Parts list figure 264

2шт.

38

L18649

PLATE ASSY.

PLATE - mounting, clamp

2шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

4шт.

39

70724

CLAMP - tube

2шт.

40

D36040

BUSHING

SPACER - clamp

2шт.

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16" x 1-3/8" N.C. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

L15323

TUBE,1.25" OD x 9.6, 4.4" L

- return, valve to reservoir, Includes: Ref. 41 - 45

1шт.

41

L34019

RING

- retainer

1шт.

42

L30990

RING

WASHER - backup

1шт.

43

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING

1шт.

44

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING

1шт.

45

L30991

ADAPTER - tube

1шт.
