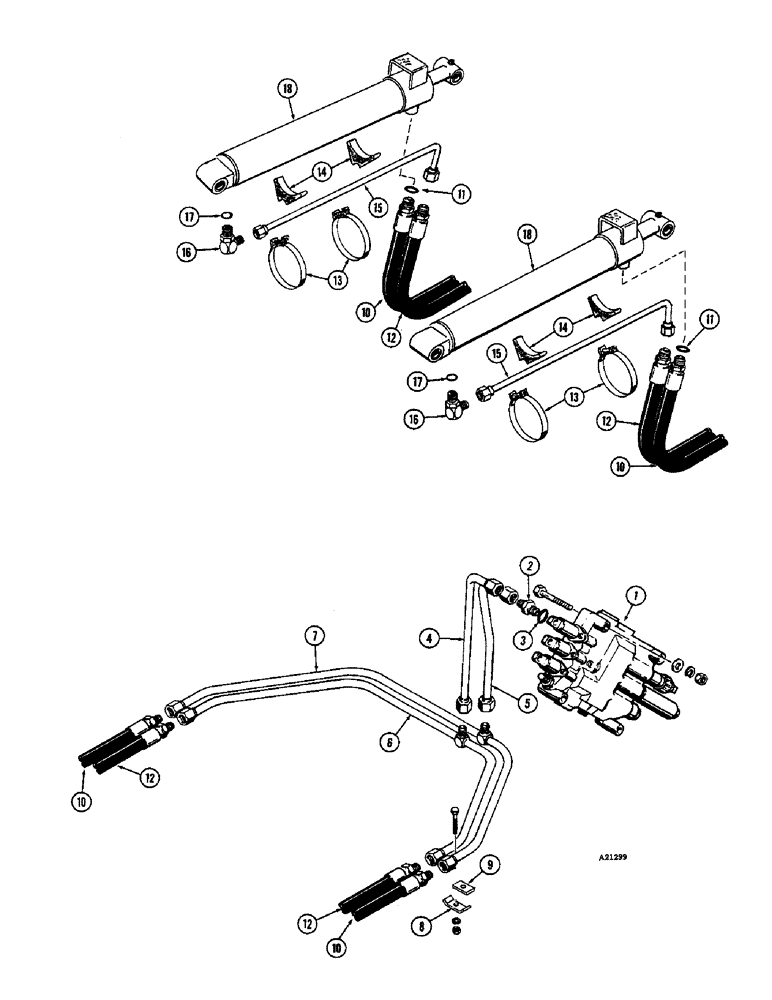

Запчасти Case W10E (234) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figures 246, 248 and 250 for proper valve)

1шт.

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

195-33

WASHER,1/2"

- plain, 1/2"

3шт.

92-8

LOCK WASHER,1/2"

3шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Male straight, Incl. Ref. 3 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - seal

1шт.

4

A19046

TUBE

- valve to inner manifold

1шт.

5

A19047

TUBE - valve to outer manifold

1шт.

6

A12327

TUBE

- manifold lift cylinder (Inner)

1шт.

7

A12331

TUBE

- manifold lift cylinder (Outer)

1шт.

8

A12332

CLAMP

- manifold tube

2шт.

9

A19048

SPACER - clamp

2шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

10

A19045

HYDRAULIC HOSE,0.63" ID x 30.00", SAE 100R2

- Manifold to lift cylinder, Includes Ref. 11 0.63" ID x 30.00", SAE 100R2

2шт.

11

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - seal

1шт.

12

T41487

HYDRAULIC HOSE,0.30" ID x 30.00"

- Manifold tube to lift cylinder 0.30" ID x 30.00"

2шт.

13

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - cylinder and tube

4шт.

14

D46440

SADDLE

- rubber, cylinder and tube

4шт.

15

T41127

TUBE,0.75" OD x 37.5, 3.5" L

- hydraulic cylinder port (Rear)

2шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

tube and cylinder port, Incl. Ref. 17 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

1шт.

18

G31992

CYLINDER - hydraulic loader lift (Use G32178) Parts list figure 262

2шт.
