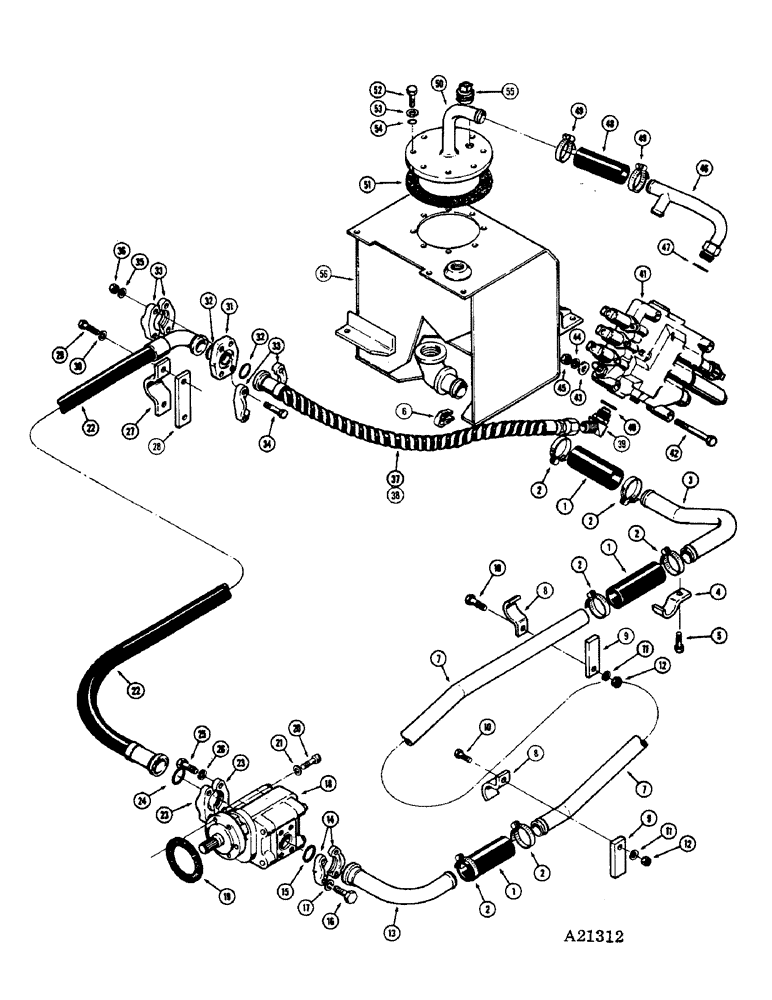

Запчасти Case W10E (232) - LOADER HYDRAULICS, PUMP SUCTION AND PRESSURE LINE HYDRAULICS (08) - HYDRAULICS

1

A16712

HOSE,1.75" ID x 5.50", SAE 20R1

- Suction line, Low pressure 1.75" ID x 5.50", SAE 20R1

3шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

6шт.

3

A19036

TUBE

- suction, tank to pump (At tank)

1шт.

4

A19037

CLAMP -, Serial Range: tube-tank

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

131-124

NUT

- Tinnerman - 5/16" N.C.

1шт.

7

A19034

TUBE - suction, tank to pump (Intermediate)

1шт.

8

A14776

CLAMP - tube

2шт.

9

A19035

SPACER - clamp

2шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

13

A19033

ELBOW UNION

ELBOW - pump inlet

1шт.

14

A14157

FLANGE

- split, suction, Serial Range: tube-pump

2шт.

15

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

A19032

PUMP

- hydraulic, equipment (Parts list figure 268)

1шт.

19

A17619

GASKET

- pump mounting

1шт.

20

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

CAP SCREW - hex. socket hd. (3/8" x 1-1/4") N.C.

6шт.

21

92-6

LOCK WASHER,3/8"

6шт.

22

A19653

HOSE

- pressure, pump to valve, 32-3/4" long

1шт.

23

A12301

CLAMP,Half

- split, pressure, Serial Range: hose-pump

2шт.

24

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

25

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

26

92-7

LOCK WASHER,7/16"

4шт.

27

A19654

CLAMP - hose

1шт.

28

A19652

SPACER - clamp

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

A14148

PLATE

- connector, hose

1шт.

32

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

2шт.

33

A12301

CLAMP,Half

- split, connector plate

4шт.

34

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

4шт.

35

92-7

LOCK WASHER,7/16"

4шт.

36

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

37

A19650

HOSE ASSY.

HOSE - connector to valve (2 spool valve) 36" long

1шт.

38

A19651

HOSE - conector to valve (3 spool valve) 34" long

1шт.

39

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degrees, Includes: Ref. 40

1шт.

40

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

41

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figures 246, 248 and 250 for proper valve)

1шт.

42

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

43

195-33

WASHER,1/2"

- plain, 1/2"

3шт.

44

92-8

LOCK WASHER,1/2"

3шт.

45

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

46

L15323

TUBE,1.25" OD x 9.6, 4.4" L

- return, valve to reservoir (Parts list figure 238), Includes: Ref. 47

1шт.

47

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

48

A12299

HYDRAULIC HOSE,1.25" ID x 5.50", SAE20R1

1.25" ID x 5.50", SAE 20R1 - Return, Low pressure

1шт.

49

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

50

A18777

COVER - return filter

1шт.

51

A17427

GASKET

- filter cover

1шт.

52

A16900

BOLT -, Serial Range: cover-tank

8шт.

53

195-25

WASHER,3/8"

8шт.

54

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, filter cover

8шт.

55

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - sq. hd., 1/2"

1шт.

56

A18765

TANK - hydraulic oil (See figure 156)

1шт.
