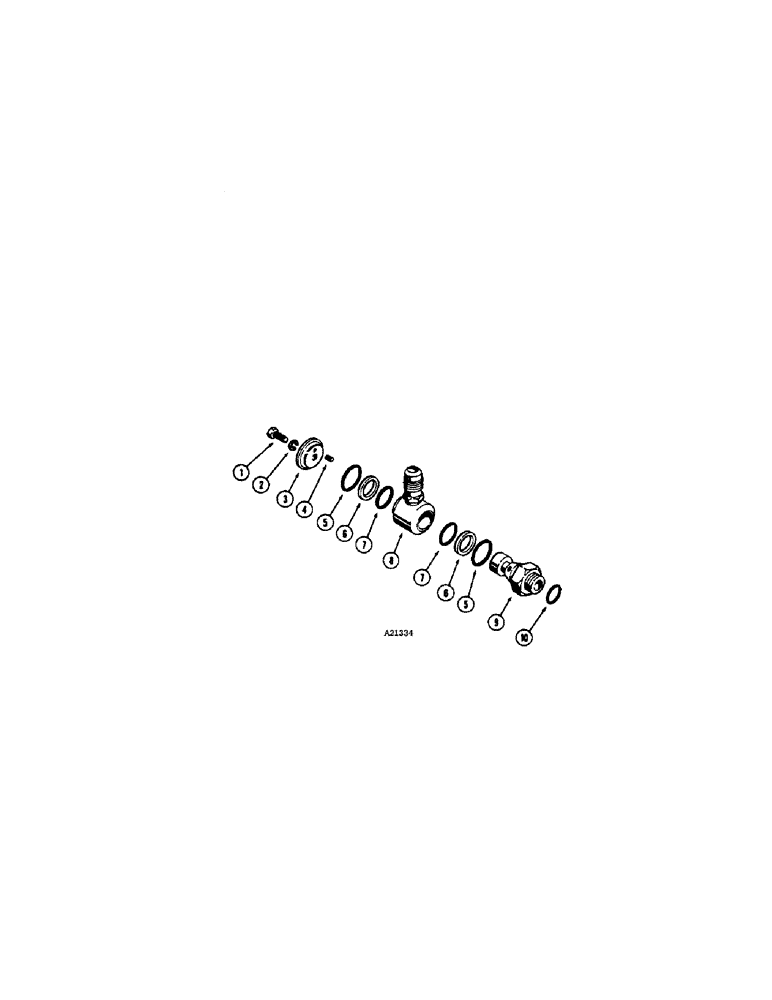

Запчасти Case W10E (226[1]) - A17688 CONNECTOR (08) - HYDRAULICS

A17688

LINK

CONNECTOR ASSEMBLY - swivel, Includes: Ref. 1 - 10

2шт.

1

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

2

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

A17689

GUARD - protective

1шт.

4

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

1шт.

5

A17690

O-RING

SEAL - "O" ring, guard to body (Large)

2шт.

6

T13068

WASHER

RING - backup

2шт.

7

A17692

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

SEAL - "O" ring, swivel to body (Small)

2шт.

8

A17695

PIVOT

BODY - connector

1шт.

9

A17693

SWIVEL - connector

1шт.

10

A17694

O-RING

SEAL - "O" ring, Serial Range: swivel-tube

1шт.

FOOTNOTE

1шт.

REF. 9 SHOULD USE A17688

1шт.
