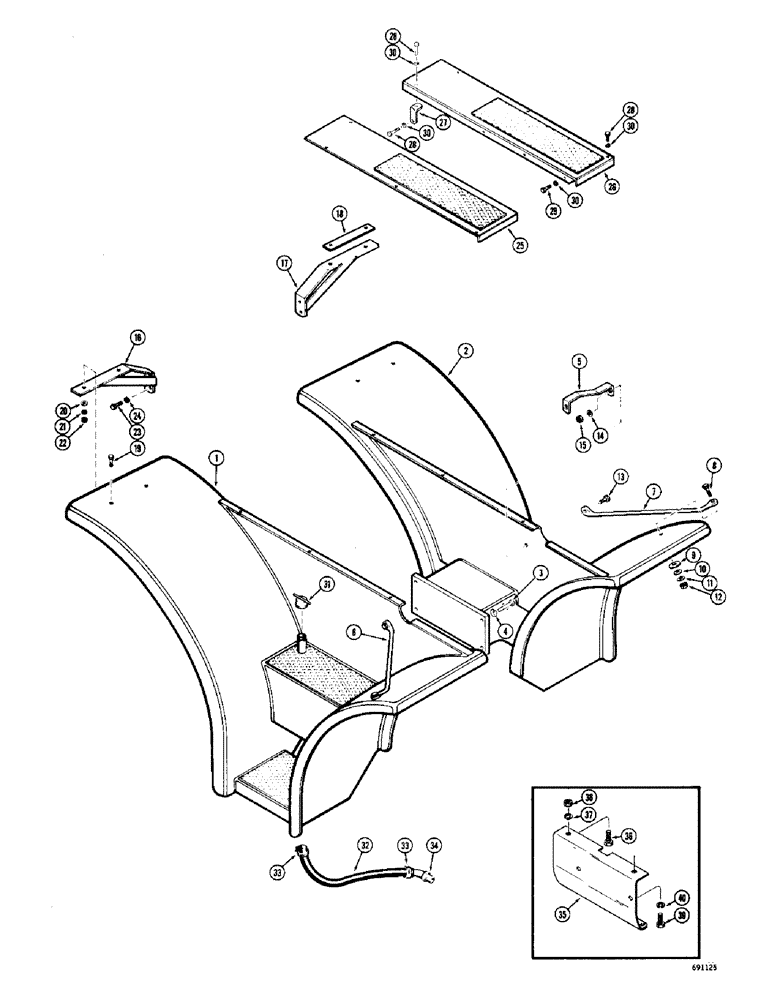

Запчасти Case W10C (140) - FENDERS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A19614
FENDER - loader, R.H.
1шт.
2
A19615
FENDER - loader, L.H.
1шт.
3
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2" - 20 NF x 1-1/4"
8шт.
4
92-8
LOCK WASHER,1/2"
8шт.
5
A19622
BRACE - fender, front
1шт.
6
A19628
BAR - support, R.H.
1шт.
7
A19629
BAR - support, L.H.
1шт.
8
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
9
A19658
WASHER - spacer
2шт.
10
195-33
WASHER,1/2"
- plain () 1/2"
2шт.
11
92-8
LOCK WASHER,1/2"
2шт.
12
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 12 NC)
2шт.
13
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
2шт.
14
92-8
LOCK WASHER,1/2"
2шт.
15
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
2шт.
16
A19616
SUPPORT - fender, rear (R.H.)
1шт.
17
A19617
SUPPORT - fender, rear (L.H.)
1шт.
18
A19621
SPACER - fender support
2шт.
19
21-616
BOLT - step, 3/8" - 16 NC x 1"
4шт.
20
195-25
WASHER,3/8"
- plain () 3/8"
4шт.
21
92-6
LOCK WASHER,3/8"
4шт.
22
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
4шт.
23
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
24
92-6
LOCK WASHER,3/8"
4шт.
25
A19624
PLATE - step, R.H.
1шт.
26
A19625
PLATE - step, L.H.
1шт.
27
A17325
BRACKET - plate corner
2шт.
28
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
10шт.
29
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
6шт.
30
92-6
LOCK WASHER,3/8"
16шт.
31
A19631
CAP - transmission filler
1шт.
32
A19633
HOSE,1.25" ID x 32.00", SAE 20R1
- Transmission filler 1.25" ID x 32.00", SAE 20R1
1шт.
33
214-258
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
2шт.
34
A19630
ELBOW -, Serial Range: hose-transmission
1шт.
35
A19623
PANEL - side, front (R.H.) For panel used on models without fenders see figure 136
1шт.
36
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16" - 18 NC x 1-1/4"
1шт.
37
92-5
LOCK WASHER,5/16"
1шт.
38
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
39
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
40
92-6
LOCK WASHER,3/8"
1шт.
Выбрано товаров: 40
