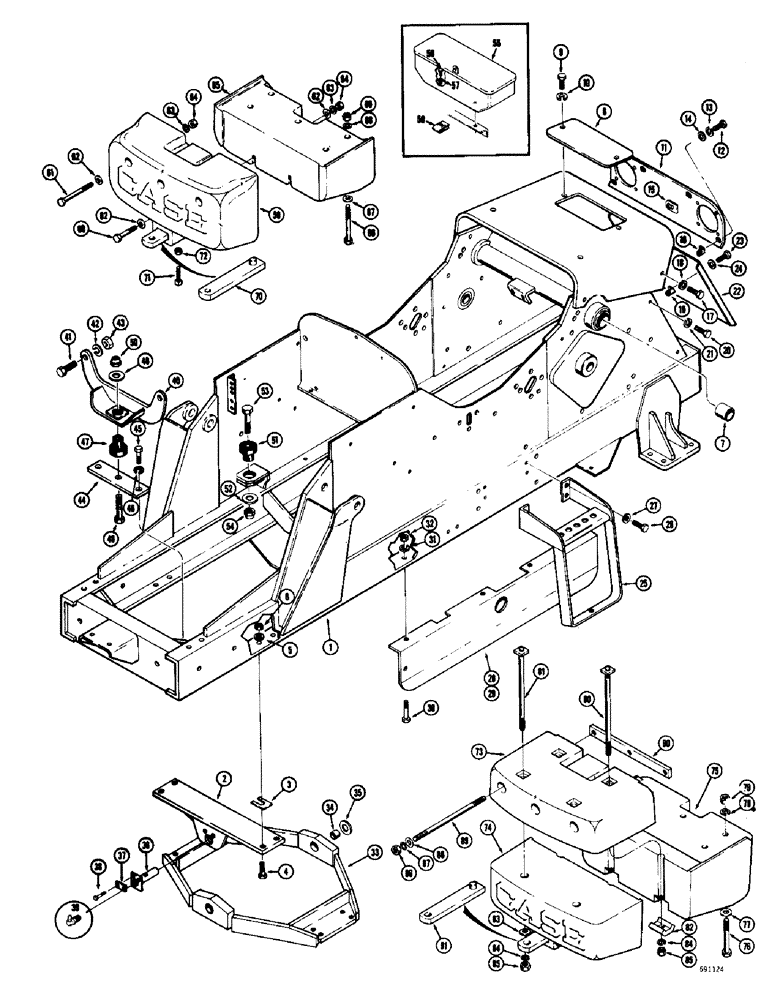

Запчасти Case W10C (136) - CHASSIS, ENGINE MOUNTS AND RELATED PARTS (08) - HYDRAULICS

1

L19322

CHASSIS - engine and frame, Includes: Ref. 2 - 6

1шт.

2

A18790

BRACKET - pivot, rear axle

1шт.

3

A56516

SHIM,.030" Thk

Pivot bracket to chassis .030" Thk

1шт.

4

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

25-1010

NUT,5/8"-11, G5

4шт.

7

A16781

SCREW,7/8" - 9 x 5 1/2", Gr 8

BUSHING - pivot, lift arm

2шт.

8

A17120

COVER - access, front

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

L19204

PLATE - headlight mounting, front

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

14

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated

4шт.

15

131-134

SPRING NUT

- Tinnerman (5/16" - 18 NC)

2шт.

16

A16832

ANGLE

CLIP - mounting, headlight plate

2шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

A16834

CLIP - mounting, front cover

4шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

R18838

COVER - chassis, front

1шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

24

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

4шт.

25

A19610

SPARE PART

STEP - operator compartment

2шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

27

92-8

LOCK WASHER,1/2"

8шт.

28

A18824

PANEL - side, front (R.H.)

1шт.

For R.H. side panel used with optional fenders, see Figure 140.

1шт.

29

A18825

PANEL - side, front (L.H.)

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

7шт.

31

92-6

LOCK WASHER,3/8"

7шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

7шт.

33

A18747

ROD - radius, rear axle, Includes: Ref. 34

1шт.

34

A7707

BUSHING

- mounting, rear axle

2шт.

35

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

- thrust, mounting pin

2шт.

36

A18748

PIN

- pivot, rear axle

2шт.

37

A15157

LOCK ASSY

LOCK - pivot bolt, rear axle

2шт.

38

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

39

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

40

A19063

MOUNT - engine, rear

1шт.

41

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

43

25-1012

NUT,3/4"-10, G5

2шт.

44

A19069

PLATE - engine support

1шт.

45

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

46

92-8

LOCK WASHER,1/2"

2шт.

47

A19066

MOUNTING PARTS

MOUNT - engine rear, rubber

1шт.

48

A19068

WASHER

- rear engine mount

1шт.

49

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

50

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

51

A19067

MOUNTING PARTS

MOUNT - engine front, rubber

2шт.

52

A17516

WASHER

- front engine mount

2шт.

53

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

HHCS - 5/8" - 11 NC x 4-1/4"

2шт.

54

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

55

L10218

BOX - tool

1шт.

56

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

57

195-521

WASHER,5/16", SAE

- plain (5/16") Zinc plated

1шт.

58

131-134

SPRING NUT

- Tinnerman (5/16 - 18 NC) Zinc plated

1шт.

59

A12252

COUNTERWEIGHT - rear (Rear portion), for W9C

1шт.

60

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Rear counterweight for W9C Hex, 3/4"-10 x 4 1/2", G5

2шт.

61

15-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

HHCS - 3/4" - 10 NC x 8", rear counterweight for W9C

3шт.

62

195-45

WASHER,3/4"

Rear counterweight for W9C 3/4"

7шт.

63

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear counterweight for W9C 3/4"

5шт.

64

25-1012

NUT,3/4"-10, G5

Rear counterweight for W9C 3/4"-10, G5

5шт.

65

A12253

COUNTERWEIGHT - rear (Front portion), for W9C

1шт.

66

15-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

HHCS - 3/4" - 10 NC x 8", rear counterweight for W9C

5шт.

67

195-45

WASHER,3/4"

Rear counterweight for W9C 3/4"

5шт.

68

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear counterweight for W9C 3/4"

5шт.

69

25-1012

NUT,3/4"-10, G5

Rear counterweight for W9C 3/4"-10, G5

5шт.

70

A12249

DRAWBAR - rear, counterweight for W9C

1шт.

71

85-1048

SET SCREW,Sq Hd, 5/8"-11 x 3"

SCREW - set, square head (5/8" - 11 NC x 3"), rear counterweight for W9C

1шт.

72

25-1010

NUT,5/8"-11, G5

Rear counterweight for W9C 5/8"-11, G5

1шт.

73

A56006

COUNTERWEIGHT - upper rear, for W10C

1шт.

74

A56005

COUNTERWEIGHT - lower rear, for W10C

1шт.

75

A56004

COUNTERWEIGHT - lower forward, for W10C

1шт.

76

15-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

HHCS - 3/4" - 10 NC x 8", rear counterweight for W10C

5шт.

77

195-45

WASHER,3/4"

Rear counterweight for W10C 3/4"

5шт.

78

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rear counterweight for W10C 3/4"

5шт.

79

25-1012

NUT,3/4"-10, G5

Rear counterweight for W10C 3/4"-10, G5

5шт.

80

L15375

TIE ROD - vertical (Front), rear counterweight for W10C

2шт.

81

L15374

TIE ROD - vertical (Rear), rear counterweight for W10C

2шт.

82

L15749

CRAB - L15375 rod, rear counterweight for W10C

2шт.

83

195-53

WASHER,1" x 2" x .134"

- plain (1") L15374 rod, rear counterweight for W10C

2шт.

84

92-16

LOCK WASHER,1"

WASHER, LOCK, , Rear counterweight for W10C 1"

4шт.

85

25-1016

NUT,1"-8, G5

Rear counterweight for W10C 1"-8, G5

4шт.

86

25-1012

NUT,3/4"-10, G5

Rear counterweight for W10C 3/4"-10, G5

3шт.

87

195-45

WASHER,3/4"

Rear counterweight for W10C 3/4"

3шт.

89

A56076

TIE ROD - horizontal, rear counterweight for W10C

3шт.

90

A56074

PLATE - threaded, rear counterweight for W10C

1шт.

91

A12249

DRAWBAR - rear, counterweight for W10C

1шт.
