Запчасти Case W10C (134) - PLATFORM, FLOOR PLATES AND SEAT (08) - HYDRAULICS

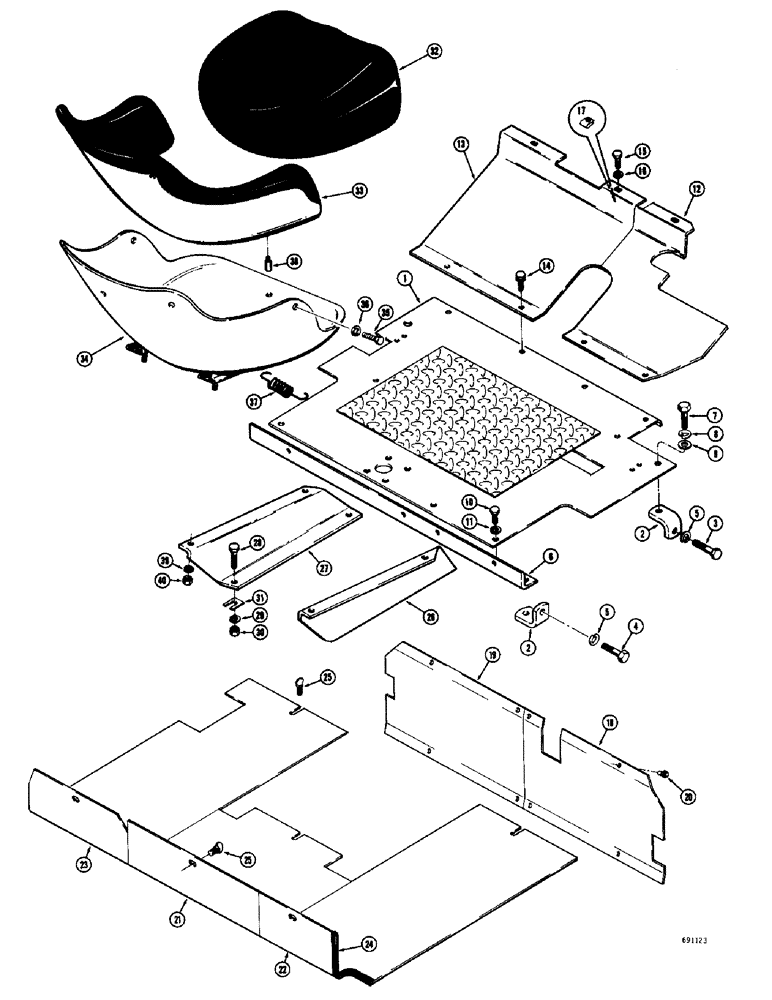

Схема запчастей Case W10C - (134) - PLATFORM, FLOOR PLATES AND SEAT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

A18754

PLATE - platform

1шт.

2

A16828

SUPPORT

- platform and rear angle

4шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

A18762

ANGLE - platform support, rear

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

10

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

L15326

PLATE - floor, front (R.H.)

1шт.

13

A18753

PLATE - floor, front (L.H.)

1шт.

14

187-1009

BOLT

SCREW - self-tapping (1/4" - 20 NC x 3/8")

4шт.

15

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

17

131-135

SPRING NUT,Tinn, U, 1/4"-20

3шт.

18

A18760

PANEL - operator compartment, front (R.H.)

1шт.

19

A18761

PANEL - operator compartment, front (L.H.)

1шт.

20

187-1009

BOLT

SCREW - self-tapping (1/4" - 20 NC x 3/8")

1шт.

21

A18757

SHEET

PANEL - operator compartment, top (Center)

1шт.

22

A18750

PANEL

- operator compartment, top (R.H.)

1шт.

23

A18751

SHIELD

PANEL - operator compartment, top (L.H.)

1шт.

24

L13529

MOULDING - rubber

1шт.

25

183-200

SCREW,1/4"-20 x 1/2"

- thumb (1/4" - 20 NC x 1/2")

6шт.

26

A18826

BRACKET

SUPPORT - seat, R.H.

1шт.

27

A18827

BRACKET

SUPPORT - seal, L.H.

1шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

29

92-5

LOCK WASHER,5/16"

4шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

31

A17197

SHIM

- seat, Serial Range: support-frame

6шт.

A17211

SEAT

ASSEMBLY - operator, Includes: Ref. 32 - 40

1шт.

32

A18407

CUSHION ASSY.

CUSHION - seat

1шт.

33

A18408

BACKREST

CUSHION - back rest

1шт.

34

NSS

NOT SOLD SEPARAT

SHELL - seal

1шт.

35

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

36

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

5шт.

37

L30533

VALVE SPRING

SPRING - adjusting

2шт.

38

L30534

X

PIN - cushion alignment

2шт.

39

92-5

LOCK WASHER,5/16"

4шт.

40

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

Выбрано товаров: 41
