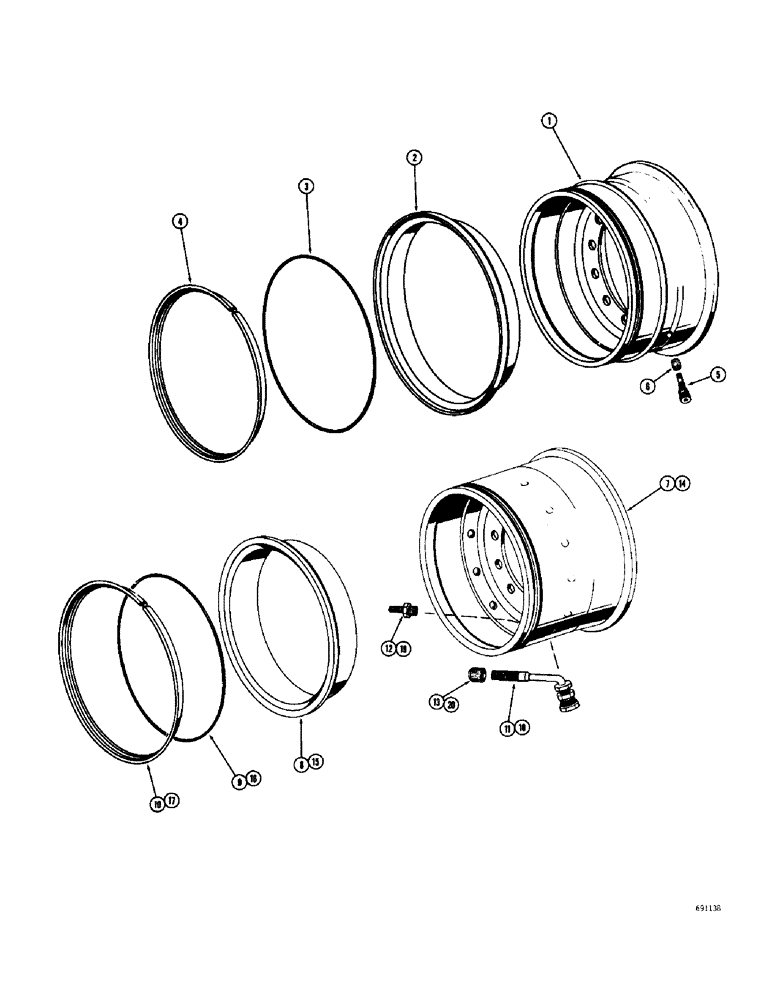

Запчасти Case W10C (192) - DRIVE WHEELS, USED ON MODELS WITH 13.00 X 24 AND 14.00 X 24 TIRES (06) - POWER TRAIN

A12524

WHEEL

ASSEMBLY - drive, Includes: Ref. 1 - 4

4шт.

1

A13263

WHEEL (STEERING)

RIM AND DISC - wheel

1шт.

2

A13097

RING

- side, wheel rim

1шт.

3

A13099

O-RING,22 1" ID x 0.25"

SEAL - "O"ring, side ring

1шт.

4

A13098

RING

LOCK - side ring

1шт.

5

A20058

VALVE STEM

-Tire

4шт.

6

372-10000

CAPS - tire valve

4шт.

7

A19498

WHEEL - drive, used on models with 15.5 x 25 tires

4шт.

8

A19122

RING

- side, wheel rim, used on models with 15.5 x 25 tires

4шт.

9

A19101

O-RING,6.6mm Thk x 590.55mm ID

SEAL - "O"ring, side ring, used on models with 15.5 x 25 tires

1шт.

10

A19123

RING

LOCK - side ring, used on models with 15.5 x 25 tires

4шт.

11

L11405

VALVE

- tire, used on models with 15.5 x 25

4шт.

12

L11406

ADAPTER

- tire valve, used on models with 15.5 x 25

4шт.

13

L33706

VALVE

CAP - tire valve, used on models with 15.5 x 25

4шт.

14

A19098

WHEEL - drive, used on models with 17.5 x 25 tires

4шт.

15

A19099

RING

- side, wheel rim, used on models with 17.5 x 25 tires

4шт.

16

A19101

O-RING,6.6mm Thk x 590.55mm ID

SEAL - "O"ring, side ring, used on models with 17.5 x 25 tires

4шт.

17

A19100

LOCKING RING

LOCK - side ring, used on models with 17.5 x 25 tires

4шт.

18

L11405

VALVE

- tire, used on models with 17.5 x 25

4шт.

19

L11406

ADAPTER

- tire valve, used on models with 17.5 x 25

4шт.

20

L33706

VALVE

CAP - tire valve, used on models with 17.5 x 25

4шт.
