Артикул
Название
Примечание
Количество
L15394

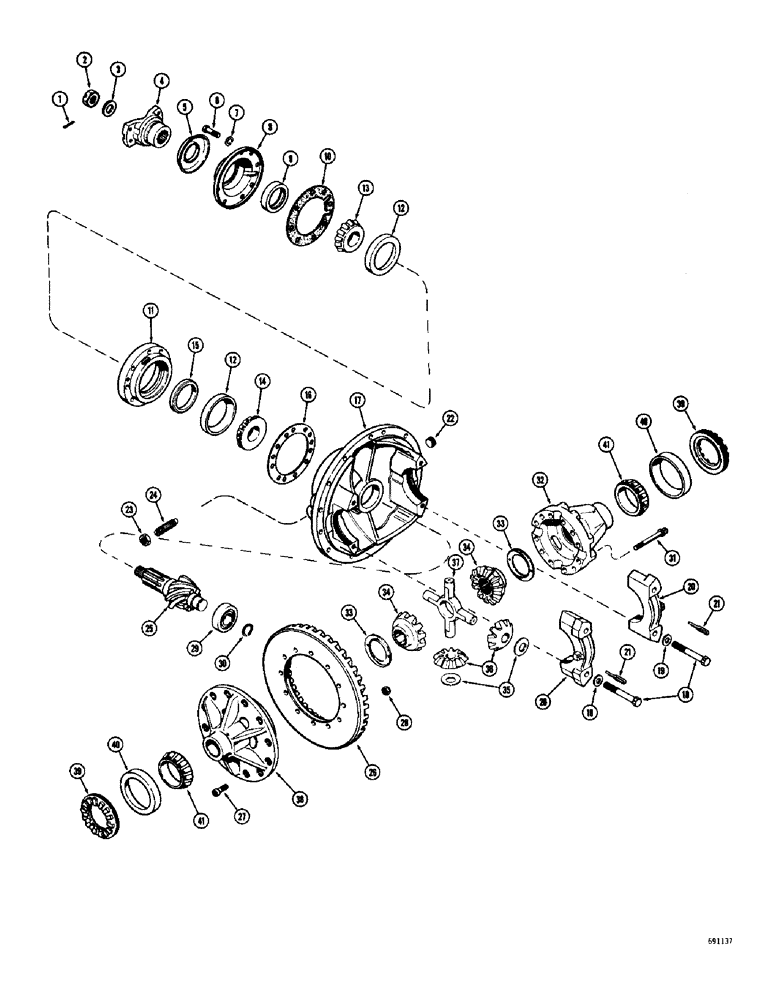

AXLE ASSEMBLY - rear steering, complete (PS - 155 HX - 2), Includes: Ref. 1 - 41
1шт.
2
L30731
SLOTTED NUT
- pinion, Serial Range: gear-yoke
1шт.
3
A13124
WASHER
- pinion gear nut
1шт.
4
A19891
YOKE - drive shaft
1шт.
5
A12952
CYLINDER END CAP
SLINGER - oil
1шт.
6
113-306
BOLT (SPREADER)
HHCS - 7/16" - 14 NC x 1-3/4"
8шт.
7
92-7
LOCK WASHER,7/16"
8шт.
A12954
COVER ASSY
SEAL AND RETAINER ASSEMBLY - oil, Includes: Ref. 8 and 9
1шт.
8
NSS
NOT SOLD SEPARAT
RETAINER - oil seal
1шт.
9
A16901
SEAL
- oil, pinion shaft
1шт.
10
A12955
GASKET
- bearing cage
1шт.
A12959
CAGE
ASSEMBLY - pinion bearing, Includes: Ref. 11 and 12
1шт.
11
NSS
NOT SOLD SEPARAT
CAGE - pinion bearing
1шт.
12
A12949
BEARING CUP
CUP - bearing, inner and outer
2шт.
13
A12950
ROLLER BEARING,1.75" ID x 1.0594"
CONE - bearing, outer
1шт.
14
A9841
ROLLER BEARING,1.875" ID x 1.0594"
CONE - bearing, inner
1шт.
15
A12960
SPACER
- bearing (.219")
1шт.
15
A12961
SPACER
- bearing (.220")
1шт.
15
A12962
SPACER
- bearing (.221")
1шт.
15
A12963
SPACER
- bearing (.222")
1шт.
15
A12964
SPACER
- bearing (.223")
1шт.
15
A12965
SHIM,.224" Thk
SPACER, , Bearing .224" Thk
1шт.
15
A12966
SPACER
- bearing (.230")
1шт.
15
A12967
SPACER
- bearing (.236")
1шт.
15
A12968
SPACER
- bearing (.242")
1шт.
15
A12969
SPACER
- bearing (.248")
1шт.
15
A12970
SPACER
- bearing (.254")
1шт.
16
A12956
SHIM,.005" Thk
Bearing cage .005" Thk
3шт.
16
A12957
SHIM,.010" Thk
Bearing cage .010" Thk
2шт.
16
A12958
SHIM,.003" Thk
Bearing cage .003" Thk
1шт.
L30220
CARRIER
ASSEMBLY - differential, Includes: Ref. 17 - 21
1шт.
17
NSS
NOT SOLD SEPARAT
CARRIER - differential
1шт.
18
A12938
SCREW,5/8" - 11 x 4 1/2"
BOLT - bearing, Serial Range: cap-carrier
4шт.
19
L30737
WASHER
- bearing, Serial Range: cap-bolt
4шт.
20
NSS
NOT SOLD SEPARAT
CAP AND DOWEL - differential carrier bearing
2шт.
21
A18196
HARDWARE
PIN - lock
2шт.
22
221-25
PLUG,Sq Soc, 3/4"-14 NPTF
- pipe, square socket head (3/4" NPT)
1шт.
23
A13121
X
NUT - lock, thrust screw
1шт.
24
L31659
BOLT,7/8" x 3 5/8"
SCREW - adjusting, thrust bearing
1шт.
L34008
GEAR SET
- ring and pinion (Matched set), Includes: Ref. 25 - 28
1шт.
25
NSS
NOT SOLD SEPARAT
GEAR - pinion, differential
1шт.
26
NSS
NOT SOLD SEPARAT
GEAR - ring, differential
1шт.
27
A16437
BOLT
- ring, Serial Range: gear-case
12шт.
1
132-54
COTTER PIN,1/8" x 1 3/4"
Pin, Split (Cotter), 1/8" x 1 3/4"
1шт.
28
129-282
SLOTTED NUT
- hex., slotted (1/2" - 20 NF)
12шт.
29
L30387
ROLLER BEARING
BEARING - drive pinion
1шт.
30
A15442
LOCK
SNAP RING - bearing to drive pinion
1шт.
L30670
DIFFERENTIAL
ASSEMBLY - rear axle, Includes: Ref. 31 - 38
1шт.
31
L30667
BOLT
- differential case halves (Short)
4шт.
31
L30668
SCREW
BOLT - differential case halves (Long)
8шт.
32
NSS
NOT SOLD SEPARAT
CASE - plain half
1шт.
33
A12979
WASHER
- thrust, side gear
2шт.
34
A12978
GEAR
- side, differential
2шт.
35
A12976
WASHER
- thrust, pinion gear
4шт.
36
A12975
GEAR
- pinion, differential
4шт.
37
A12974
U-JOINT SPIDER
SPIDER - pinion gear
1шт.
38
NSS
NOT SOLD SEPARAT
CASE - flange half
1шт.
39
A12942
GASKET
RING - bearing adjusting
2шт.
40
A12946
BEARING CUP
CUP - bearing, differential case
2шт.
41
A12944
ROLLER BEARING,2.8125" ID x 1.1875"
CONE - bearing, differential case
2шт.
Выбрано товаров: 60
