Запчасти Case W10C (186) - L15394 REAR STEERING AXLE, REAR BRAKE DRUM AND LININGS (06) - POWER TRAIN

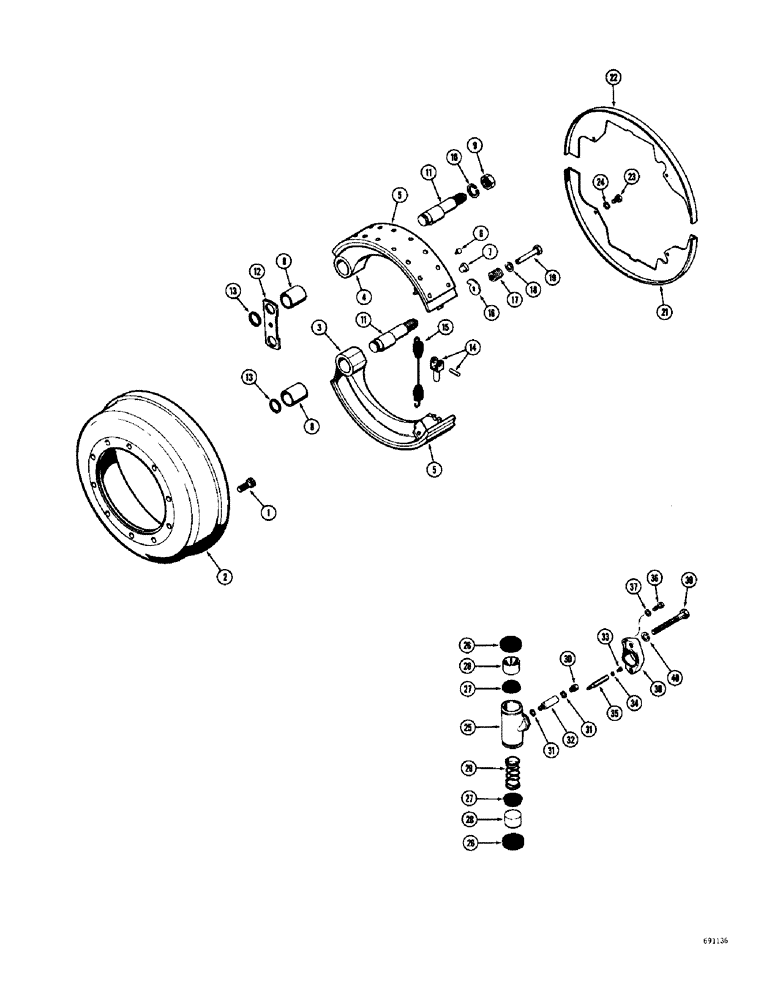

Схема запчастей Case W10C - (186) - L15394 REAR STEERING AXLE, REAR BRAKE DRUM AND LININGS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L15394

AXLE ASSEMBLY - rear steering, complete (PS-155 HX-2), Includes: Ref. 1 - 24

1шт.

1

A14962

BOLT,5/8" x 1 1/2", Gr 8

- brake drum to wheel hub

20шт.

2

A15045

DRUM

- brake, rear

2шт.

A15072

BRAKE SHOE

SHOE AND LINING - brake, R.H. upper and L.H. lower

2шт.

A15073

SHOE

AND LINING - brake, L.H. upper and R.H. lower, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

SHOE - brake, R.H. upper and L.H. lower

2шт.

4

NSS

NOT SOLD SEPARAT

SHOE - brake, L.H. upper and R.H. lower

1шт.

5

A14998

KIT

- brake lining, Includes: Ref. 6

1шт.

6

A15060

RIVET

- lining

64шт.

7

A19884

PIN

- shoe guide

1шт.

8

A15062

BUSHING

- brake shoe

1шт.

9

A15063

NUT

- retaining, anchor pin

4шт.

10

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

11

L30586

PIN

- anchor, brake shoe

4шт.

12

L30584

DRAG LINK

LINK - brake

2шт.

13

A28253

RING

SNAP RING - brake shoe link to anchor pin

4шт.

14

A14996

LINK

YOKE AND PIN - cylinder to brake shoe

4шт.

15

A15071

SPRING

- brake shoe return

2шт.

16

A13201

SHOE

CAM - brake adjusting

4шт.

17

A13023

SPRING

- adjusting cam

4шт.

18

L30582

WASHER

- brake adjusting cam

8шт.

19

L30593

BOLT

BOLT - brake adjusting cam

4шт.

20

L30595

KIT

SHIELD - dust, lower R.H. (Not illustrated)

1шт.

21

L30596

SHIELD

- dust, lower L.H. and upper R.H.

2шт.

22

L30597

SHIELD - dust, upper L.H.

1шт.

23

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

CAP SCREW - dust shield

8шт.

24

92-6

LOCK WASHER,3/8"

8шт.

A19980

CYLINDER

ASSEMBLY - brake, rear, wheel, Includes: Ref. 25 - 40

2шт.

25

NSS

NOT SOLD SEPARAT

BODY - brake cylinder, rear wheel

1шт.

A19981

KIT

- repair, cylinder, rear brake wheel, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

BOOT - cylinder, rear brake wheel

2шт.

27

NSS

NOT SOLD SEPARAT

CUP - piston, rear brake wheel cylinder

2шт.

28

A15000

PISTON ASSY.

PISTON - cylinder, rear brake wheel

2шт.

29

A15053

SPRING

- piston return, rear brake wheel cylinder

1шт.

30

A12989

ADAPTER

FITTING - inlet, rear brake wheel cylinder

2шт.

31

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet fitting, rear brake wheel cylinder

4шт.

32

A15054

EXTENSION

- inlet fitting,rear brake wheel cylinder

2шт.

33

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Rear brake wheel cylinder Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Rear brake wheel cylinder 1/4"

2шт.

35

A15056

SCREW,Bleed, 1/4" - 28 x 2 15/16"

- brake bleeder, rear wheel cylinder

2шт.

36

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

HHCS - 3/8" - 16 NC x 7/8" (Wheel cylinder to adapter), rear brake

4шт.

37

92-6

LOCK WASHER,3/8"

rear brake wheel cylinder 3/8"

4шт.

38

L30602

ADAPTER

- wheel cylinder to steering housing, rear brake

2шт.

39

113-322

HHCS - 7/16" - 14 NC x 4-1/2" (Adapter to steering housing), rear brake wheel cylinder

4шт.

40

92-7

LOCK WASHER,7/16"

rear brake wheel cylinder 7/16"

4шт.

Выбрано товаров: 45
