Запчасти Case W10C (182) - L15394 REAR STEERING AXLE, PLANETARY AND RELATED PARTS (06) - POWER TRAIN

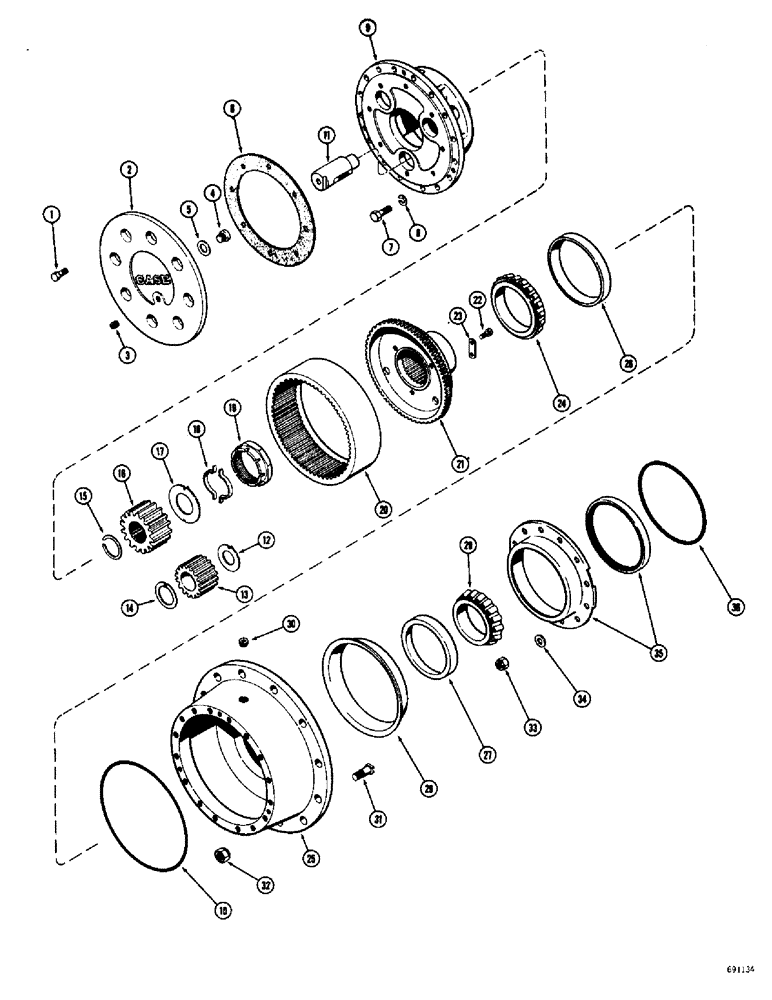

Схема запчастей Case W10C - (182) - L15394 REAR STEERING AXLE, PLANETARY AND RELATED PARTS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L15394

AXLE ASSEMBLY - rear steering, complete (PS-155 HX-2), Includes: Ref. 1 - 36

1шт.

1

L30675

SCREW

BOLT - spider cover

16шт.

2

A14973

X

COVER - planetary spider

2шт.

3

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, oil level (1/4" NPT)

2шт.

4

A12980

BUTTON

- thrust, drive shaft

2шт.

5

L30588

SHIM

- thrust button (.010")

1шт.

5

L30589

SHIM - thrust button (.015")

1шт.

6

A14971

GASKET

-, Serial Range: cover-spider

2шт.

7

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

HHCS - 1/2" - 13 NC x 1-5/8" (Spider to wheel hub)

32шт.

8

92-8

LOCK WASHER,1/2"

32шт.

9

A14979

U-JOINT SPIDER

SPIDER - planetary

2шт.

10

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

SEAL - "O"ring, spider to hub

2шт.

11

A19885

SHAFT

- planetary pinion

6шт.

12

A19886

WASHER

- pinion thrust, inner

6шт.

13

A14977

GEAR

PINION - planetary

6шт.

14

A14967

WASHER

- pinion thrust, outer

6шт.

15

A14969

RING, SNAP

RING - retainer, sun gear

2шт.

16

A14976

GEAR

- sun

2шт.

17

A14966

WASHER

- thrust, sun gear

2шт.

18

A14970

LOCK ASSY

LOCK - bearing nut

4шт.

19

A14965

NUT

- hub bearing

2шт.

20

A14975

GEAR

- ring, pinion

2шт.

21

A14978

HUB

- ring gear

2шт.

22

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

- lock plate

16шт.

23

A14964

LOCK ASSY

PLATE - lock

8шт.

24

A14960

BEARING

CONE - bearing, outer

2шт.

L30610

HUB ASSEMBLY - drive wheel, Includes: Ref. 25 - 27

2шт.

25

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

26

A14961

BEARING CUP

CUP - bearing, outer

1шт.

27

A14985

BEARING CUP

CUP - bearing, inner

1шт.

28

A15020

ROLLER BEARING,4" ID x 1.4219"

CONE - bearing, inner

2шт.

29

A15418

SLINGER

- oil

2шт.

30

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - pipe, magnetic (3/4" NPT)

2шт.

31

A13112

STUD

- drive, Serial Range: wheel-hub

24шт.

32

A12522

WHEEL NUT

- drive wheel bolt

24шт.

33

A15033

LOCK NUT

- retainer, oil seal to steering housing

24шт.

34

A15036

WASHER

- retainer nut

24шт.

35

L30577

RETAINER

SEAL AND RETAINER - hub bearing

2шт.

36

A15025

O-RING,8 3" ID x 9" OD x 1/8"

SEAL - "O"ring, retainer to steering housing

2шт.

Выбрано товаров: 39
