Запчасти Case W10C (178) - L15393 FRONT RIGID AXLE, DIFFERENTIAL (06) - POWER TRAIN

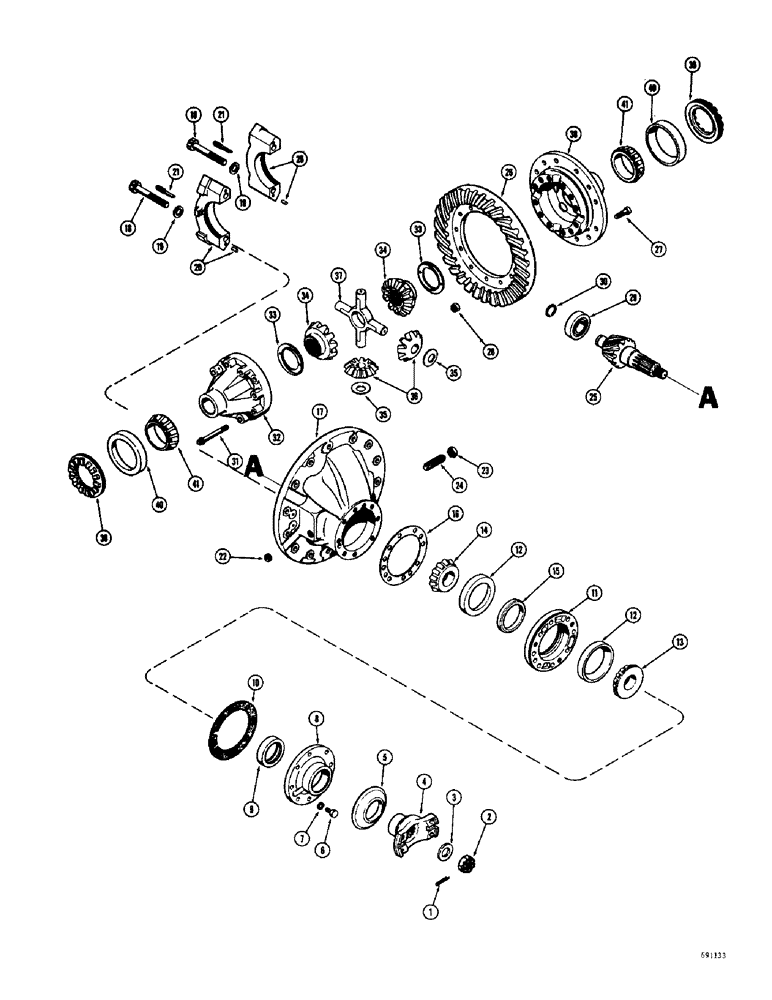

Схема запчастей Case W10C - (178) - L15393 FRONT RIGID AXLE, DIFFERENTIAL (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L15393

AXLE ASSEMBLY - front rigid, complete (PR - 107 HX - 37), Includes: Ref. 1 - 38

1шт.

2

L30731

SLOTTED NUT

- pinion, Serial Range: gear-yoke

1шт.

3

A13124

WASHER

- pinion gear nut

1шт.

4

A19891

YOKE - drive shaft

1шт.

5

A12952

CYLINDER END CAP

SLINGER - oil

1шт.

6

113-306

BOLT (SPREADER)

HHCS - 7/16" - 14 NC x 1-3/4"

8шт.

7

92-7

LOCK WASHER,7/16"

8шт.

A12954

COVER ASSY

SEAL AND RETAINER ASSEMBLY - oil, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - oil seal

1шт.

9

A16901

SEAL

- oil, pinion shaft

1шт.

10

A12955

GASKET

- bearing cage

1шт.

A12959

CAGE

ASSEMBLY - pinion bearing, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

12

A12949

BEARING CUP

CUP - bearing, inner and outer

2шт.

13

A12950

ROLLER BEARING,1.75" ID x 1.0594"

CONE - bearing, outer

1шт.

14

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing, inner

1шт.

15

A12960

SPACER

- bearing (.219")

1шт.

15

A12961

SPACER

- bearing (.220")

1шт.

15

A12962

SPACER

- bearing (.221")

1шт.

15

A12963

SPACER

- bearing (.222")

1шт.

15

A12964

SPACER

- bearing (.223")

1шт.

15

A12965

SHIM,.224" Thk

SPACER, , Bearing .224" Thk

1шт.

15

A12966

SPACER

- bearing (.230")

1шт.

15

A12967

SPACER

- bearing (.236")

1шт.

15

A12968

SPACER

- bearing (.242")

1шт.

15

A12969

SPACER

- bearing (.248")

1шт.

15

A12970

SPACER

- bearing (.254")

1шт.

16

A12956

SHIM,.005" Thk

Bearing cage .005" Thk

3шт.

16

A12957

SHIM,.010" Thk

Bearing cage .010" Thk

2шт.

16

A12958

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

L30220

CARRIER

ASSEMBLY - differential, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

18

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - bearing, Serial Range: cap-carrier

4шт.

19

L30737

WASHER

- bearing cap bolt

4шт.

20

NSS

NOT SOLD SEPARAT

CAP AND DOWEL - differential carrier bearing

2шт.

21

A18196

HARDWARE

PIN - lock

2шт.

22

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (3/4" NPT)

1шт.

23

A13121

X

NUT - lock, thrust screw

1шт.

24

L30949

SCREW

- adjusting, thrust bearing

1шт.

L34008

GEAR SET

- ring and pinion (Matched set), Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

26

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

1

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

27

A16437

BOLT

- ring, Serial Range: gear-case

12шт.

28

129-282

SLOTTED NUT

- hex., slotted (1/2" - 20 NF)

12шт.

29

A19892

ROLLER BEARING,1.378 mm ID x 2.8346 mm OD

BEARING - drive pinion

1шт.

30

A15442

LOCK

SNAP RING - bearing to drive pinion

1шт.

L30670

DIFFERENTIAL

ASSEMBLY - rear axle, Includes: Ref. 31 - 34

1шт.

31

L30667

BOLT

- differential case halves (Short)

4шт.

31

L30668

SCREW

BOLT - differential case halves (Long)

8шт.

32

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

33

A12979

WASHER

- thrust, side gear

2шт.

34

A12978

GEAR

- side, differential

2шт.

35

A12976

WASHER

- thrust, pinion gear

4шт.

36

A12975

GEAR

- pinion, differential

4шт.

37

A12974

U-JOINT SPIDER

SPIDER - pinion gear

1шт.

38

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

39

A12942

GASKET

RING - bearing adjusting

2шт.

40

A12946

BEARING CUP

CUP - bearing, differential case

2шт.

41

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing, differential case

2шт.

Выбрано товаров: 60
