Запчасти Case W10C (170) - L30054 CONVERTER CHARGING PUMP (06) - POWER TRAIN

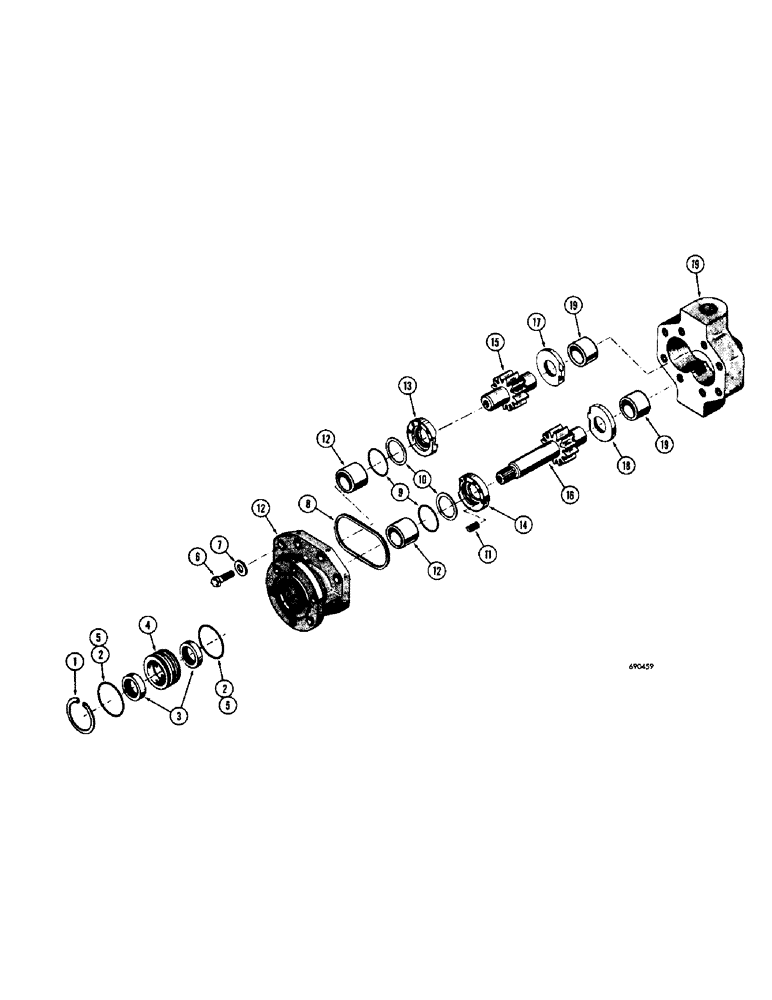

Схема запчастей Case W10C - (170) - L30054 CONVERTER CHARGING PUMP (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L30054

PUMP

ASSEMBLY - converter charging, Includes: Ref. 1 - 19

1шт.

A18338

SEAL

KIT - drive shaft, Includes: Ref. 1, 3 and 4

1шт.

1

NSS

NOT SOLD SEPARAT

RING - "O"ring, retainer

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - drive shaft

2шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - seal, drive shaft

1шт.

A18335

KIT

SEAL KIT - minor overhaul, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - "O"ring, retainer

2шт.

6

NSS

NOT SOLD SEPARAT

BOLT - special, cover to body mounting

8шт.

7

NSS

NOT SOLD SEPARAT

WASHER - special, cover to body mounting

8шт.

8

NSS

NOT SOLD SEPARAT

SEAL - quad ring, Serial Range: cover-body

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - "O"ring, thrust plate

2шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, thrust plate seal

2шт.

11

NSS

NOT SOLD SEPARAT

SPRING - thrust plate retaining

2шт.

12

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - pump

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - thrust, driven gear

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - thrust, drive gear

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - drive

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - rear thrust, drive gear

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - rear thrust, drive gear

1шт.

19

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - pump

1шт.

Выбрано товаров: 21
