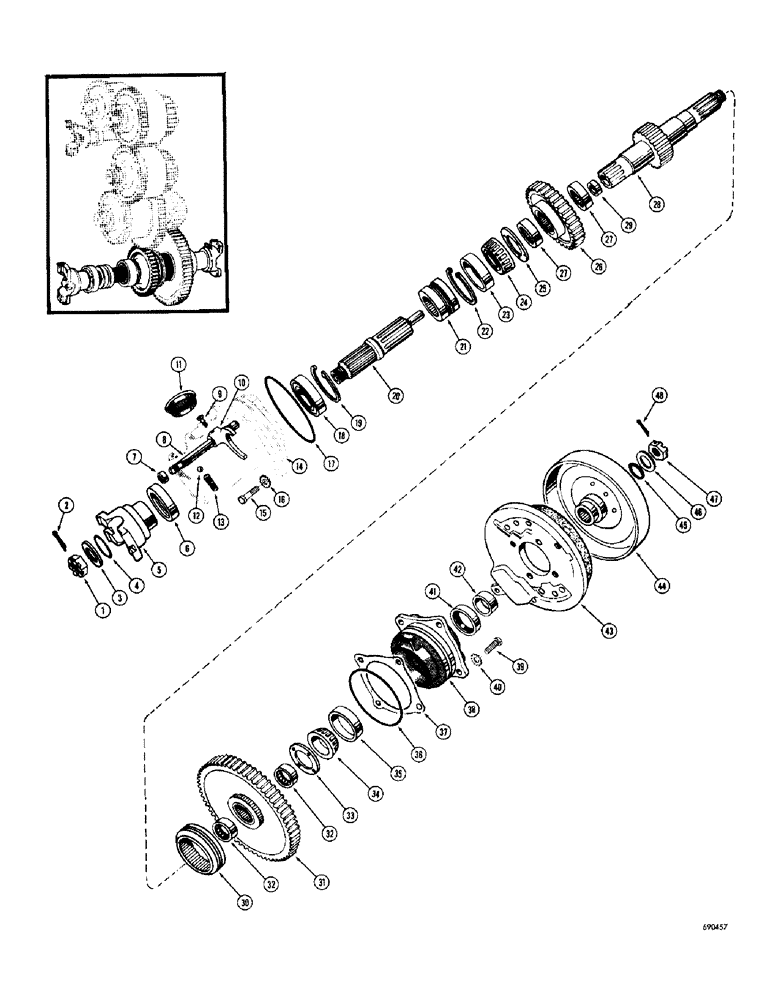

Запчасти Case W10C (162) - TRANSMISSION, TRANSMISSION OUTPUT SHAFT AND REAR AXLE SHIFT-OUT (06) - POWER TRAIN

L10715

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 48

1шт.

1

A17926

FLANGE NUT

- flange, rear output

1шт.

3

A17938

WASHER

- flange nut

1шт.

4

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O"ring, flange

1шт.

5

A19928

FLANGE

- shaft, rear output

1шт.

6

L30014

OIL SEAL

- oil, rear output shaft

1шт.

7

A17955

SEAL

- oil, shif-out rail

1шт.

8

A17952

RAIL - shift-out

1шт.

9

A17958

LOCK SCREW,3/8" - 24 x 27/32"

SCREW - lock, shift-out fork

1шт.

10

A17953

SHIFTER FORK

FORK - shift-out

1шт.

11

A17957

PLUG

- shift-out housing

1шт.

12

211-11

BALL,3/8" Dia

- detent, shift-out rail (.) 3/8" Dia

1шт.

13

A17956

SPRING

- detent, shift-out rail

1шт.

14

A17964

HOUSING - shift-out

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

16

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

17

A18317

RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

SEAL - "O"ring, Serial Range: housing-case

1шт.

18

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - disconnect shaft

1шт.

19

A17965

RING

SNAP RING - shaft bearing

1шт.

20

A17967

SHAFT

- transmission disconnect

1шт.

21

A17968

HUB

- shift-out

1шт.

22

A17965

RING

SNAP RING - bearing, front output shaft

1шт.

A17978

BEARING ASSY,1.6885" ID x 3.1572" OD x 1.008"

BEARING ASSEMBLY - front output shaft, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

24

NSS

NOT SOLD SEPARAT

CONE - bearing

1шт.

25

A17977

WASHER

- thrust, high gear

1шт.

L30045

GEAR WHEEL

GEAR ASSEMBLY - high range, output shaft, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

GEAR - high range

1шт.

27

A17969

ROLLER BEARING

BEARING - gear

2шт.

A17975

SHAFT

ASSEMBLY - front output, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT - front output

1шт.

29

A17976

BUSHING

- pilot, output shaft

1шт.

30

A17963

HUB - range shift

1шт.

L30044

GEAR

ASSEMBLY - low range, output shaft, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

GEAR - low range

1шт.

32

A17969

ROLLER BEARING

BEARING - low gear

2шт.

33

A17977

WASHER

- thrust, low gear

1шт.

A17978

BEARING ASSY,1.6885" ID x 3.1572" OD x 1.008"

BEARING ASSEMBLY - front output shaft, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

CONE - bearing

1шт.

35

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

2

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

36

A18317

RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

SEAL - "O"ring, bearing, Serial Range: cap-case

1шт.

37

A17983

SHIM,.004" Thk

Bearing cap .004" Thk

1шт.

48

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

37

A17984

SHIM,.007" Thk

Bearing cap .007" Thk

1шт.

37

A17985

SHIM,.010" Thk

Bearing cap .010" Thk

1шт.

38

A17974

FILTER ASSY

CAP - bearing, output shaft

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

40

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

41

L30014

OIL SEAL

- oil, front output shaft

1шт.

42

A17979

SPACER - flange

1шт.

43

A17980

BRAKE

ASSEMBLY - parking (Parts list Figure 160)

1шт.

44

A19927

FLANGE

- front output and brake

1шт.

45

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O"ring, flange

1шт.

46

A17938

WASHER

- flange nut

1шт.

47

A17926

FLANGE NUT

- flange

1шт.
