Запчасти Case W10C (154) - D22660 CONVERTER OIL FILTER (06) - POWER TRAIN

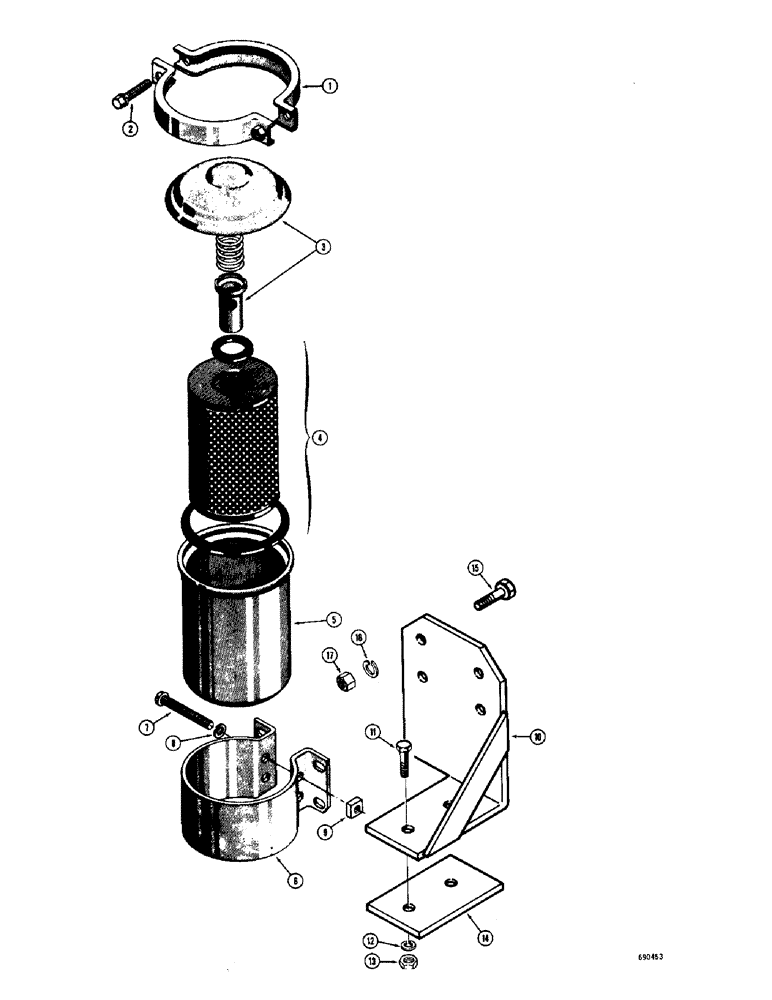

Схема запчастей Case W10C - (154) - D22660 CONVERTER OIL FILTER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D22660

AIR INTAKE TUBE

FILTER ASSEMBLY - converter oil, Includes: Ref. 1 - 9

1шт.

1

D22658

BOLT

CLAMP - cover

2шт.

2

D22658

BOLT

- cover clamp

2шт.

3

D22659

BOLT (SPREADER)

COVER ASSEMBLY - filter (Includes relief valve)

1шт.

4

A13211

FILTER, ENGINE OIL

ELEMENT KIT - filter

1шт.

5

D22653

COVER

BODY - filter element

1шт.

6

A13210

BRACKET - filter mounting

1шт.

7

75-540

SCREW

- machine, round head (5/16" - 18 NC x 2-1/2")

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

25-225

SQUARE NUT,Sq, 5/16"-24

- square (5/16" - 18 NC)

2шт.

10

A17319

BRACKET - filter retaining

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

A17322

PAD - filter bracket

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Filter to bracket Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

Выбрано товаров: 18
