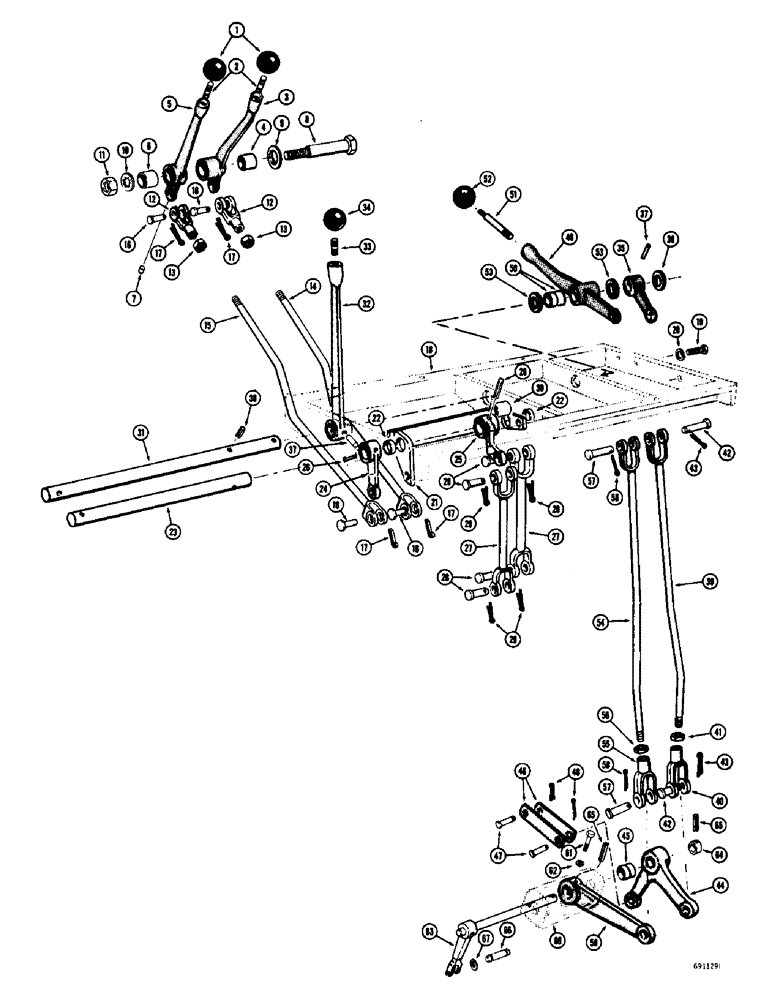

Запчасти Case W10C (148) - TRANSMISSION CONTROLS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A18852
KNOB
- control lever
2шт.
2
A16775
STUD
- control lever
2шт.
3
A17170
CONTROL LEVER
LEVER - control, power range, Includes: Ref. 4
1шт.
4
L10083
BUSHING
- lever
1шт.
5
A17171
LEVER - control, forward - reverse, Includes: Ref. 6 and 7
1шт.
6
L10083
BUSHING
- lever
1шт.
7
A19515
PIN - neutral start switch
1шт.
8
A17175
PIN
- pivot, control lever
1шт.
9
A26462
WASHER
- pivot pin
1шт.
10
193-32
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, Int Tooth, 1/2"
1шт.
11
25-158
JAM NUT,Jam, 1/2"-20, G5
- hex., jam (1/2" - 20 NF)
1шт.
12
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - rod to control levers
2шт.
13
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex., jam (3/8" - 24 NF)
2шт.
14
A18864
ROD - power range lever to lower pivot lever
1шт.
15
A18865
ROD - forward - reverse lever to lower pivot lever
1шт.
16
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
4шт.
17
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
4шт.
18
A18854
FRAME - seat support and transmission control mounting
1шт.
19
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
4шт.
20
92-8
LOCK WASHER,1/2"
4шт.
21
A17183
LEVER
- pivot, power range control, Includes: Ref. 22
1шт.
22
A17186
BUSHING
- lever
2шт.
23
A18863
SHAFT - lever mounting
1шт.
24
A17191
LEVER
- pivot, forward - reverse (Outer)
1шт.
25
A17190
CONTROL LEVER
LEVER - pivot forward - reverse (Inner)
1шт.
27
A17195
FILTER ASSY
ROD - control, Serial Range: lever-transmission
2шт.
28
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
4шт.
29
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
4шт.
30
B18239
SPACER,3/4" Pipe x 3/4"
- pivot lever
1шт.
31
A18862
SHAFT - mounting, range selector and rear axle shift-out
1шт.
32
A17193
LEVER - range selector, mechanical
1шт.
33
A16775
STUD
- control lever
1шт.
34
A18852
KNOB
- control lever
1шт.
35
A17194
LEVER
- pivot, range control
1шт.
36
A26462
WASHER
-, Serial Range: lever-frame
1шт.
38
138-136
LOCK PIN,1/4" x 1 1/4", Slotted
PIN, 1/4" x 1 1/4", Slotted
1шт.
39
A14085
ROD - connecting, lever to range selector bellcrank
1шт.
40
213-6
ADJUSTABLE CLEVIS,1/2"-20 x 3"
YOKE - rod end
1шт.
41
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
1шт.
42
141-6
CLEVIS PIN,1/2" x 1.360"
PIN - yoke (1/2")
2шт.
43
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
44
A17158
BELLCRANK - yoke to valve link, Includes: Ref. 45
1шт.
45
A28042
BUSHING
- bellcrank
2шт.
46
A17168
LINK
- connecting, bellcrank to range selector spool
2шт.
47
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
2шт.
48
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
2шт.
49
A17187
CONTROL LEVER
LEVER - control, rear axle shift-out, Includes: Ref. 50
1шт.
50
A12018
BUSHING
- control lever
2шт.
51
A17198
ROD
EXTENSION - control lever
1шт.
52
A18852
KNOB
- control lever
1шт.
53
A26462
WASHER
- lever spacer
1шт.
54
A14085
ROD - connecting control lever to shift-out control
1шт.
55
213-6
ADJUSTABLE CLEVIS,1/2"-20 x 3"
YOKE - rod end
1шт.
56
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
1шт.
57
141-6
CLEVIS PIN,1/2" x 1.360"
PIN - yoke (1/2")
2шт.
58
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
2шт.
59
A17164
LEVER
- shift-out, lower
1шт.
60
A17155
BRACKET
- mounting, pivot shaft
1шт.
61
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
62
92-8
LOCK WASHER,1/2"
2шт.
63
L12339
SHAFT
- rear axle shift-out
1шт.
64
A17167
COLLAR - shaft retainer
1шт.
65
135-342
GROOVED PIN,3/16" x 1 1/4", Type F
PIN, GROOVED, 3/16" x 1 1/4", Type F
2шт.
66
L10118
PIN
- shift-out control to valve stool
1шт.
67
A27795
RING
- pin retaining
2шт.
Выбрано товаров: 67
