Артикул
Название
Примечание
Количество

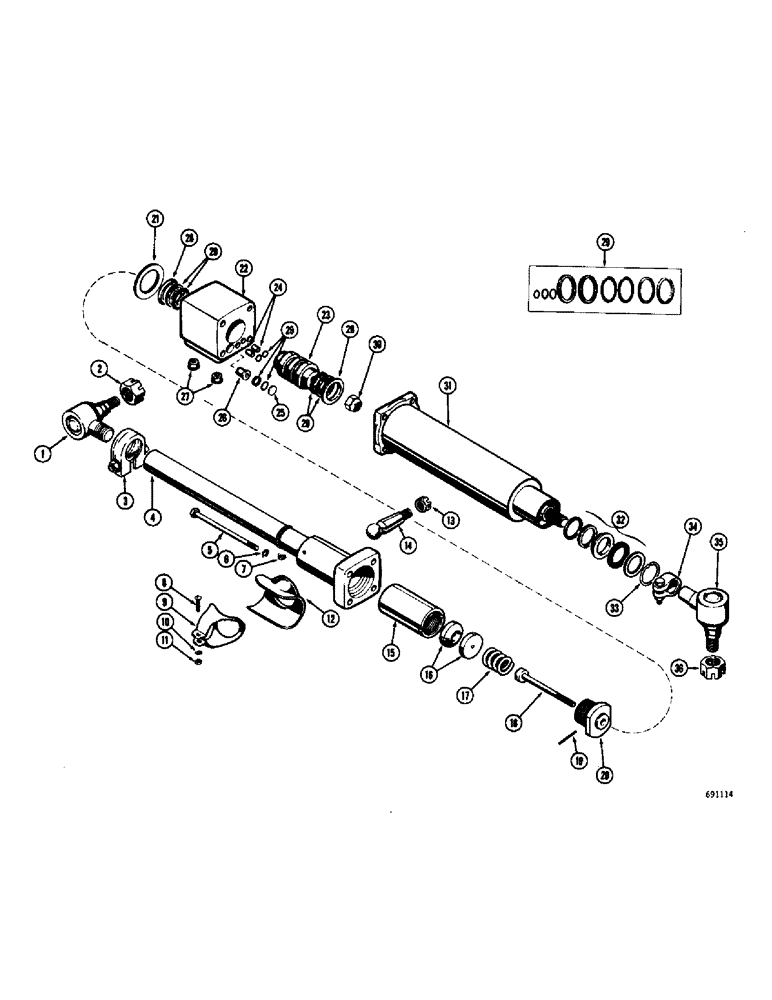

A18961
CYLINDER
ASSEMBLY - power steering, Includes: Ref. 1 - 36
1шт.
1
A15217
END
BALL END - steering cylinder, closed end, Includes: Ref. 2
1шт.
2
25-1314
SLOTTED NUT,7/8"-14, G5
NUT - hex., slotted (7/8" - 14 NF)
1шт.
3
A15218
CLAMP
- ball end to cylinder, closed end
1шт.
4
A19901
CLOTHING, JUMPER
SLEEVE - extension, cylinder
1шт.
5
16-676
BOLT (SPREADER)
HHCS - 3/8" - 24 NF x 4-3/4"
4шт.
6
92-6
LOCK WASHER,3/8"
4шт.
7
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
9
A15220
CLAMP
- dust cover
1шт.
10
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
11
129-7
NUT,Hex, #10 - 24
- hex. (#10 - 24 NC)
1шт.
12
A15223
COVER
- dust
1шт.
13
25-1912
SLOTTED NUT,3/4"-16, G5, Thk
NUT - hex., slotted (3/4" - 16 NF)
1шт.
14
A15225
STUD
- ball, pivotal
1шт.
15
A15230
SLEEVE
- inner, extension
1шт.
16
A15226
SEAT
- ball stud
2шт.
17
A15227
SPRING
- ball stud
1шт.
18
A15222
BOLT (SPREADER)
BOLT - valve, Serial Range: spool-cap
1шт.
19
A15224
AXLE PIN
PIN - lock, spool, Serial Range: bolt-cap
1шт.
20
A15228
SCREW
CAP - spring retainer
1шт.
21
A16788
PLATE
- valve housing to sleeve flange
1шт.
A16786
HOUSING
AND SPOOL - valve, Includes: Ref. 22 and 23
1шт.
22
NSS
NOT SOLD SEPARAT
HOUSING - valve
1шт.
23
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
24
A15235
INSERT
SLEEVE - oil passage
2шт.
25
G46121
PLUG
- check valve
1шт.
26
G45075
LOCK VALVE
VALVE - check
1шт.
27
A15233
SEAT
- fitting, flared
2шт.
28
A16753
BUSHING
- valve spool
2шт.
29
A16969
KIT
- repair, valve seal (Includes seals for valve section of cylinder)
1шт.
30
131-528
LOCK NUT,3/8"-24
NUT - hex., lock (3/8" - 24 NF)
1шт.
31
A16787
CYLINDER
- power steering
1шт.
32
A15231
KIT
- repair, cylinder seal (Includes seals for rod end of cylinder)
1шт.
33
A15894
X
SNAP RING - seal retaining
1шт.
34
A15216
CLAMP
- ball end to cylinder, rod end
1шт.
35
A15215
END
BALL END - steering cylinder, rod end, Includes: Ref. 36
1шт.
36
25-1314
SLOTTED NUT,7/8"-14, G5
NUT - hex., slotted (7/8" - 14 NF)
1шт.
Выбрано товаров: 38
