Запчасти Case W10C (100) - STEERING GEAR LINKAGE (05) - STEERING

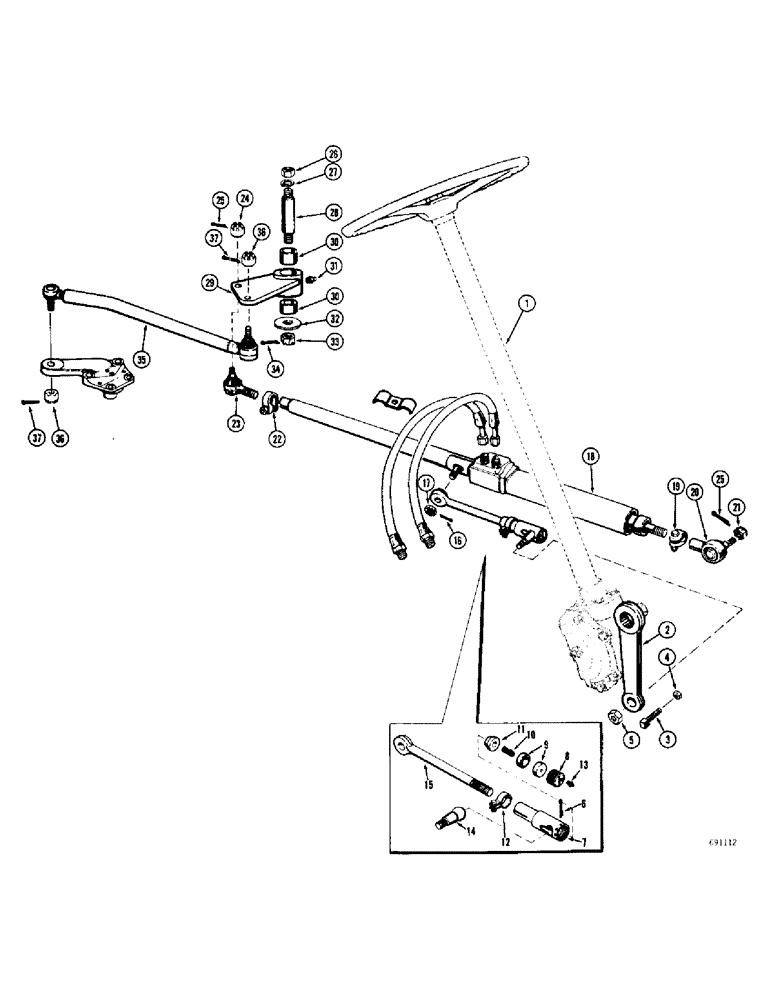

Схема запчастей Case W10C - (100) - STEERING GEAR LINKAGE (05) - STEERING

Артикул

Название

Примечание

Количество

1

A14005

GEAR WHEEL

STEERING GEAR ASSEMBLY - tractor (Parts list Figure 98)

1шт.

2

A18964

ARM

- steering

1шт.

3

86-832

SCREW - set, square head (1/2" - 20 NF x 2")

2шт.

4

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 20 NF)

2шт.

5

131-36

LOCK NUT,5/8"-18

NUT - hex., lock (5/8" - 18 NF)

1шт.

A18968

SOCKET

ASSEMBLY - steering rod, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - socket

1шт.

8

A35892

PLUG

- end, socket

1шт.

9

A35889

SEAT

- ball socket

2шт.

10

F19615

SPRING

- ball socket

1шт.

11

A35891

SEAT

- spring

1шт.

12

G45175

CLAMP

- socket to steering rod

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

14

A14009

PIN

STUD - ball socket to steering arm

1шт.

15

A18966

ROD

-, Serial Range: steering-cylinder

1шт.

16

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

A18961

CYLINDER

ASSEMBLY - power steering, Includes: Ref. 17 - 24

1шт.

17

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., slotted (3/4" - 16 NF)

1шт.

18

NSS

NOT SOLD SEPARAT

CYLINDER - power steering (Parts list Figure 104)

1шт.

19

A15216

CLAMP

- ball end to cylinder, rod end

1шт.

20

A15215

END

BALL END - steering cylinder, rod end, Includes: Ref. 21

1шт.

21

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex., slotted (7/8" - 14 NF)

1шт.

22

A15218

CLAMP

- ball end to cylinder, closed end

1шт.

23

A15217

END

BALL END - steering cylinder, closed end, Includes: Ref. 24

1шт.

24

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex., slotted (7/8" - 14 NF)

1шт.

26

25-1516

NUT,Jam, 1"-14, G5

- hex., jam (1" - 14 NF)

1шт.

27

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

28

A15762

PIN

- steering, Serial Range: lever-chassis

1шт.

29

A18970

LEVER

- intermediate steering, Includes: Ref. 30

1шт.

30

A17611

BUSHING

- steering lever

2шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

32

A15763

WASHER

- steering lever pin

1шт.

33

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

34

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

35

A18972

LINK

- steering, rear, Includes: Ref. 36

1шт.

36

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex., slotted (7/8" - 14 NF)

2шт.

25

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

37

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

6

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

Выбрано товаров: 39
