Запчасти Case W10C (086) - A15932 FRONT AND REAR LIGHTS (04) - ELECTRICAL SYSTEMS

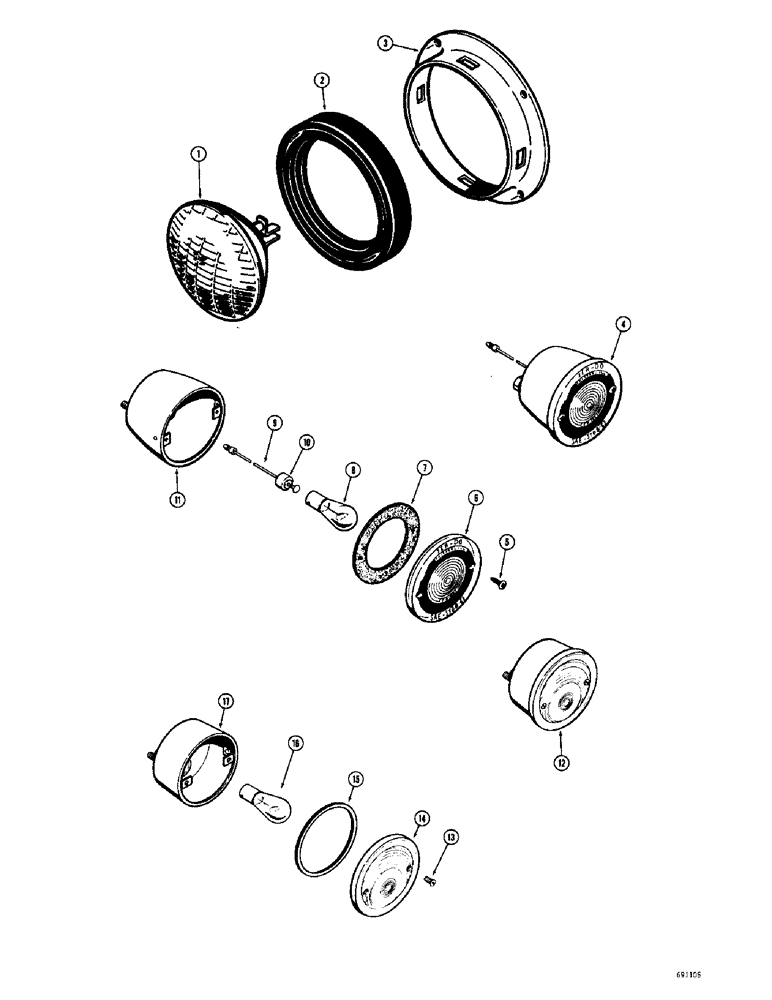

Схема запчастей Case W10C - (086) - A15932 FRONT AND REAR LIGHTS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A15932

X

LIGHT - front and rear, Includes: Ref. 1 - 3

4шт.

1

A24572

LAMP

UNIT - sealed beam, 12 volt (Includes gasket)

1шт.

2

D31441

RETAINER

RING - cover, rubber

1шт.

3

B50296

RING

BRACKET - light mounting

1шт.

4

L11000

INTERIOR LIGHT

LIGHT - stop and tail, 24 volt, Includes: Ref. 5 - 11

2шт.

5

L30432

SCREW,#8 x 5/8"

- self-tapping, Phillips head (#8)

2шт.

6

L30431

LENS

- light, red

1шт.

7

L30430

GASKET

-, Serial Range: lens-body

1шт.

8

A15084

LAMP

BULB - light, 24 volt

1шт.

9

L30429

WIRE - light, Serial Range: contact-harness

1шт.

10

L30428

SPRING - light contact

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

12

L10741

STOP LIGHT

LIGHT - stop and tail, 12 volt, Includes: Ref. 13 - 17

2шт.

13

187-1020

SCREW,Cross Hd, #8 x 3/4"

- self-tapping, Phillips head (#8)

2шт.

14

B50336

LENS

- light, red

1шт.

15

A40862

GASKET -, Serial Range: lens-body

1шт.

16

R11078

LAMP

BULB - light, 12 volt

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

Выбрано товаров: 18
