Запчасти Case W10C (076) - ELECTRICAL SYSTEM, GAS ENGINE (04) - ELECTRICAL SYSTEMS

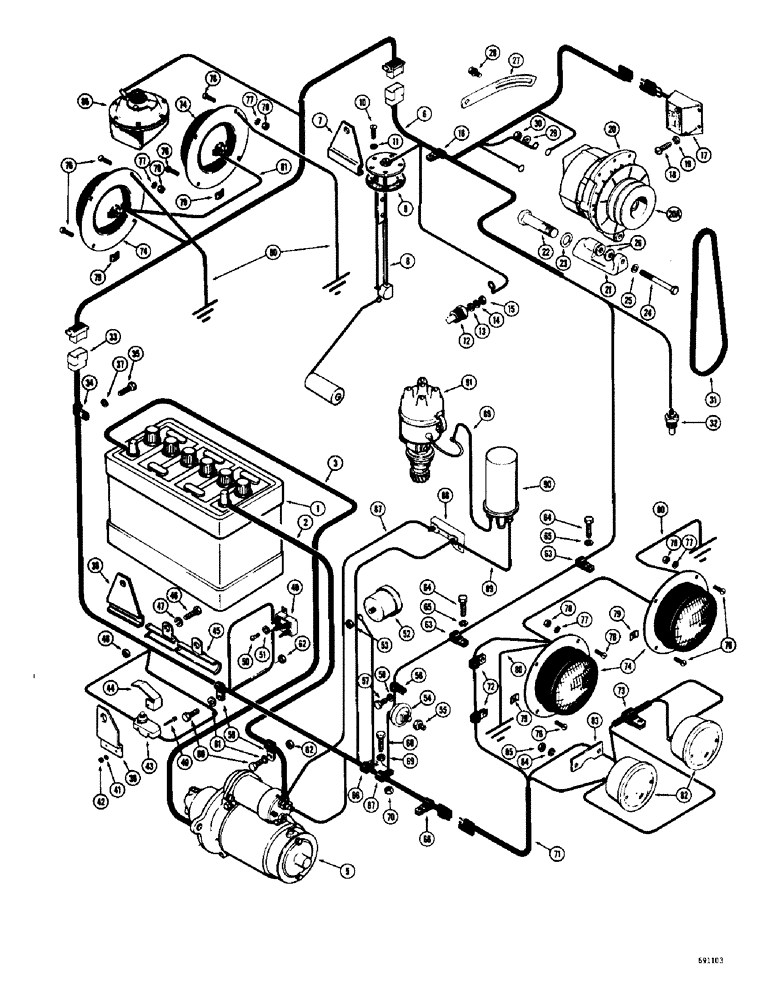

Схема запчастей Case W10C - (076) - ELECTRICAL SYSTEM, GAS ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A38411

DRY BATTERY

BATTERY - electrical, 12 volt

1шт.

2

L11392

CABLE

CABLE - positive terminal to solenoid (35" long)

1шт.

3

L11393

CABLE

CABLE - negative terminal to starter ground (36" long)

1шт.

4

L11394

CABLE - ground, engine to chassis (Not illustrated)

1шт.

5

A20633

STARTER MOTOR

STARTER - engine (Parts list Figure 54 and 56)

1шт.

5

AR20633

REMAN-STARTER

Remanufactured Starter

1шт.

5

AC20633

CORE-STARTER

Return Number

1шт.

6

L12281

HARNESS

HARNESS - wiring, R.H.

1шт.

7

L12289

CLIP

CLIP - harness to control lever mounting bolt

1шт.

8

A18869

SENDER UNIT

SENDER SENDING UNIT - fuel gauge

1шт.

9

A61161

GASKET

SPARE PART GASKET - sending unit

1шт.

10

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - machine, round head (#10 - 32 NF x 7/16") Zinc plated

5шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

12

A13795

SENDER UNIT

SENDER SENDING UNIT - converter temperature

1шт.

13

195-12

WASHER,#10

WASHER - plain () #10

1шт.

14

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

15

129-27

NUT,Hex, #10 - 32

NUT - hex. (#10 - 32 NF)

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLIP - harness to fuel tank mounting bolt

1шт.

17

L11351

REGULATOR

SPARE PART REGULATOR - voltage

1шт.

18

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

SCREW - machine, Phillips head (#10 - 24 NC x 1/2")

3шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

20

A41340

ALTERNATOR

ALTERNATOR - electrical, 55 amp. (Parts list Figure 66)

1шт.

20

104022A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

20

104022A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 55 Amp Alternator

1шт.

20a

A41057

PULLEY

PULLEY - alternator drive

1шт.

21

A34704

BRACKET

BRACKET - alternator mounting

1шт.

22

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

BOLT, Hex, 3/4"-10 x 2 3/4", G5

1шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

24

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/4", G5

1шт.

25

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

26

G49402

SHIM,.010" Thk

SHIM, , Alternator to bracket .010" Thk

2шт.

27

A56099

SPARE PART STRAP - alternator adjustment

1шт.

28

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

SCREW AND LOCKWASHER - 5/16" - 18 NC x 3/4"

1шт.

29

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

3шт.

30

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

3шт.

31

A22608

SET OF BELTS,52.00" L

Alternator drive

1шт.

32

A21462

SENDER UNIT

SENDER SENDING UNIT - engine temperature

1шт.

33

L12279

HARNESS

HARNESS - wiring, L.H.

1шт.

34

49838

CLAMP

CLIP -, Serial Range: harness-chassis

1шт.

35

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

37

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

38

L12289

CLIP

CLIP - harness to fuel shut-off mounting bolt

1шт.

39

A19514

SPARE PART BRACKET - mounting, neutral start switch

1шт.

40

173-66

SCREW,Sl Rnd Hd, #6 - 32 x 1"

SCREW - machine, round head (#6 - 32 NC x 1")

2шт.

41

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

42

129-5

NUT,#6-32

NUT, #6-32

2шт.

43

A19513

SWITCH

SWITCH - neutral start

1шт.

44

L11390

SPARE PART GUARD - neutral start switch

1шт.

45

A28674

SPARE PART C0NDUIT - harness protector

2шт.

46

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 7/8", G5, Full Thd

4шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

48

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

4шт.

49

L11343

BREAKER

CIRCUIT BREAKER - alternator

1шт.

50

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - machine, round head (#10 - 24 NC x 1/2")

2шт.

51

195-512

WASHER,#10

WASHER - plain () Zinc plated #10

2шт.

52

A35031

SENDER UNIT

SENDER SENDING UNIT - engine oil pressure

1шт.

53

129-27

NUT,Hex, #10 - 32

NUT - hex. (#10 - 32 NF)

1шт.

54

D28798

SWITCH

SWITCH - pressure, safety

1шт.

55

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

BUSHING - reducer

1шт.

56

49838

CLAMP

CLIP - switch wire

1шт.

57

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

58

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

59

49836

CLAMP

CLIP -, Serial Range: harness-chassis

2шт.

60

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

61

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

62

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

63

49836

CLAMP

CLIP -, Serial Range: harness-chassis

2шт.

64

113-316

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

BOLT, Hex, 7/16"-14 x 7/8", G5, Full Thd

2шт.

65

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

66

A22880

CLIP

CLIP - harness to grille and oil cooler mounting bolts

2шт.

67

49838

CLAMP

CLIP -, Serial Range: harness-channel

1шт.

68

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

69

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

70

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

71

L12280

HARNESS

HARNESS - wiring, rear

1шт.

71

L12280

HARNESS

HARNESS - wiring, rear

1шт.

72

A7922

CLIP

CLIP - harness to radiator support

1шт.

73

A22880

CLIP

CLIP - harness to grille mounting bolt

1шт.

74

A15932

X

LIGHT - front and rear (Parts list Figure 86)

4шт.

75

RESERVED

1шт.

76

75-412

SCREW,Rd, 1/4" x 3/4"

SCREW- machine, round head (1/4" - 20 NC x 3/4")

16шт.

77

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

78

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

4шт.

79

131-132

SPRING NUT,Tinn, U, 1/4"-20

NUT - Tinnerman (1/4" - 20 NC)

12шт.

80

A15941

ELECTRICAL WIRE

WIRE WIRE - ground, front and rear lights

4шт.

81

L11352

ELECTRICAL WIRE

WIRE WIRE - connecting, headlight

1шт.

82

L10741

STOP LIGHT

LIGHT - stop and tail (Parts list Figure 86)

2шт.

83

A16697

STRAP - light mounting

2шт.

84

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

85

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

4шт.

86

A19581

HORN

HORN - warning (Parts list Figure 88)

1шт.

87

A8743

SPARE PART WIRE - starter, Serial Range: soenoid-resistor

1шт.

88

A24504

RESISTOR

RESISTOR - electrical

1шт.

89

A28015

SPARE PART WIRE - coil to resistor and distributor

2шт.

90

A40778

COIL

COIL - electrical

1шт.

91

A34978

SPARE PART DISTRIBUTOR - electrical (Parts list Figure 62)

1шт.

Выбрано товаров: 96
