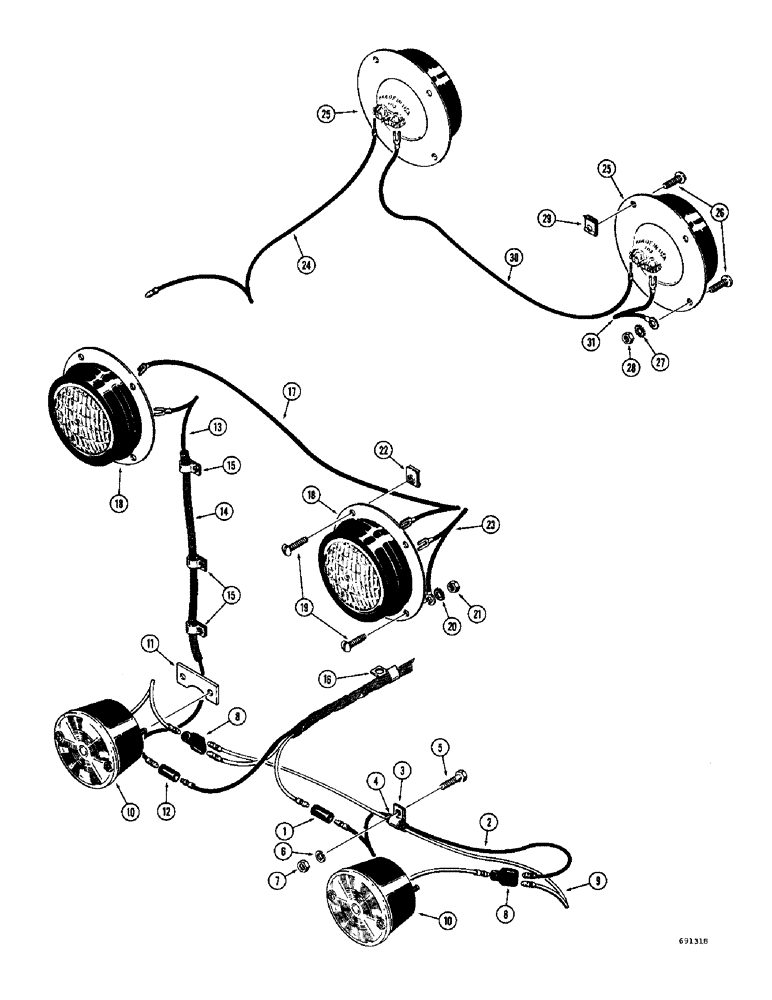

Запчасти Case W10C (071A) - ELECTRICAL SYSTEM, DIESEL ENGINE, FRONT, REAR, STOP AND TAIL LIGHT WIRING (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A27213
CONNECTOR -, Serial Range: harness-stoplights
1шт.
2
A13251
ELECTRICAL WIRE
WIRE - connecting, harness to R.H. stoplight
1шт.
3
A27814
X
CLIP - wire to radiator lower baffle
1шт.
4
A12458
SLEEVE
LOOM - wire protector
1шт.
5
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
1шт.
6
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
7
25-104
NUT,1/4"-20, G5
1шт.
8
A8210
CONNECTOR, ELEC
CONNECTOR - wire, Serial Range: stoplights-harness
2шт.
9
A13252
ELECTRICAL WIRE
WIRE - connecting, R.H. to L.H. stoplight
1шт.
10
L11000
INTERIOR LIGHT
LIGHT - stop and tail, 24 volt (Parts list Figure 86)
2шт.
11
A16697
STRAP - light mounting
2шт.
12
A27213
CONNECTOR - wire, harness to rear lights
1шт.
13
A15948
ELECTRICAL WIRE
WIRE - harness to L.H. rear light
1шт.
14
A27201
LOOM - wire protector
1шт.
15
A7922
CLIP
- wire to L.H. radiator mounting
3шт.
16
A17287
CLIP - wire to radiator mounting
1шт.
17
A16367
ELECTRICAL WIRE
WIRE - connecting, L.H. to R.H. rear light
1шт.
18
A15932
X
LIGHT - rear (Parts list Figure 86)
2шт.
19
75-412
SCREW,Rd, 1/4" x 3/4"
- machine, round head (1/4" - 20 NC x 3/4")
8шт.
20
193-57
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
1шт.
21
25-104
NUT,1/4"-20, G5
1шт.
22
131-132
SPRING NUT,Tinn, U, 1/4"-20
- Tinnerman (1/4" - 20 NC)
7шт.
23
A15941
ELECTRICAL WIRE
WIRE - ground, R.H. rear light
1шт.
24
A16366
WIRE - panel harness to L.H. front light
1шт.
25
A15932
X
LIGHT - front (Parts list Figure 86)
2шт.
26
75-412
SCREW,Rd, 1/4" x 3/4"
- machine, round head (1/4" - 20 NC x 3/4")
8шт.
27
193-57
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
1шт.
28
25-104
NUT,1/4"-20, G5
1шт.
29
131-132
SPRING NUT,Tinn, U, 1/4"-20
- Tinnerman (1/4" - 20 NC)
7шт.
30
A15940
WIRE - connecting, L.H. front light to R.H. front light
1шт.
31
A15941
ELECTRICAL WIRE
WIRE - ground, R.H. front light
1шт.
Выбрано товаров: 31
