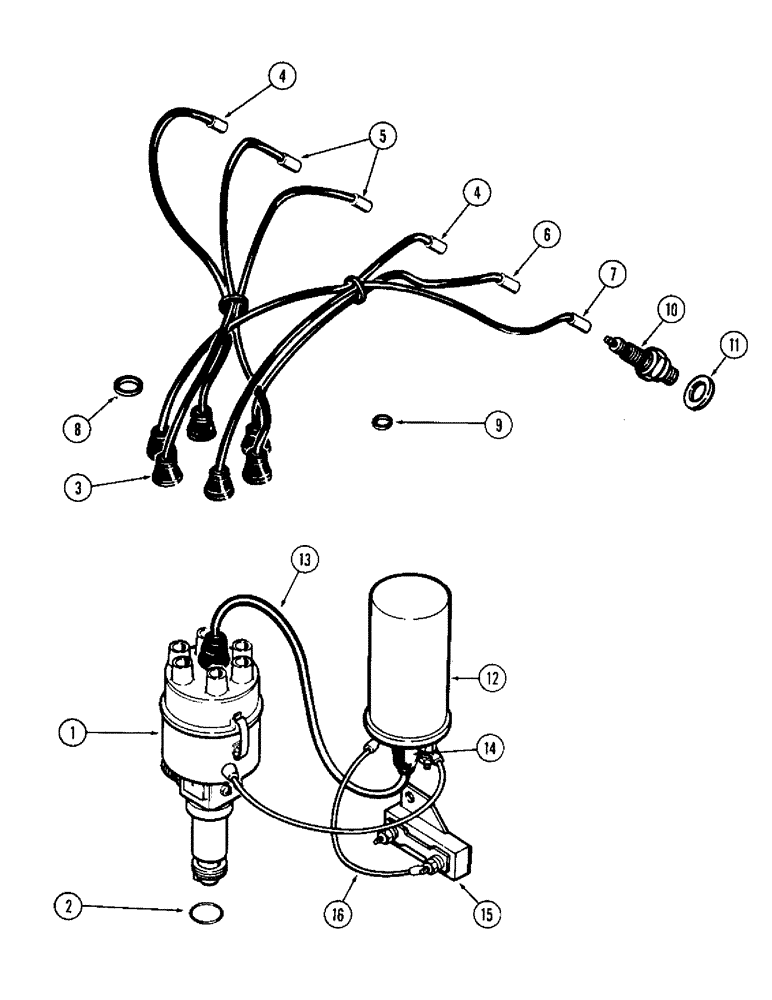

Запчасти Case W10C (060) - DISTRIBUTOR IGNITION SYSTEM, (377) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A34978

DISTRIBUTOR ASSY. - (Repairs Figure 62)

1шт.

2

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - dist. to block (1-1/8 x 1-3/8 x 1/8")

1шт.

3

A29338

COVER

NIPPLE - wire to distributor cap

7шт.

4

A20143

ELECTRICAL WIRE

WIRE - #3 & #6 spark plug (15")

2шт.

5

A20144

ELECTRICAL WIRE

WIRE - #4 & #5 spark (11")

2шт.

6

A26800

CABLE

WIRE - #2 spark plug (21-1/2")

1шт.

7

A26768

CABLE

WIRE - #1 spark plug (26-1/2")

1шт.

8

A23258

RING - harness, 6 wire (3/4" I.D. x 1-1/8" O.D. x 3/16")

1шт.

9

A20265

RING - harness, 2 wire (7/16" I.D. x 1" O.D. x 1/4")

1шт.

10

G44840

SPARK PLUG

- (18 MM), Includes: Ref. 11

6шт.

11

G46839

GASKET

- seat, spark plug

1шт.

12

A40778

COIL

- ignition

1шт.

13

A29180

CABLE

WIRE -, Serial Range: coil-distributor

1шт.

14

G46803

BOOT

NIPPLE - coil wire

1шт.

15

A24504

RESISTOR

- ballast

1шт.

16

A28015

WIRE -, Serial Range: coil-resistor

1шт.
