Запчасти Case W10C (058) - A42376 SOLENOID, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

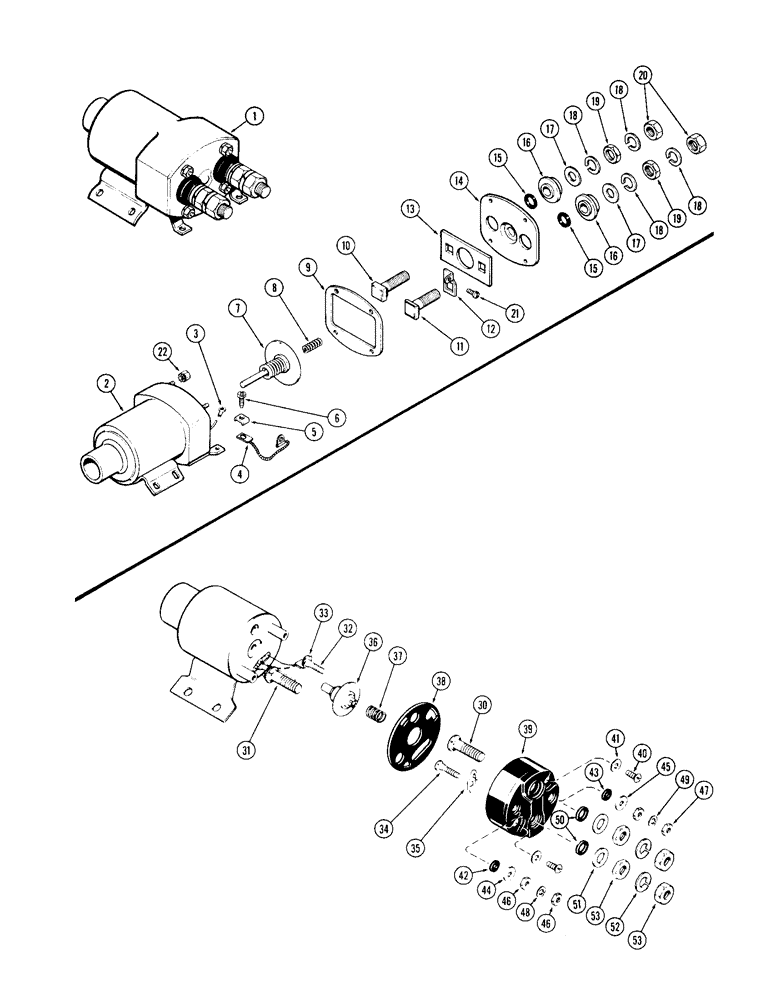

Схема запчастей Case W10C - (058) - A42376 SOLENOID, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A42376

SWITCH

SOLENOID ASSY. - starter (Delco #1119848), Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY. - w/coil (Order A42376), Includes: Ref. 3

1шт.

3

D30020

CLIP - terminal, coil lead

1шт.

4

A42408

ELECTRICAL WIRE

LEAD - ground connector

1шт.

5

A42407

CLAMP

CLIP - terminal

1шт.

6

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

1шт.

7

D32498

CONTACT

DISC ASSY. - contact

1шт.

8

A42411

VALVE SPRING

SPRING - return, disc

1шт.

9

A42260

GASKET

- terminal plate

1шт.

A42412

PLATE

ASSY. - terminal (Not shown), Includes: Ref. 10 - 20

1шт.

10

A42413

STUD

- battery terminal

1шт.

11

D32506

STUD

- starter terminal

1шт.

12

A42406

SUPPORT

- coil lead

1шт.

13

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

14

A42410

PLATE

- terminal

1шт.

15

D32510

BUSHING

- inside, term. stud

2шт.

16

A42409

BUSHING

- outside, term. stud

2шт.

17

A42404

X

WASHER - term. stud. (7/8" O.D. plain)

2шт.

18

192-113

LOCK WASHER,1/2"

WASHER - lock, std. 1/2"

4шт.

19

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

21

175-56

SCREW - coil lead, #6-32 x 3/16" truss. hd. Slotted Truss Hd, #6-32 x 3/16"

1шт.

22

D32500

NUT

- term. plate (#10-32 hex. seal type)

4шт.

A40461

IGNITION SWITCH

SOLENOID ASSY. - starter (Delco #1115510), Includes Ref 30 - 53

1шт.

30

A42087

STUD

- battery terminalA40461 solenoid (377) spark ignition engine

1шт.

31

A42089

STUD

- starter terminal,A40461 solenoid (377) spark ignition engine

1шт.

32

A42901

STUD - resistor terminal (#8-32), A40461 solenoid (377) spark ignition engine

1шт.

33

A42088

CLIP - resistor terminal, A40461 solenoid (377) spark ignition engine

1шт.

34

A42090

TERMINAL CONNECTOR

STUD - switch terminal (#10-32), A40461 solenoid (377) spark ignition engine

1шт.

35

A42060

HALF BLADE

CONTACT - switch terminal stud, A40461 solenoid (377) spark ignition engine

1шт.

36

A40692

CONTACT

ASSY., A40461 solenoid (377) spark ignition engine

1шт.

37

A42059

SPRING

- contact return, A40461 solenoid (377) spark ignition engine

1шт.

38

A42093

GASKET

- cover, A40461 solenoid (377) spark ignition engine

1шт.

39

A42316

COVER

- contact, A40461 solenoid (377) spark ignition engine

1шт.

40

A42083

SCREW - cover, A40461 soleoid (377) spark ignition engine

2шт.

41

D30018

WASHER - cover screw, A40461 solenoid (377) spark ignition engine

2шт.

42

A42086

WASHER - insulation, resistor terminal, A40461 solenoid (377) spark ignition engine

1шт.

43

A42084

INSULATOR

WASHER - insulation, switch terminal, A40461 solenoid (377) spark ignition engine

1шт.

44

A42082

WASHER - plain, resistor terminal, A40461 solenoid (377) spark ignition engine

2шт.

45

R16177

WASHER

- plain, switch terminal, A40461 solenoid (377) spark ignition engine

2шт.

46

129-16

NUT,#8-32

Resistor terminal, A40461 solenoid (377) spark ignition engine #8-32

2шт.

47

129-77

NUT,Sq, #10-32

- switch terminal (#10-32 hex.), A40461 solenoid (377) spark ignition engine

2шт.

48

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, , A40461 solenoid (377) spark ignition engine #8

2шт.

49

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , A40461 solenoid (377) spark ignition engine #10

2шт.

50

A42085

BUSHING

WASHER - insulation (3/8" stud), A40461 solenoid (377) spark ignition engine

2шт.

51

R15013

WASHER

- plain (3/8" stud), A40461 solenoid (377) spark ignition engine

2шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Terminal stud, A40461 solenoid (377) spark ignition engine 3/8"

2шт.

53

87016560

JAM NUT,Jam, 3/8"-16, G5

Terminal, A40461 solenoid (377) spark ignition engine Jam, 3/8"-16, G5

4шт.

Выбрано товаров: 48
