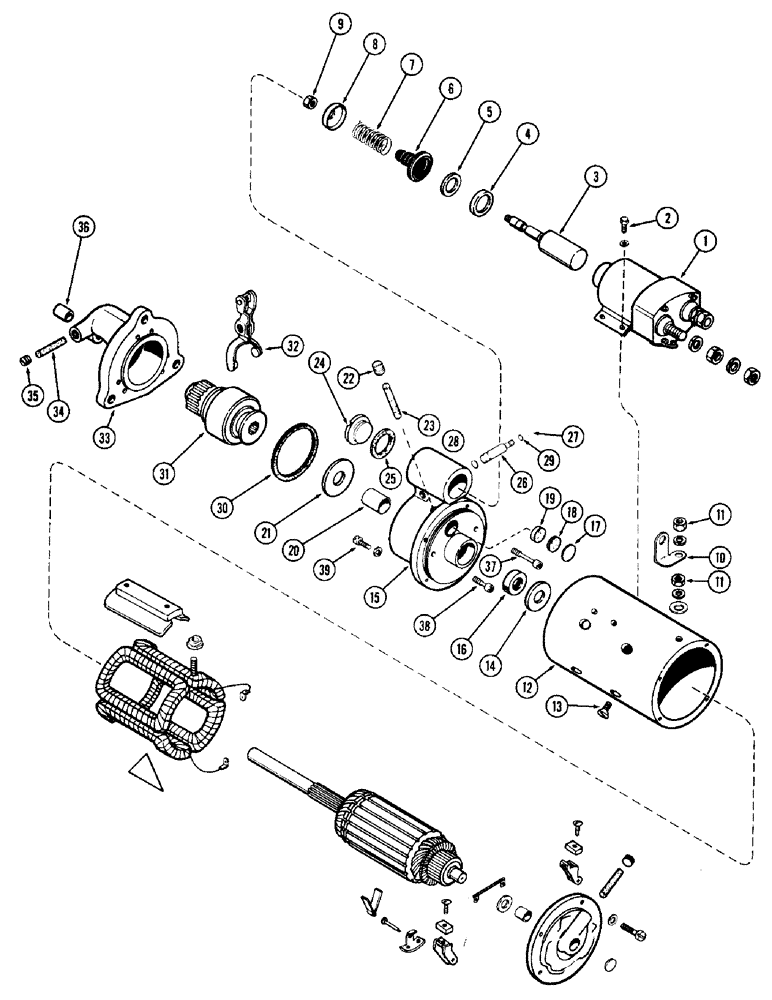

Запчасти Case W10C (050) - A15485 STARTER, (401) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

MOTOR ASSY. - starter (Delco-#1113370), Includes: Ref. 1 - 39 and Ref. 40 - 67 on Figure 52

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

1

A42376

SWITCH

SWITCH ASSY. - solenoid (Repairs Figure 58)

1шт.

2

R15139

WASHER

SPARE PART BOLT -, Serial Range: solenoid-starter

4шт.

3

A42309

PLUNGER

PLUNGER - solenoid

1шт.

4

R21572

RETAINER

RETAINER - plunger spring

1шт.

5

A42063

WASHER - retainer

1шт.

6

A42308

BOOT

BOOT - plunger

1шт.

7

A41242

SPRING

SPRING - plunger

1шт.

8

R21571

RETAINER

RETAINER - spring

1шт.

9

131-31

LOCK NUT,5/16"-24, G8

NUT - adjusting, 5/16" N.F. Nylock

1шт.

10

D32480

SPARE PART CONNECTOR - switch to field terminal

1шт.

11

R15014

NUT

NUT -, Serial Range: connector-terminal

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - armature (Order A15485)

1шт.

13

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - shoe, 3/8 x 5/8" N.F. flat hd

8шт.

14

R21583

WASHER

WASHER - spacer, armature

1шт.

15

R21579

HOUSING

HOUSING ASSY. - shift lever, Includes: Ref. 16 - 23

1шт.

16

R21582

OIL SEAL

SEAL - oil, lever housing

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - expansion

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - plug

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - inner

1шт.

20

R21580

BUSHING

BUSHING - lever housing

1шт.

21

R15145

DISC

WASHER - brake

1шт.

22

222-1041

PLUG - pipe, 1/8" slotted hd.

1шт.

23

R15023

WICK

WICK - oil

1шт.

24

R21587

PLUG

PLUG - screw, lever housing

1шт.

25

A41924

GASKET

GASKET - plug

1шт.

26

A42199

PIN

STUD - shift lever

1шт.

27

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud #37, Ext

1шт.

28

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - lever stud (Large)

1шт.

29

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - lever stud (Small)

1шт.

30

R21562

GASKET

GASKET - lever housing to drive housing

1шт.

31

A42397

DRIVE

DRIVE ASSY. - starter

1шт.

32

A32547

SPARE PART LEVER - shift, drive assy

1шт.

33

A40283

HOUSING

HOUSING ASSY. - starter drive, Includes: Ref. 34 and 35

1шт.

34

R15023

WICK

WICK - oil

1шт.

35

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

36

A40893

BUSHING

BUSHING - armature shaft

1шт.

37

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive housing (long)

1шт.

38

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing (short)

1шт.

39

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Lever housing Hex, 1/4"-28 x 1", G5

4шт.
