Запчасти Case W10C (049A) - A32617 CARBURETOR, WITH OIL BATH AIR CLEANER, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

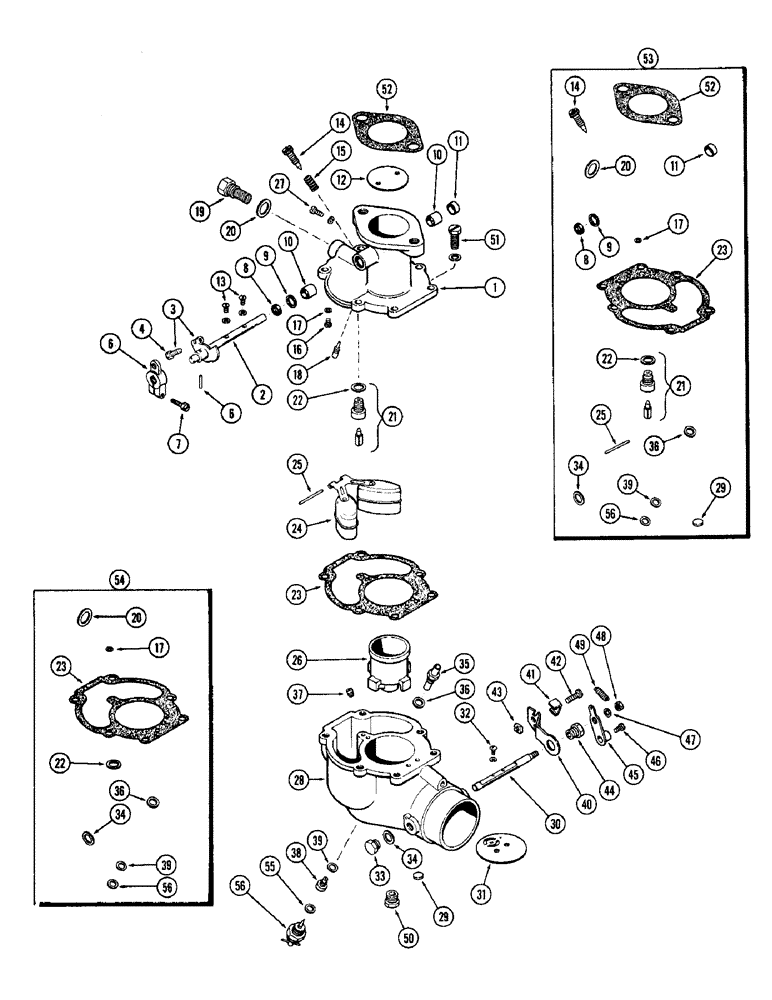

Схема запчастей Case W10C - (049A) - A32617 CARBURETOR, WITH OIL BATH AIR CLEANER, (377) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A32617

CARBURETOR ASSY. - (Zenith #624J12), Includes: Ref. 1 - 51

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - throttle (Order A32617)

1шт.

2

A40244

SHAFT

- throttle

1шт.

3

B51508

LEVER ASSY. - stop, throttle shaft, Includes: Ref. 4

1шт.

4

B51581

SCREW - adjusting, idler speed

1шт.

5

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Lever to shaft 3/32" x 7/16", Slotted

1шт.

6

A40010

LEVER - clamp, throttle rod

1шт.

7

B51584

SCREW - clamp

1шт.

8

A40008

RETAINER - seal, throttle shaft

1шт.

Part of repair kit P/N A24905

1шт.

9

A40007

SEAL

- throttle shaft

1шт.

Part of repair kit P/N A24905

1шт.

10

B51497

BUSHING

- throttle shaft

2шт.

11

B51438

PLUG

- throttle shaft hole

1шт.

Part of repair kit P/N A24905

1шт.

12

A41359

PLATE - throttle

1шт.

13

A24888

SCREW - plate to throttle shaft

2шт.

14

B51263

SCREW

NEEDLE - idle adjusting

1шт.

Part of repair kit P/N A24905

1шт.

15

B51407

SPRING

- idle adjusting needle

1шт.

16

A24903

JET - economizer

1шт.

17

B51610

WASHER

- economizer jet (See ref. 54)

1шт.

Part of repair kit P/N A24905

1шт.

18

B51301

JET

- idle

1шт.

19

B51485

FILTER - connector, fuel inlet

1шт.

20

B51614

WASHER

- filter (See ref. 54)

1шт.

Part of repair kit P/N A24905

1шт.

21

A25577

VALVE

ASSY. - fuel, Includes: Ref. 22

1шт.

Part of repair kit P/N A24905

1шт.

22

B51618

WASHER

GASKET - fuel valve (See ref. 54)

1шт.

Part of repair kit P/N A24905

1шт.

23

A24889

GASKET

- body to bowl (See ref. 54)

1шт.

Part of repair kit P/N A24905

1шт.

24

A24891

FLOAT

- fuel bowl

1шт.

25

B51429

AXLE

- float pivot

1шт.

Part of repair kit P/N A24905

1шт.

26

A24898

VENTURI

1шт.

27

B51631

SCREW - venturi

1шт.

28

A24892

BOWL - fuel, Includes: Ref. 29

1шт.

29

B51442

FILTER

DISC - bowl drain

1шт.

Part of repair kit P/N A24905

1шт.

30

A24894

SHAFT - choke

1шт.

31

A24893

PLATE - choke

1шт.

32

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

33

B51449

PLUG

- choke shaft hole

1шт.

34

B51618

WASHER

- plug (see ref. 54)

1шт.

Part of repair kit P/N A24905

1шт.

35

A24900

JET - main discharge

1шт.

36

A24901

WASHER - discharge jet (See ref. 54)

1шт.

Part of repair kit P/N A24905

1шт.

37

A24902

VENT - well

1шт.

38

A24899

JET

- main

1шт.

39

B51624

WASHER

- main jet (See ref. 54)

1шт.

Part of repair kit P/N A24905

1шт.

40

B51398

BRACKET ASSY. - choke, Includes: Ref. 41 - 43

1шт.

41

B51402

CLAMP - choke cable

1шт.

42

B51581

SCREW - clamp

1шт.

43

129-76

SQUARE NUT,#8 - 36

- clamp screw (#8-24 sq.)

1шт.

44

B51455

SCREW - choke bracket

1шт.

45

B51379

LEVER - choke, Includes: Ref. 46

1шт.

46

B51579

SCREW - swivel

1шт.

47

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

48

129-36

NUT,#8-36

- choke lever ( hex.) #8-36

1шт.

49

B51414

SPRING - return, choke lever

1шт.

50

B51541

PLUG

- bowl drain

1шт.

51

A24890

SCREW -, Serial Range: bowl-body

6шт.

52

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of repair kit P/N A24905

1шт.

53

A24905

KIT

REPAIR KIT - Includes: Ref. 8, 9, 11, 14, 17, 20, 21, 22, 23, 25, 29, 34, 36, 39, 52, 54 and 56

1шт.

54

A24904

KIT

GASKET KIT - carburetor

1шт.

Part of repair kit P/N A24905

1шт.

55

A24897

JET

ADJUSTMENT ASSY. - main jet

1шт.

56

B51614

WASHER

- adjustment assy.

1шт.

Part of repair kit P/N A24905

1шт.
