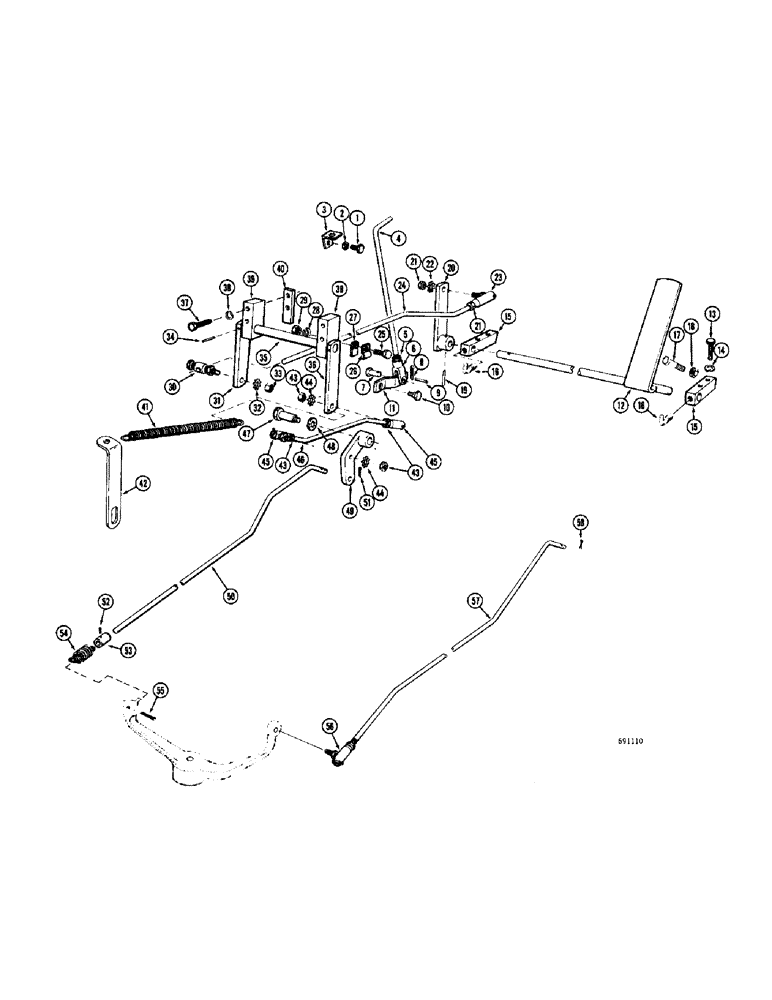

Запчасти Case W10C (096) - THROTTLE CONTROL LINKAGE, GAS ENGINE (02) - ENGINE

1

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

2

92-5

LOCK WASHER,5/16"

1шт.

3

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

CLIP - rod, fuel shutoff

1шт.

4

A17253

ROD

- fuel shutoff

1шт.

5

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

6

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - rod (1/4")

1шт.

7

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

1шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

9

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

10

A8018

STEP BOLT

STUD - fuel shutoff lever

1шт.

11

A12421

LEVER

- stop, foot throttle

1шт.

12

A19103

SHAFT

THROTTLE AND SHAFT - foot control

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

A17249

SUPPORT

- throttle cross shaft

2шт.

16

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

19

135-341

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, , Lever 3/16" x 1", Type F

1шт.

20

A17250

SUPPORT

LEVER - foot throttle

1шт.

21

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

2шт.

22

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

23

A19105

BALL JOINT

- throttle rod

1шт.

24

A19106

ROD - throttle, front

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

26

A12031

CLIP - retaining, rod to side plate

1шт.

27

A17255

SPACER - retaining clip

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

29

25-106

NUT,3/8"-16, G5

- hex. (5/16" - 18 NC)

1шт.

30

A12505

BALL JOINT

JOINT - swivel, throttle connector

1шт.

31

A19113

LEVER - throttle, rear (Outer)

1шт.

32

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

33

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

34

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

2шт.

35

A19109

SHAFT - cross, throttle lever

1шт.

36

A19112

LEVER - throttle, rear (Inner)

1шт.

37

13-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

HHCS - 1/4" - 20 NC x 1-5/8"

4шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

39

A19110

SUPPORT - cross shaft, rear throttle

2шт.

40

A19111

SPACER - cross shaft support

2шт.

41

A22619

SPRING

- return, throttle

1шт.

42

A19959

BRACKET - retaining, throttle spring

1шт.

43

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

4шт.

44

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

45

A10329

BALL JOINT,1/4" - 28 x 1"

- rear throttle rod

2шт.

46

A19107

ROD - throttle control, rear

1шт.

47

A15213

BOLT - retaining, throttle lever

1шт.

48

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

49

A16507

LEVER - throttle control

1шт.

50

A24553

ROD - throttle, Serial Range: lever-governor

1шт.

51

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

52

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, hex. socket head (1/4" - 20 NC x 1/4")

1шт.

53

A20846

COLLAR

- throttle rod

1шт.

54

A20868

SPRING

- governor

1шт.

55

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

56

A10326

BALL JOINT

- governor to carburetor rod

1шт.

57

A21306

ROD -, Serial Range: governor-carburetor

1шт.

58

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
