Запчасти Case W10C (090) - DRY TYPE AIR CLEANER, DIESEL ENGINE (02) - ENGINE

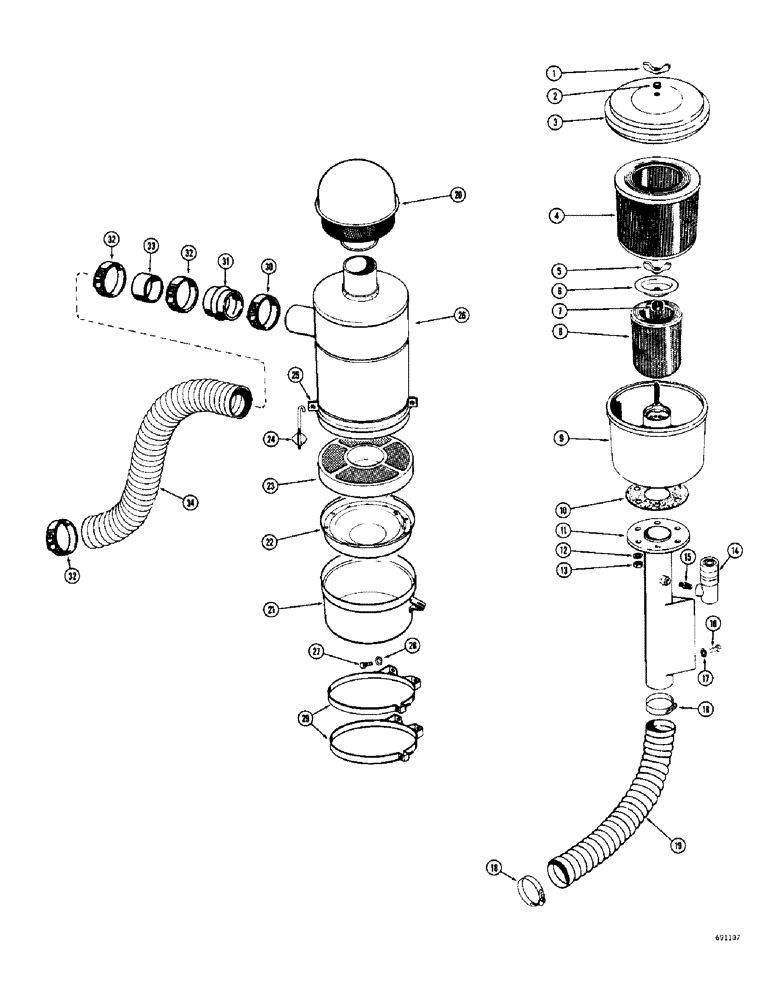

Схема запчастей Case W10C - (090) - DRY TYPE AIR CLEANER, DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

A17650

FILTER

AIR CLEANER - dry type, Includes: Ref. 1 - 10

1шт.

1

A17745

NUT

NUT - wing, cover retainer

1шт.

2

A17744

GROMMET

- cover sealing

1шт.

3

A17743

X

COVER - air cleaner body

1шт.

4

A17741

AIR CLEANER

ELEMENT - filter, outer

1шт.

5

A17746

NUT

- wing, element retainer

1шт.

6

A17747

PLATE ASSY.

COVER - inner filter element

1шт.

7

A17748

GASKET

- filter element

1шт.

8

A17742

AIR CLEANER

ELEMENT - filter, inner

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

10

A17749

GASKET

- air cleaner, Serial Range: body-bracket

1шт.

11

A19093

TUBE AND BRACKET - mounting, air cleaner

1шт.

12

92-5

LOCK WASHER,5/16"

6шт.

13

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

6шт.

14

A17652

ELECTRICAL GAUGE

GAUGE - warning, air cleaner

1шт.

15

D36264

FITTING

ADAPTER - filtered, Serial Range: gauge-bracket

1шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose to bracket and manifold

2шт.

19

L42549

INTAKE AIR HOSE,3.50" ID x 20.25"

Mounting Bracket to Intake Manifold 3.50" ID x 20.25"

1шт.

20

A16575

PRESCREENER

PRE - SCREENER - air cleaner

1шт.

A56302

AIR CLEANER

- oil bath, Includes: Ref. 21 - 26

1шт.

21

A55770

CUP - oil, outer

1шт.

22

A55769

CUP

BAFFLE - oil, inner

1шт.

23

A55768

SPARE PART

ELEMENT - filter

1шт.

24

A55771

HARDWARE

BOLT AND WING NUT - cut retaining

2шт.

25

NSS

NOT SOLD SEPARAT

BAND - oil cup to filter body

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

27

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

A16574

BAND

CLAMP - air cleaner mounting

2шт.

30

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - cleaner outled to adapter

1шт.

31

A56303

ADAPTER - cleaner, Serial Range: outlet-tube

1шт.

32

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adapter to tube and tube to manifold hose

3шт.

33

A56304

TUBE

- adapter to manifold hose

1шт.

34

A56305

HOSE

- tube to intake manifold

1шт.

Выбрано товаров: 36
