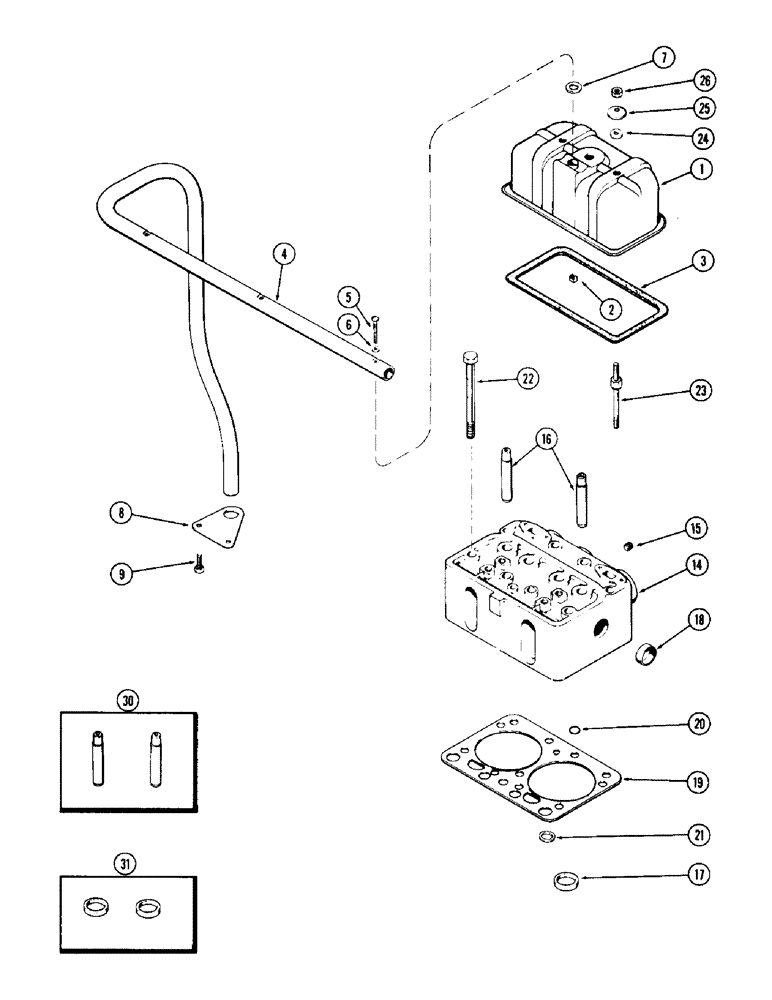

Запчасти Case W10C (032) - CYLINDER HEAD AND COVER, (377) SPARK IGNITION ENGINE (02) - ENGINE

1

A23681

COVER ASSY

. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube (1/4' N.C. speed)

1шт.

3

A57595

CYLINDER HEAD GASKET

-, Serial Range: cover-head

3шт.

4

A24184

TUBE

- breather

1шт.

5

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- breather tube, 1/4 x 2-1/4" N.C. rd. hd.

3шт.

6

A34133

GASKET

- screw head (9/32 x 1/2 x 3/64" fiber)

3шт.

7

A23685

GASKET

- tube to cover (11/16 x 1-1/16 x 1/16 rubber)

3шт.

8

A23686

BRACKET

- breather tube

1шт.

9

A9936

SCREW - lock, bracket (3/8 x 1-1/8" N.C. hex.)

2шт.

14

A24544

HEAD (CYLINDER)

HEAD ASSY. - cylinder (Casting no. A24543), Includes: Ref. 15 - 18

3шт.

15

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

LH side Hex Soc, 1/4"-18 NPTF

2шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 30)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 31)

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

- front & rear (1-41/64" cup type)

2шт.

19

A23118

GASKET

-, Serial Range: head-block

3шт.

20

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

3шт.

21

A7669

RING

- gasket, water passage (7/8 x 1-3/32 x 5/64")

6шт.

22

A23355

BOLT

- head to block (9/16 x 6" N.C. hex.)

27шт.

23

A57458

STUD

- cover & rocker shaft bracket (w/N.F. top thread) (Order A57990 & 25-107)

6шт.

23

A57990

STUD

- cover & rocker shaft bracket (w/N.C. top thread)

6шт.

24

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8" rubber)

6шт.

25

A23683

WASHER

- dished, cover stud (15/32 x 1-25/64 x 1/16")

6шт.

26

25-117

NUT,7/16"-20, G5

- cover, 7/16" N.F. hex. (Use w/A57458 stud)

6шт.

26

25-107

NUT,7/16"-14, G5

- cover, 7/16" N.C. hex. (Use w/A57990 stud)

6шт.

30

A21673

GUIDE

S - valve stem (Set of 2)

6шт.

31

A33453

KIT

INSERTS - exhaust valve seat (Set of 2)

3шт.
