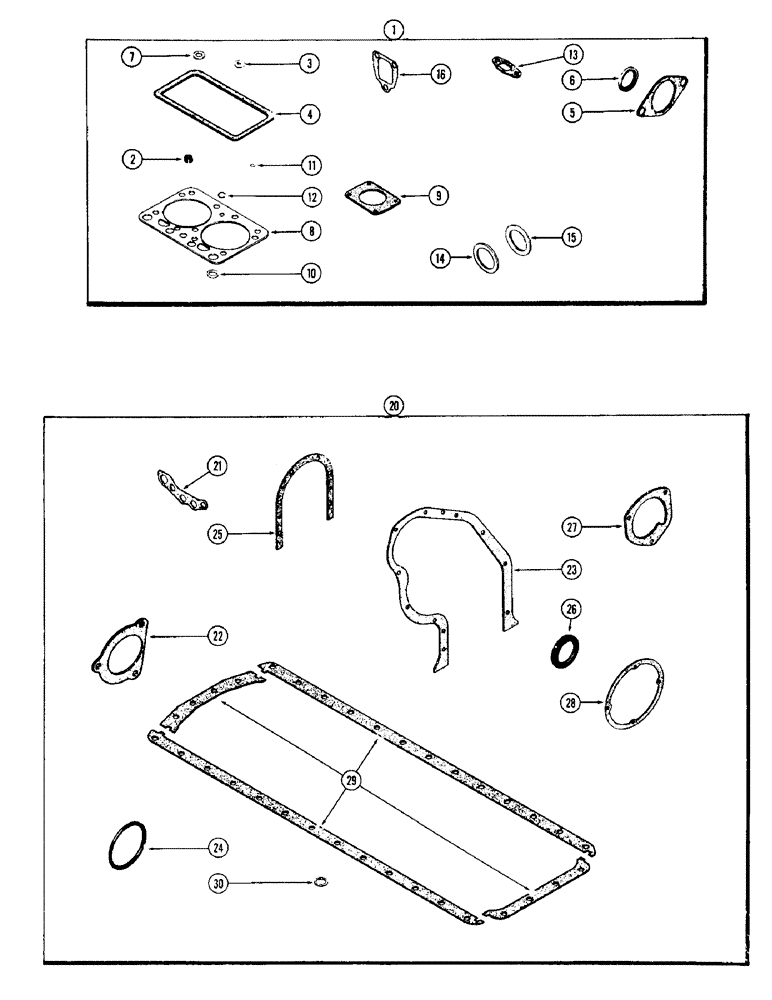

Запчасти Case W10C (024) - ENGINE GASKET KITS, (401) DIESEL ENGINE (02) - ENGINE

1

A24851

GASKET

KIT - valve grind, Includes: Ref. 2 - 16

1шт.

For complete engine overhaul order ref. 1 & 20

1шт.

2

A10726

SEAL

SHIELD - intake valve stem (Rubber)

1шт.

3

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8")

6шт.

4

A57595

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

5

A11421

GASKET

- thermostat housing

1шт.

6

A11423

SEAL

- thermostat

1шт.

7

A23685

GASKET

- breather, Serial Range: tube-cover

3шт.

8

A23118

GASKET

- cylinder head

3шт.

9

A20678

GASKET

- intake elbow

1шт.

10

A7669

RING

"O" RING - water passage (7/8 x 13/32 x 5/64")

6шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

3шт.

12

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

3шт.

13

A27905

GASKET

- water manifold

6шт.

14

A11888

MANIFOLD GASKET

- intake manifold

3шт.

15

A11889

GASKET

- exhaust manifold

6шт.

16

A22939

GASKET

- compressor housing (Not used this unit)

3шт.

20

A24994

GASKET

KIT - cylinder block, Includes: Ref. 21 - 30

1шт.

For complete engine overhaul order ref. 1 & 20

1шт.

21

A21084

GASKET

- oil filter base

1шт.

22

A27933

GASKET

- starting motor

1шт.

23

A33018

GASKET

- timing gear cover

1шт.

24

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump housing (4-1/2 x 4-3/4 x 1/8")

1шт.

25

A32830

GASKET

- oil seal retainer, rear

1шт.

26

A57342

SEAL

- oil, crankshaft front

1шт.

27

A57596

GASKET

- water pump

1шт.

28

A27867

GASKET

- timing gear cap (Not used on diesel)

1шт.

29

A15391

GASKET

SET - oil pan

1шт.

30

A58608

GASKET

- oil pan drain plug (Nylon)

1шт.
