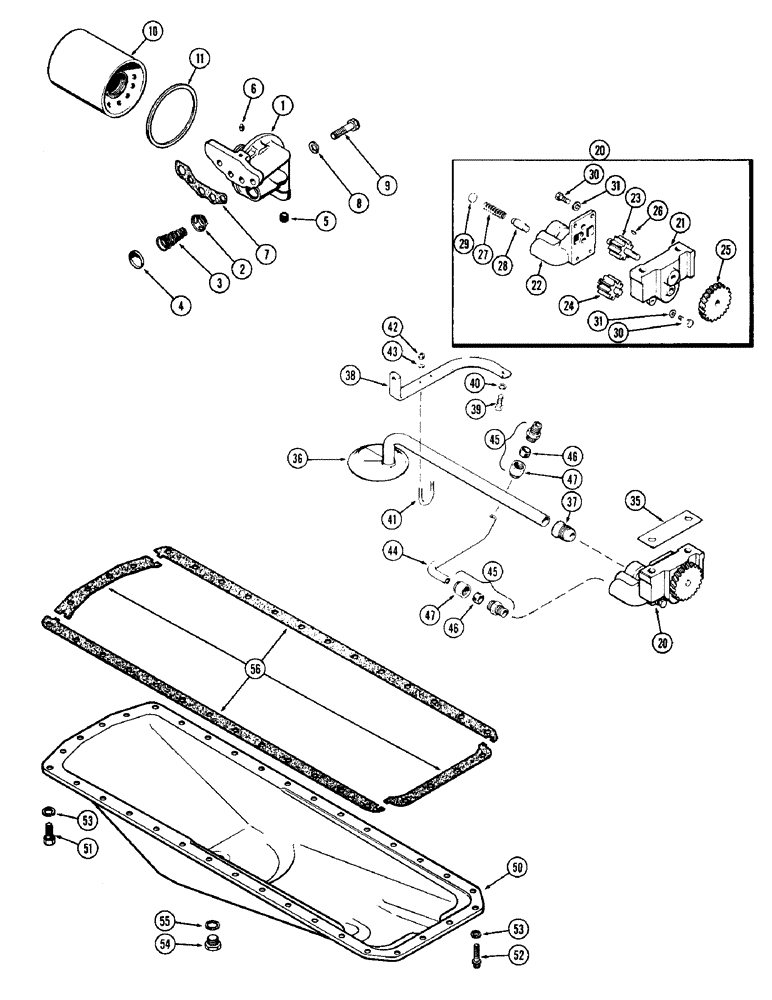

Запчасти Case W10C (022) - OIL PUMP, OIL FILTER, OIL PAN, (401) DIESEL ENGINE (02) - ENGINE

A57849

BASE

ASSY. - filter, engine oil, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter (Order A57849)

1шт.

2

A21090

VALVE

- relief

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve (1-1/4" cup type)

1шт.

5

221-1843

PLUG

- pipe, 3/8" P.T. socket hd.

1шт.

6

221-1041

PLUG

- pipe, 1/8" P.T. slotted

1шт.

7

A21084

GASKET

-, Serial Range: base-block

1шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Base Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

A41725

FILTER, ENGINE OIL

FILTER KIT - engine oil, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - oil (Order A41725)

1шт.

11

A57858

GASKET

- filter to base (4-3/4 x 5-3/16 x 13/64")

1шт.

20

A57486

PUMP

ASSY. - engine oil, Includes: Ref. 21 - 31

1шт.

21

A57487

BODY

- pump

1шт.

22

A57488

COVER

- dspump gears

1шт.

23

A34942

GEAR ASSY. - drive (w/keyway)

1шт.

24

A34945

GEAR ASSY. - driven

1шт.

25

A34947

GEAR - pump drive (21 T helical)

1шт.

26

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive gear #3, 1/8" x 1/2"

1шт.

27

A34993

RING

SPRING - relief valve

1шт.

28

A34992

PISTON

VALVE - relief

1шт.

29

A34951

X

PLUG - relief valve (45/64" cup type)

1шт.

30

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Cover Hex, 5/16"-18 x 1 1/8", G5

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

35

A57454

SHIM,.005" Thk

Pump to brg. cap .005" Thk

1шт.

35

A57455

SHIM,.010" Thk

Oil pump to brg. cap .010" Thk

1шт.

35

A57456

SHIM,.025" Thk

Oil pump to brg. cap .025" Thk

1шт.

36

A34976

SCREEN

TUBE - suction, oil pan (Includes screen assy.)

1шт.

37

222-510

TUBE NUT,1 1/4"-18

NUT - tube to pump (1" tube)

1шт.

38

A34980

BRACKET

SUPPORT - suction tube

1шт.

39

A10072

BOLT,3/8" - 16 x 3/4"

- lock, support (3/8 x 3/4" N.C. Nylok)

1шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

A34979

BOLT

"U" BOLT - suction tube clamp

1шт.

42

25-104

NUT,1/4"-20, G5

2шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

44

A57388

TUBE

-, Serial Range: pump-filter

1шт.

45

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - tube (5/8" tube x 1/2"), Includes: Ref. 46 and 47

2шт.

46

222-106

SLEEVE,5/8" Tube

- (Rubber) 5/8" Tube

1шт.

47

222-116

TUBE NUT,1"-18

NUT - 5/8" tube

1шт.

50

A34982

CASE

PAN - oil

1шт.

51

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

30шт.

52

A34929

BOLT (SPREADER)

BOLT - pan to cover (3/8 N.C. 12 pt hd.)

2шт.

53

92-6

LOCK WASHER,3/8"

32шт.

54

A14280

PLUG

- drain, oil pan

1шт.

55

A58608

GASKET

- drian plug (Nylon)

1шт.

56

A15391

GASKET

SET - oil, Serial Range: pan-block

1шт.
