Запчасти Case W10C (018) - CRANKSHAFT AND FLYWHEEL, (401) DIESEL ENGINE (02) - ENGINE

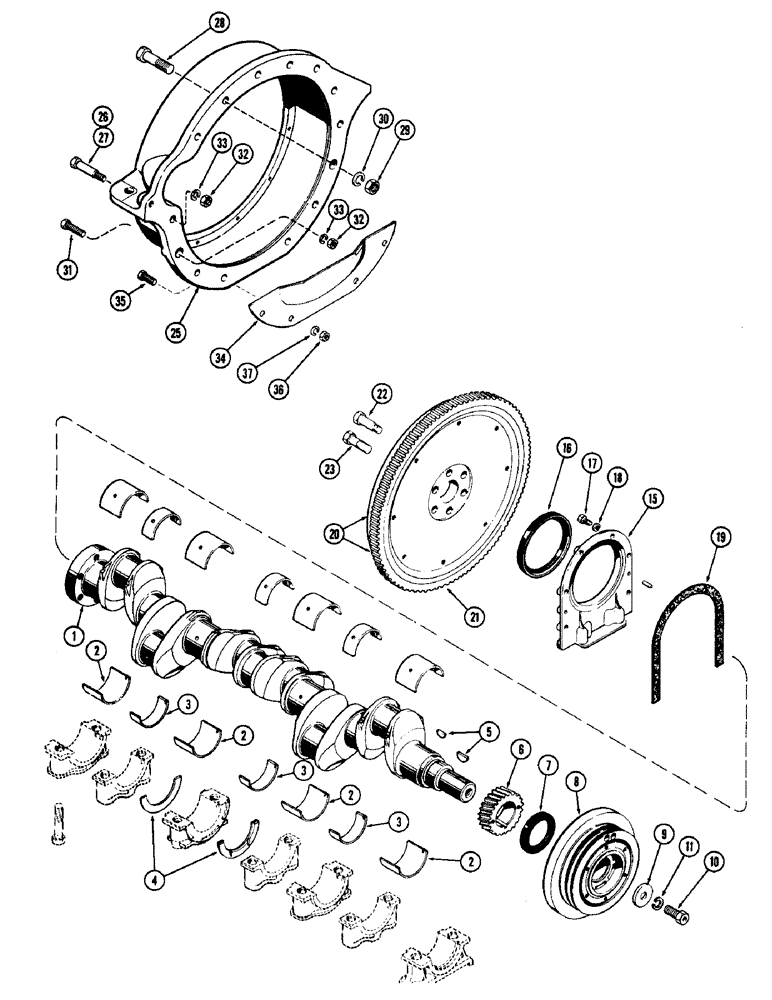

Схема запчастей Case W10C - (018) - CRANKSHAFT AND FLYWHEEL, (401) DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A24944

CRANKSHAFT

1шт.

2

A28687

LINING

LINERS - wide, crankshaft brg. (Std.)

4шт.

2

A7182

KIT

LINERS - wide, crankshaft brg. (.002" undersize)

4шт.

2

A7188

BEARING LINER

LINERS - wide, crankshaft brg. (.010" undersize)

4шт.

2

A7194

KIT

LINERS - wide, crankshaft brg. (.020" undersize)

4шт.

2

A7200

KIT

LINERS - wide, crankshaft brg. (.030" undersize)

4шт.

3

A20394

LINING

LINERS - narrow, crankshaft brg. (Std.)

3шт.

3

A20579

LINING

LINERS - narrow, crankshaft brg. (.002" undersize)

3шт.

3

A20582

LINING

LINERS - narrow, crankshaft brg. (.010" undersize)

3шт.

3

A20585

KIT

LINERS - narrow, crankshaft brg. (.020" undersize)

3шт.

3

A20588

KIT

LINERS - narrow, crankshaft brg. (.030" undersize)

3шт.

4

A27835

WASHER

- thrust, crankshaft (Std.)

2шт.

4

A7204

WASHER

- thrust, crankshaft (.006" oversize)

2шт.

5

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley to crankshaft #C, 5/16" x 1 1/8", HT

2шт.

6

A27837

GEAR

- crankshaft

1шт.

7

A57342

SEAL

- oil, crankshaft front

1шт.

8

A20744

DAMPER

PULLEY - fan & alternator drive

1шт.

9

A27903

WASHER

- pulley retaining (21/32 x 2-1/8 x 1/4")

1шт.

10

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8 x 1-1/2" N.F. hex.)

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A57457

RETAINER

- rear oil seal

1шт.

16

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

6шт.

19

A32830

GASKET

-, Serial Range: retainer-block

1шт.

20

A17491

FLYWHEEL

ASSY., Includes: Ref. 21

1шт.

21

A27920

GEAR

- ring, flywheel

1шт.

22

A11549

STEP BOLT

BOLT - shoulder, flywheel (9/16" N.F. x 1-17/32")

2шт.

23

A11550

BOLT (SPREADER)

BOLT - dowel, flywheel (5/8" N.F. x 1-1/2")

4шт.

25

A58684

HOUSING - flywheel

1шт.

26

A61040

STEP BOLT

BOLT - dowel, housing to block (1/2 x 3" N.C.)

1шт.

27

A61041

STEP BOLT

BOLT - dowel, housing to block (1/2 x 2-7/16" N.C.)

1шт.

28

A20108

BOLT - housing to block (3/4 x 2-3/4" N.F.)

2шт.

29

24-1112

NUT - 3/4" N.F. hex.

2шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

31

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

31

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- housing, 1/2 x 1-3/4" N.C. hex.

3шт.

32

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

33

92-8

LOCK WASHER,1/2"

6шт.

34

A14508

X

SHIELD - dust, flywheel

1шт.

35

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

36

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

Выбрано товаров: 43
