Запчасти Case W10C (014) - VALVE MECHANISM AND CAMSHAFT, (401) DIESEL ENGINE (02) - ENGINE

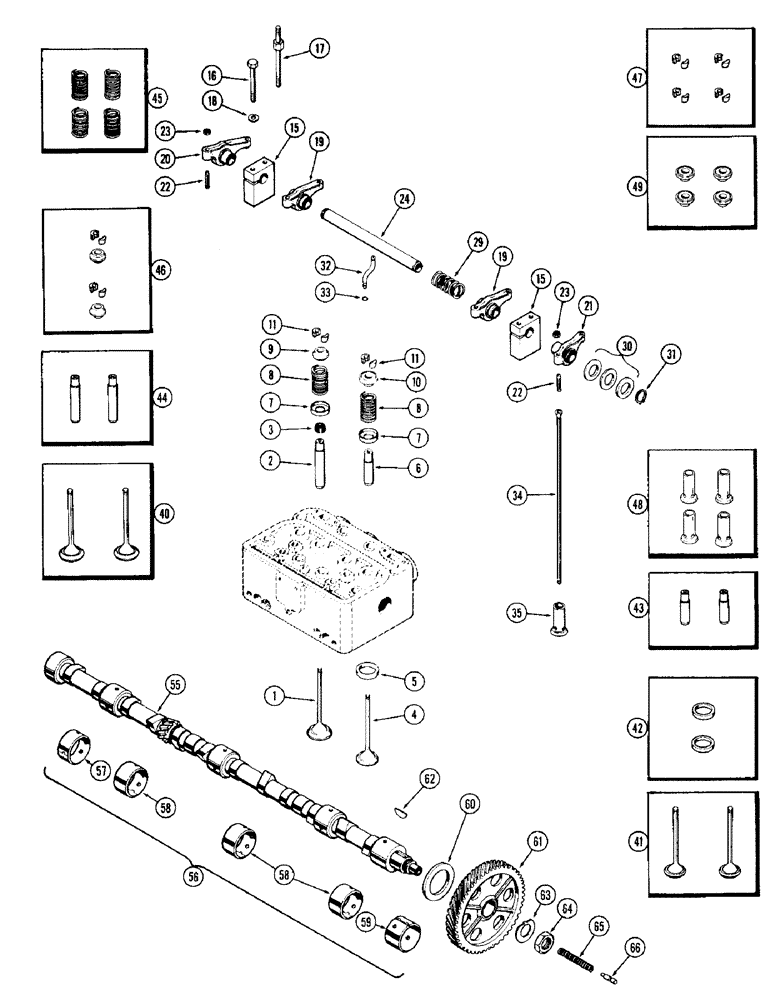

Схема запчастей Case W10C - (014) - VALVE MECHANISM AND CAMSHAFT, (401) DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 40)

1шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 44)

6шт.

3

A10726

SEAL

SHIELD - oil, intake valve

6шт.

4

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 41)

6шт.

5

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 42)

6шт.

6

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 43)

6шт.

7

A27866

SEAT

- valve spring

12шт.

8

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 45)

12шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 46)

6шт.

10

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 49)

6шт.

11

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 47)

24шт.

15

A27881

BRACKET

- rocker arm shaft

6шт.

16

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Bracket (See ref. 10 & 11 Figure 12) Hex, 7/16"-14 x 3 3/4", G5

6шт.

18

92-7

LOCK WASHER,7/16"

6шт.

19

A22322

ROCKER

ARM ASSY. - rocker, intake valve (Incl. ref. 22 & 23)

6шт.

20

A22324

ROCKER

ARM ASSY. - rocker, exhaust valve cyl. nos. 1, 3 & 5 (Includes ref. 22 & 23)

3шт.

21

A22326

ROCKER

ARM ASSY. - rocker, exhaust valve cyl. nos. 2, 4 & 6 (Includes ref. 22 & 23)

3шт.

22

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

1шт.

23

25-106

NUT,3/8"-16, G5

- adj. screw (3/8" N.F. hex jam)

1шт.

24

A57532

SHAFT

- rocker arm

3шт.

29

A27877

SPRING

- rocker arm shaft

3шт.

30

A27878

WASHER

- rocker shaft end (29/32 x 1-5/16 x 1/32")

21шт.

31

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

6шт.

32

A27879

TUBE

- oil, rocker shaft

3шт.

33

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

3шт.

34

A21060

ROD

- push

12шт.

35

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 48)

12шт.

40

A40351

KIT

VALVES - intake (Set of 2)

3шт.

41

A24770

VALVE

S - exhaust (Set of 2)

3шт.

42

A57484

INSERT

S - exhaust valve seat (Set of 2)

3шт.

43

A21674

GUIDE

S - exhaust valve (Set of 2)

3шт.

44

A21671

GUIDE

S - intake valve (Set of 2)

3шт.

45

A21694

SPRING

S - valve (Set of 4)

3шт.

46

A21657

LOCK

RETAINERS - intake valve (Set of 2 w/locks)

3шт.

47

A40352

LOCK

S - valve spring (Set of 8)

3шт.

48

A21653

KIT

LIFTERS - push rod (Set of 4)

3шт.

49

A57433

COIL

ROTO-CAPS - exhaust valve (Set of 2)

3шт.

55

A60094

CAMSHAFT

- (Replaces A34968)

1шт.

56

A23544

BUSHING

SET - camshaft, Includes: Ref. 57 - 59

1шт.

57

NSS

NOT SOLD SEPARAT

BUSHING - rear

1шт.

58

NSS

NOT SOLD SEPARAT

BUSHING - intermediate

3шт.

59

NSS

NOT SOLD SEPARAT

BUSHING - front

1шт.

60

A21017

WASHER

- thrust, camshaft

1шт.

61

A22604

GEAR

- camshaft

1шт.

62

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

63

A26444

LOCK WASHER

- lock, camshaft nut

1шт.

64

A26445

NUT

- camshaft

1шт.

65

CASA27853

SPRING

- plunger, camshaft thrust

1шт.

66

A27852

PLUNGER

- thrust, camshaft

1шт.

Выбрано товаров: 49
