Запчасти Case W10C (248) - ACCUMULATOR ATTACHMENT (08) - HYDRAULICS

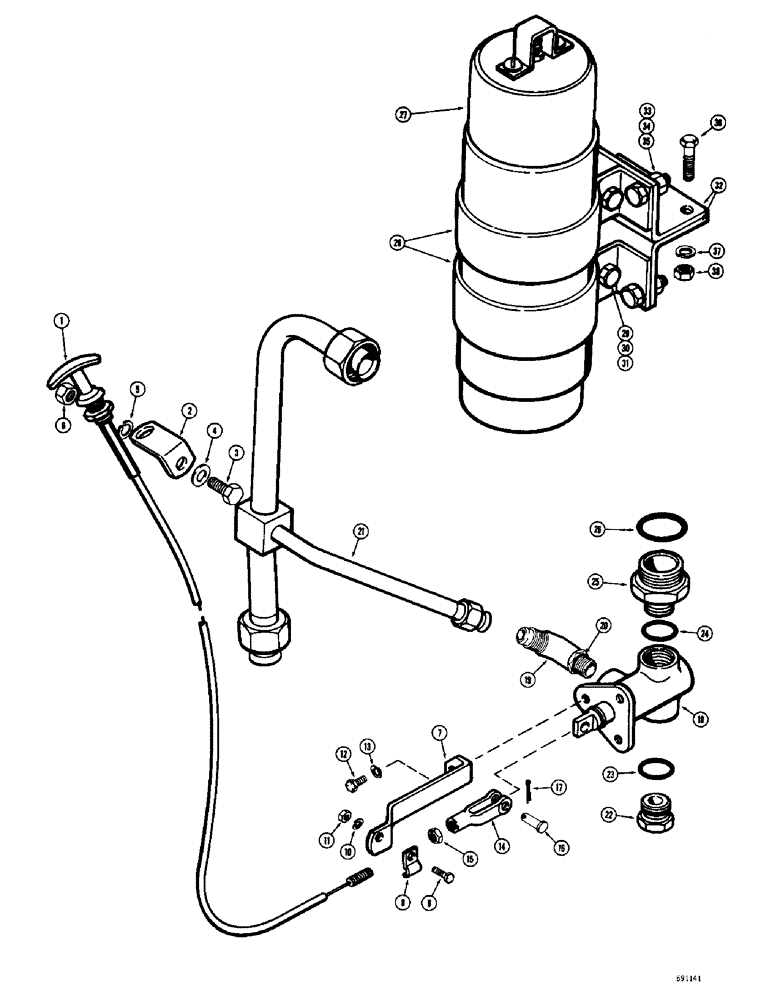

Схема запчастей Case W10C - (248) - ACCUMULATOR ATTACHMENT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

A18708

CABLE - accumulator control

1шт.

2

A18706

BRACKET - control cable, upper

1шт.

3

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

4

195-25

WASHER,3/8"

- plain () Zinc plated 3/8"

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

7

A18707

BRACKET - cable control, lower

1шт.

8

A26673

CLIP

- control cable

1шт.

9

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

25-104

NUT,1/4"-20, G5

1шт.

12

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

A56576

YOKE - control cable

1шт.

15

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16" - 18 NC)

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke end 5/16" x .940"

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

18

A13758

VALVE - accumulator (Parts list Figure 250)

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

A19932

TUBE -, Serial Range: valve-manifold

1шт.

22

A13760

X

PLUG - valve, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Small

1шт.

25

A13759

FITTING

- reducer

1шт.

26

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.

27

A13757

ACCUMULATOR - hydraulic (Parts list Figure 250)

1шт.

28

A18703

CLAMP - accumulator mounting

2шт.

29

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

32

A19931

BRACKET - accumulator mounting

2шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

34

92-5

LOCK WASHER,5/16"

4шт.

35

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

Выбрано товаров: 38
